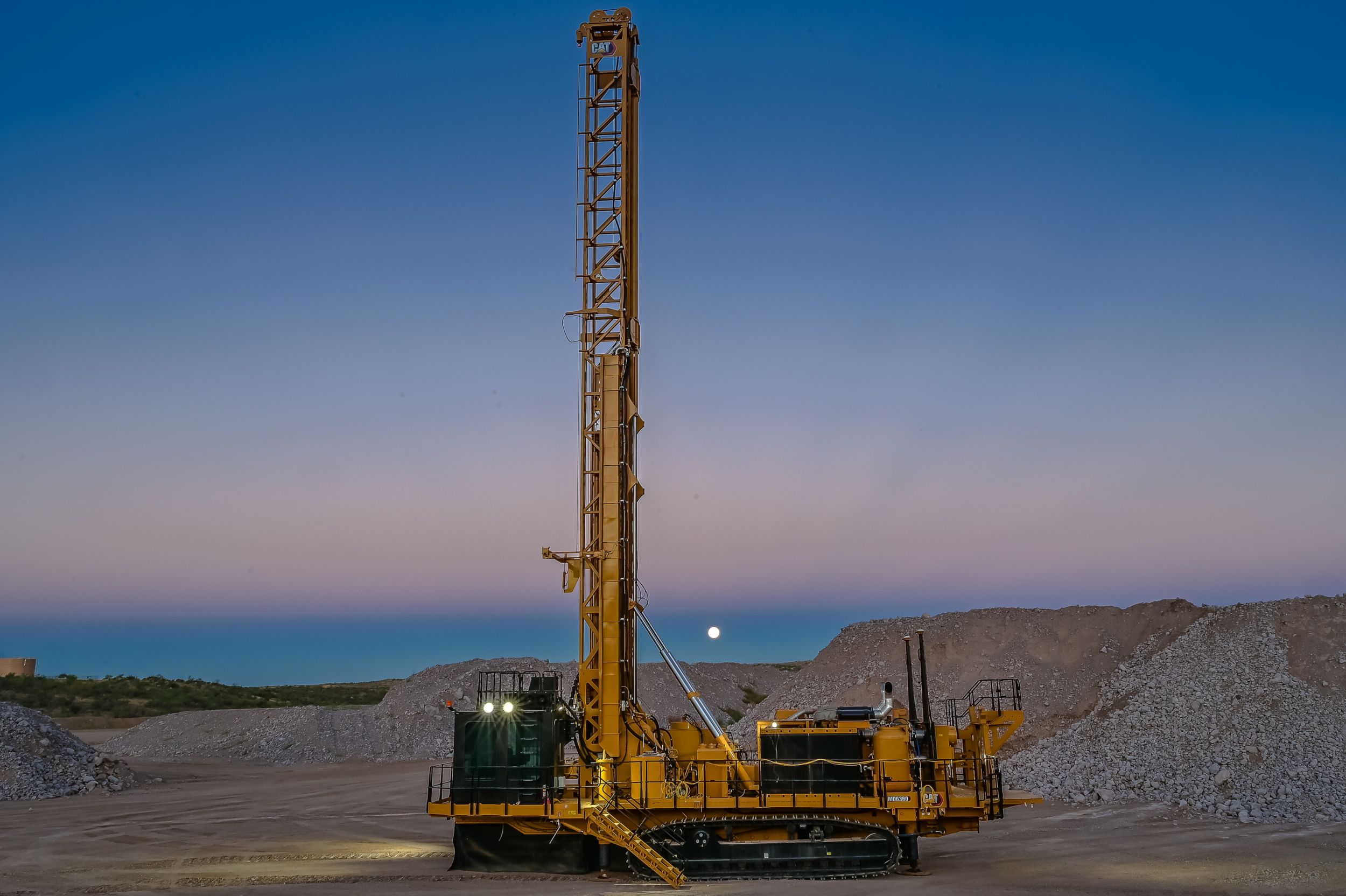

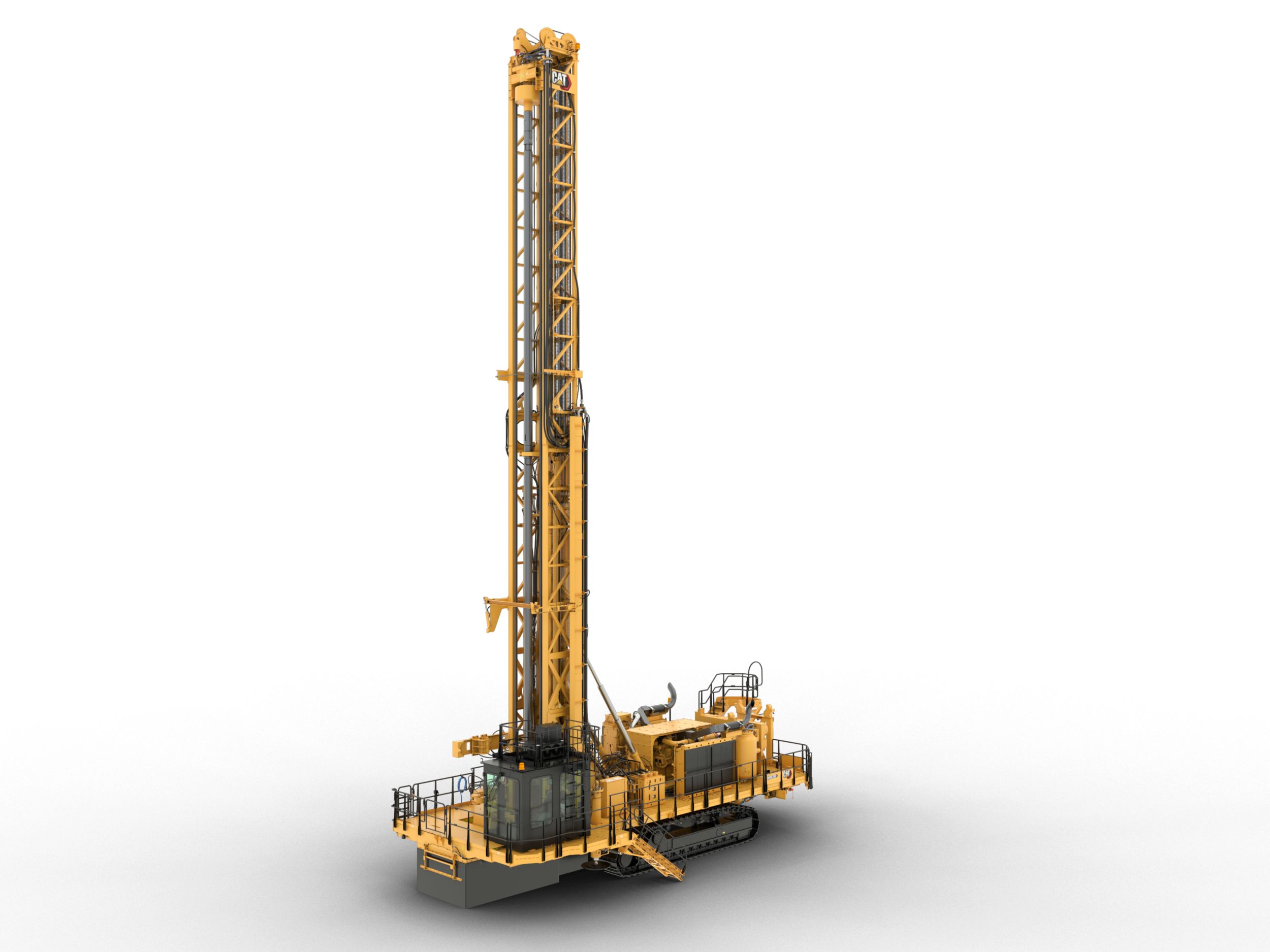

MD6380 Rotary Blasthole Drill
WORLD-CLASS OPERATOR STATION
- Ergonomic controls to help operators stay alert and avoid fatigue
- Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
- Excellent visibility, thanks to multiple cameras and full-length windows
- Optional heated and ventilated seat for enhanced operator comfort
100% CAT INTEGRATION
- Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
- Shared software for autonomous features
- Backed by the world-class support of the Cat dealer network
CAT ELECTRONICS: BACKBONE OF THE MACHINE
- Common electronic architecture across all Cat machines to ensure technician familiarity
- Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
- Serves as common platform for integrating future autonomy solutions
- Product Link™ Elite provides real-time performance tracking
MATCHED POWERTRAIN
- Variable air volume for reduced fuel consumption and powerful performance
- C27 engine matched to largest “standard” compressor in this class for fast cycle times
- Powertrain optimized to withstand rigorous drilling applications
- High and low-pressure configurations offer variable volume air control
- Optimal feed force, rotary torque and air, helping to reduce fuel consumption
TECHNOLOGY AND AUTOMATION
- Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
- Machine health and performance monitoring keep machine running productively
- Drill depth meter helps reduce over and under-drilling
- Ready to connect with the Cat MineStar™ suite of technologies, including Terrain for drilling and Command for drilling
SAFETY
- Four standard cameras give the operator excellent visibility: left, right and front view when tramming; carousel view when pipe handling; all three view simultaneously
- Exterior lighting packages have spot and flood lights positioned to illuminate paths for ingress/egress and major service points
- MineStar Command for drilling enables remote or autonomous operation, removing operator from the machine
SUSTAINABILITY
- Designed to use less fuel, which reduces engine emissions
- Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers.
- Longer maintenance intervals that decrease the amount of waste contributed to the environment.
| Pull-Down/Hoisting Capacity | |
|---|---|
| Pull-Down Capacity | Up to 49 895 kg (110,000 lb) |
| Specifications | |
|---|---|
| Hole Diameter | 251-381 mm (9.875-15 in) |
| Engine | Cat® 3512C |
| Bit Load | Up to 53 845 kg (118,719 lb) |
| Engine | |
|---|---|
| Power Rating (ISO 14396) | 949 kW (1273 hp) |
| Emissions (1) | U.S. EPA Tier 2/EU Stage II equivalent |
| Power Rating (J1995) | 960 kW (1287 hp) |
| Engine | Cat® 3512C @ 1,800 rpm |
| Compressor/Receiver Tank | |
|---|---|
| Choice | Rotary, single stage, low pressure 101.9 mu00b3/min (3,600 ftu00b3/min) @ 6.9 bar (100 psi); with low pressure receiver tank for ASME/CRN/AU or CE |
| Cooling | |
|---|---|
| Features | Functional in ambient temperature of 52u00b0 C (125u00b0 F) |
| Undercarriage | |
|---|---|
| Cat 374 EEL - Double Grousers for Hard Rock Applications | 750 mm (29.5 in) |
| Cat 374 EEL - Drawbar Pull | 980686 N·m (723316 lbf) |
| Cat 374 EEL - Double Grousers for Soft Rock Applications | 900 mm (35.4 in) |
| Hydraulics | |
|---|---|
| Components (1) | Two (2) primary pumps u2013 280 cc (piston with proportional electronic controls) |
| Components (2) | One (1) auxiliary circuit pump u2013 145 cc (piston, load sensing) |
| Components (3) | Two (2) fan pumps u2013 100 cc (piston with proportional electronic controls) |
| Components (4) | Two (2) charge pumps u2013 74 cc (fixed displacement) |
| Components (5) | Scheduled Oil Sampling (S·O·SSM) ports |
| Mast | |
|---|---|
| Note (1) | Vertical or angle drilling |
| Hole Diameter Range | 251-381 mm (9.875-15 in) |
| Pull Down Capacity Up To | 49895 kg (110000 lb) |
| Bit Load Up To | 53845 kg (118719 lb) |
| Rotation Torque Up To | 20880 N·m (15400 lbf) |
| Single Pass Hole Depth Down To | 19.8 m (65 ft) |
| Multi-Pass Hole Depth Down To | 39.5 m (129 ft) |
| Mast Accessories | |
|---|---|
| Accessory (1) | Pipe positioner (stabilizer) engaged/disengaged indicator, and interlock |
| Accessory (2) | One hydraulic pipe catcher |
| Accessory (3) | Hydraulic pipe support in the upper section of the mast |
| Pipe Loader | |
|---|---|
| Feature | LH/RH pipe racks hold 9.906 m (32.5 ft) drill pipe |
| 324 mm (12.75 in) diameter |
u2013 Single pipe rack u2013 Dust collector side only u2013 Single pass only |
| 340 mm (13.375 in) diameter |
u2013 Single pipe rack u2013 Dust collector side only u2013 Single pass only |
| 219 mm (8.625 in) diameter |
u2013 LH and RH, double pipe rack u2013 Capable of single and multi-pass u2013 Primary loader @ 29.68 m (97.4 ft) u2013 Secondary loader @ 39.59 m (129.9 ft) |
| 273 mm (10.75 in) diameter |
u2013 LH and RH, double pipe rack u2013 Capable of single and multi-pass u2013 Primary loader @ 29.68 m (97.4 ft) u2013 Secondary loader @ 39.59 m (129.9 ft) |
| 235 mm (9.25 in) diameter |
u2013 LH and RH, double pipe rack u2013 Capable of single and multi-pass u2013 Primary loader @ 29.68 m (97.4 ft) u2013 Secondary loader @ 39.59 m (129.9 ft) |
| Break Out Wrench | |
|---|---|
| Variable Grip |
u2013 219, 235, 273 mm (8.625, 9.25, 10.75 in) u2013 324, 340 mm (12.75, 13.375 in) |
| Drill Tool Package | |
|---|---|
| One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal |
u2013 219 mm (8.625 in) u2013 235 mm (9.25 in) u2013 273 mm (10.75 in) u2013 324 mm (12.75 in) u2013 340 mm (13.375 in) |
| Subs | |
|---|---|
| Shock absorber with top sub adapter - available in Standard or Premium |
u2013 219 mm (8.625 in) u2013 235 mm (9.25 in) u2013 273 mm (10.75 in) u2013 324 mm (12.75 in) u2013 340 mm (13.375 in) |
| Operator Environment | |
|---|---|
| Cab - Premium |
u2013 Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass u2013 Additional storage plus windshield wipers on front and rear windows u2013 Removable driller window guard plus front window guard and trainer seat |
| Cab - Standard | u2013 Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat |
| Fluids | |
|---|---|
| Service Package - Standard |
u2013 Fast fill fuel and water only u2013 Automated lubricant system |
| Service Package - Premium |
u2013 Service center for lubricant drain and fill u2013 Fast fill fuel and water u2013 Automated lubricant system |
| Dust Suppression | |
|---|---|
| Water Injection System | 2271 l (600 gal (US)) |
| Water Injection System, High Volume Total Tank Capacity | 5299 l (1400 gal (US)) |
| Water Injection System, High Volume Total Tank Capacity (Note 1) | 2271 L (600 gal) below deck mounted tank |
| Water Injection System (Note 1) | Tank below deck |
| Water Injection/Dry Dust Collection | 2271 l (600 gal (US)) |
| Water Injection System, High Volume Total Tank Capacity (Note 2) | 3028 L (800 gal) above deck mounted tank |
| Water Injection System (Note 2) | Fast fill |
| Water Injection/Dry Dust Collection (Note 2) | Fast fill |
| Water Injection/Dry Dust Collection (Note 1) | Tank below deck |
| Water Injection/Dry Dust Collection (Note 3) | 204 mu00b3/min (7,200 ftu00b3/min) dry dust collection |
| Water Injection System, High Volume Total Tank Capacity (Note 3) | Fast fill |
| Batteries | |
|---|---|
| Note (2) |
Six (6) each batteries, sealed u2013 Required for semi/full autonomy packages |
| Note (1) | Four (4) each batteries, sealed |
| Climate Choices | |
|---|---|
| Climate Level 1 Standard Fluids and Lubricants (1) | u2013 Temperature range of u20131u00b0 C (30u00b0 F) to 52u00b0 C (125u00b0 F) |
| Climate Level 2 Arctic Fluids and Lubricants | u2013 Temperatures down to u201318u00b0 C (u20130.4u00b0 F) |
| Automation and Technology | |
|---|---|
| Components (6) | Product Link™ |
| Components (5) | Electric controls for drilling, tramming, leveling plus auxiliary functions |
| Type (1) | Radio-ready for communication and entertainment radio |
| Type (2) | Integrated Terrain for Drilling complete with wiring and harnesses |
| Components (1) | Single pass auto drill/drill assist |
| Components (2) | Multi pass auto drill/drill assist |
| Components (3) | Drill depth meter |
| Components (4) | Auto level, auto retract jacks, auto raise and lower mast |
| Dimensions (Approximate) | |
|---|---|
| Height mast up | 26.7 m (87.6 ft) |
| Height mast down | 6.6 m (21.7 ft) |
| Length mast down | 28.3 m (92.9 ft) |
| Note | *Working Length Mast Up with bolt-on platform adds 1.2 m (4 ft) for total of 15.9 m (52.1 ft) |
| Working Width (non-drill end) | 6.06 m (19.9 ft) |
| Working Width (drill end) | 6.89 m (22.6 ft) |
| Mast Only Shipping Length | 25.24 m (82.8 ft) |
| Working Length Mast Up* | 14.7 m (48.1 ft) |
| Weights | |
|---|---|
| Mast Only | 40000 kg (88184 lb) |
| Without Mast | 102300 kg (225533 lb) |
| Working Weight Range | 142 300 kg (313,717 lb) |
Standard Equipment
- POWER TRAIN
- Receiver tank for ASME/CRN/AU or CE receiver tank
- CAB
- Standard cab
– Includes a fabric seat, single pane window glass, shades, and a windshield wiper for driller window, removable driller window guard and a trainer seat - Viewing hatch to spot over the hole
- LED lighting
- Standard cab
- CONTROLS
- Basic drill depth indicator and interlocks
- PRODUCT LINK/TERRAIN
- Product Link (Cellular)
- MAST
- No mast access/handrail only
- PIPE LOADER (SELECT ONE)
- 219 mm (8.625 in) diameter
– Two pipe rack
– Capable of single and multi-pass - 235 mm (9.25 in) diameter
– Two pipe rack
– Capable of single and multi-pass - 273 mm (10.75 in) diameter
– Two pipe rack
– Capable of single and multi-pass - 324 mm (12.75 in) diameter
– Single pipe rack
– Dust collector side only
– Single pass only - 340 mm (13.375 in) diameter
– Single pipe rack
– Dust collector side only
– Single pass only
- 219 mm (8.625 in) diameter
- TOP SUB/SHOCK SUB (SELECT ONE)
- 219 mm (8.625 in) standard
- 235 mm (9.25 in) standard
- 273 mm (10.75 in) standard
- 324 mm (12.75 in) standard
- 340 mm (13.375 in) standard
- TOOL GROUPS (SELECT ONE)
- 219 mm (8.625 in)
– One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal - 235 mm (9.25 in)
– One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal - 273 mm (10.75 in)
– One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal - 324 mm (12.75 in)
– One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal - 340 mm (13.375 in)
– One piece roller deck bushing, pipe positioner, deck wrench, bit sub, pipe wiper seal
- 219 mm (8.625 in)
- VARIABLE GRIP HYDRAULIC BREAKOUT WRENCH (SELECT ONE)
- Grip range
– 219, 235, 273 mm (8.625, 9.25, 10.75 in) - Grip range
– 324, 340 mm (12.75, 13.375 in)
- Grip range
- DRILL PIPE – 9.9 M (32.5 FT) LENGTH
- No pipe thread greaser
- TRICONE BITS GROUP (SELECT ONE)
- Hydraulic bit basket
- SERVICE PACKAGES/FLUID SYSTEM
- Standard fast fill for fuel and water only, automated lubricant system
- CLIMATE/REGIONAL CONSIDERATIONS
- Air receiver tank low pressure (ASME/CRN/AU) or
- Air receiver tank low pressure (CE)
- Four (4) batteries
- Climate Level 1
– Standard fluids and lubricants
– With a temperature range of –1° C (30° F) to 52° C (125° F) - Certifications CE
- FRAME/DECK
- No tool storage box (cover only)
- No jib crane (cover only)
- DUST SUPPRESSION
- Water injection only (no dust collector)
– 2271 L (600 gal) tank below deck
- Water injection only (no dust collector)
- UNDERCARRIAGE (SELECT ONE)
- 750 mm (29.5 in) double grousers for hard rock applications or
- 900 mm (35.4 in) double grousers for soft rock applications
Optional Equipment
- CAB
- Premium cab
– Includes a leather seat with heat and ventilation, heavy duty suspension, dual pane window glass
– Additional storage plus windshield wipers on front and rear windows, a removable driller window guard plus front window guard and a trainer seat - Cab roof access system (includes ladders, cage and rails)
- Lights for tram (front and cab)
- Premium cab
- CONTROLS
- Auto Drill Assist
– Single pass auto drill - Auto Drill Assist
– Multi pass auto drill - Manometer/pressure gauge
- Remote tram
- Auto Drill Assist
- PRODUCT LINK/TERRAIN
- Product Link (Satellite)
- Product Link (Dual)
- Terrain (Guidance)
- MAST
- Mast Access Arrangement
– Includes steps, guardrails, landing platforms, and walkway - Drill pipe thread greaser
- Tool Lubrication System
– Rotary tricone, 113.5 L (30 gal) - Flashing beacon for mast clearance
- Overhead winch assembly
– Includes cable and hook plus remote
- Mast Access Arrangement
- TOP SUB/SHOCK SUB (SELECT ONE)
- 219 mm (8.625 in) premium
- 235 mm (9.25 in) premium
- 273 mm (10.75 in) premium
- 324 mm (12.75 in) premium
- 340 mm (13.375 in) premium
- DRILL PIPE – 9.9 M (32.5 FT) LENGTH
- 219 mm (8.625 in) diameter
- 235 mm (9.25 in) diameter
- 273 mm (10.75 in) diameter
- 324 mm (12.75 in) diameter
- 340 mm (13.375 in) diameter
- Pipe thread greaser
- TRICONE BITS GROUP (SELECT ONE)
- 9.875 in (251 mm) tricone bit
- 10.625 in (270 mm) tricone bit
- 12.25 in (311 mm) tricone bit
- Bit lock plate 251 mm (9.875 in)
- Bit lock plate 270 mm (10.625 in)
- Bit lock plate 311 mm (12.25 in)
- Bit lock plate 349 mm (13.75 in)
- Bit lock plate 381 mm (15 in)
- SERVICE TOOLS
- Lifting bail 152 mm (6 in) BECO for 194‑235 mm (7.625-9.25 in) pipe
- Lifting bail 203 mm (8 in) BECO for 273‑324 mm (10.75-12.75 in) pipe
- Lifting bail 254 mm (10 in) BECO for 340 mm (13.375 in) pipe
- Lifting bail 168 mm (6.625 in) API regular thread for 251-349 mm (9.875‑13.75 in) tricone bit
- Lifting bail 178 mm (7.0 in) API regular thread for 381 mm (15 in) tricone bit
- Bushing retainment tool (8.625-10.75 in pipe) (6 in, 7 in and 7.8 in flats)
- Bushing retainment tool (12.75-13.378 in pipe) (10.5 in and 11.38 in flats)
- SERVICE PACKAGES/FLUID SYSTEM
- Premium with Service Center for lubricant drain and fill; automated lubricant system, fast fill fuel and water
- CLIMATE/REGIONAL CONSIDERATIONS
- Six (6) batteries (required for autonomy packages)
- Climate Level 2
– Arctic fluids and lubricants
– Temperatures down to –18° C (–0.4° F)
- FRAME/DECK
- Tool storage box
- Jib crane pedestal only
- Blowdown lines and nozzle (with quick connect cooler end and drill deck)
- DUST SUPPRESSION
- Water injection and dust collector
– 2271 L (600 gal) tank below deck
– 204 m³/min (7,200 ft³/min) dry dust collection - High capacity water injection
– 5299 L (1,400 gal)- 2271 L (600 gal) below-deck mounted tank and a 3028 L (800 gal) above deck mounted tank
- Dust curtain hydraulic lifters
– Front and rear dust curtains (recommended with dust collector) - Tram-off Spray System
- Water injection and dust collector
