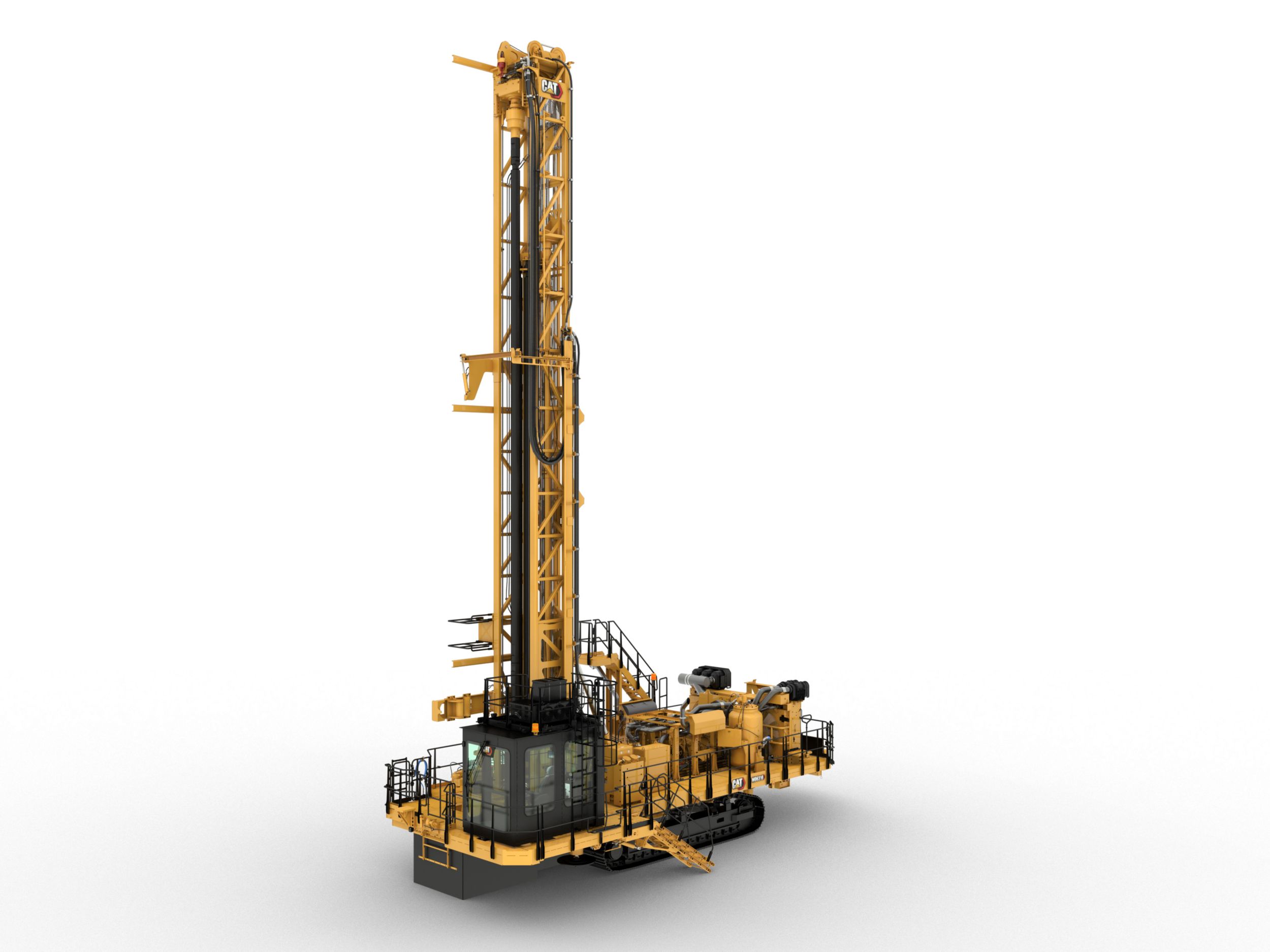

MD6310 Rotary Blasthole Drill

CALCULATE FINANCE

WORLD-CLASS OPERATOR STATION

  • Ergonomic controls to help operators stay alert and avoid fatigue
  • Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
  • Excellent visibility, thanks to multiple cameras and full-length windows
  • Optional heated and ventilated seat for enhanced operator comfort

100% CAT INTEGRATION

  • Cat to the core, with common parts and components and consistent design characteristics across all Cat drill models
  • Shared software for autonomous features
  • Backed by the world-class support of the Cat dealer network

CAT ELECTRONICS: BACKBONE OF THE MACHINE

  • Common electronic architecture across all Cat machines to ensure technician familiarity
  • Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
  • Serves as common platform for integrating future autonomy solutions
  • Product Link™ Elite provides real-time performance tracking

MATCHED POWERTRAIN

  • Variable air volume for reduced fuel consumption and powerful performance
  • C32B engine matched to largest “standard” compressor in this class for fast cycle times
  • Powertrain optimized to withstand rigorous drilling applications
  • High and low-pressure configurations offer variable volume air control
  • Optimal feed force, rotary torque and air, helping to reduce fuel consumption

TECHNOLOGY AND AUTOMATION

  • Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
  • Machine health and performance monitoring keep machine running productively
  • Drill depth meter helps reduce over and under-drilling
  • Ready to connect with the Cat MineStar™ suite of technologies, including Terrain for drilling and Command for drilling

SAFETY

  • Three standard cameras and large windows give the operator excellent visibility
  • MineStar Command for drilling enables remote or autonomous operation, removing operator from the machine
  • Seven engine shut-down buttons
  • Slip-resistant surfaces for safer ingress/egress and service
  • LED interior lights and backlit joysticks and keypads; exterior spot and flood lights illuminate paths for ingress/egress

SUSTAINABILITY

  • Designed to use less fuel, which reduces engine emissions
  • Tier 4 Final engines reduce NOx and particulate matter
  • Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
  • Longer maintenance intervals that decrease the amount of waste contributed to the environment

Optional Equipment

  • FRAME
    • Fuel tank expansion of +1609 L (425 gal) for total of 3218 L (850 gal) (option) required for autonomy packages
  • MAST
    • Overhead winch with remote; variable speed drive with ≥ 1814 kg (4,000 lb) rating, length to reach 6.1 m (20 ft) past drill deck
    • Rotary tool lubrication, 113.5 L (30 gal) oil injection system
    • Mast access ladder, mast grating and lanyard posts
  • OPERATOR ENVIRONMENT
    • Trainer seat that folds away
    • Window shades
    • Cabin pressure manometer gauge
    • Cab roof access ladder
  • SERVICE TOOL OPTIONS
    • Bushing Retention Tool 178 to 235 mm (7 to 9.250 in) pipe diameter
    • Lifting bails (available on request; required for commissioning)
      – 114 mm (4.5 in) API reg thread
      – 140 mm (5.5 in) API reg thread
      – 168 mm (6.625 in) for top sub/shock sub API reg thread
      – 114 mm (4.5 in) for 178 mm (7 in) pipe BECO thread
      – 152 mm (6 in) for 194 mm (7.625 in) up to 235 mm (9.25 in) pipe BECO thread
  • TECHNOLOGY PRODUCTS
    • Product Link Elite – cellular
    • Product Link Elite – Dual (cellular and satellite)
    • Terrain for Drilling
  • GROUND ENGAGING TOOLS
    • Drill bits, rotary tricone
      – 228 mm (9.0 in), OPT 1, (S3)
      – 228 mm (9.0 in), OPT 2, (M2)
      – 228 mm (9.0 in), OPT 3, (H1)
      – 251 mm (9.875 in), OPT 1, (M1)
      – 251 mm (9.875 in), OPT 2, (M3)
      – 251 mm (9.875 in), OPT 3, (H1)
      – 270 mm (10.625 in), OPT 1, (S3)
      – 270 mm (10.625 in), OPT 2, (M3)
      – 270 mm (10.625 in), OPT 3, (H1)
      – 311 mm (12.25 in), OPT 1, (M1)
      – 311 mm (12.25 in), OPT 2, (M3)
      – 311 mm (12.25 in), OPT 3, (H1)
  • DUST SUPPRESSION
    • Dust curtain hydraulic lifters raise front and rear dust curtains (recommended with dust collector)
    • Tram off spray system
  • DRILL PIPE
    • 12.19 m (40 ft) Pipes, 13.7 m (44.9 ft) Mast – Carousel holds quantity of four
      – DTH – 178 mm (7 in)
      – Rotary/DTH – 194 mm (7.625 in)
      – Rotary – 203 mm (8 in)
      – Rotary – 219 mm (8.625 in)
    • 7.62 m (25 ft) Pipes, 17.5 m (57.4 ft) Mast – Carousel holds quantity of four
      – DTH – 178 mm (7 in)
      – Rotary/DTH – 194 mm (7.625 in)
      – Rotary – 203 mm (8 in)
      – Rotary – 219 mm (8.625 in)
      – Rotary – 235 mm (9.25 in) Carousel accepts quantity of two
    • 9.14 m (30 ft) pipes, 13.7 m (44.9 ft) Mast – Carousel holds quantity of two with special sub adapters to connect to DTH hammer and tricone bit (DTH hammer and tricone not included)
      – Accepts 194 mm (7.625 in) pipe
    • Contact factory for additional pipe diameters
