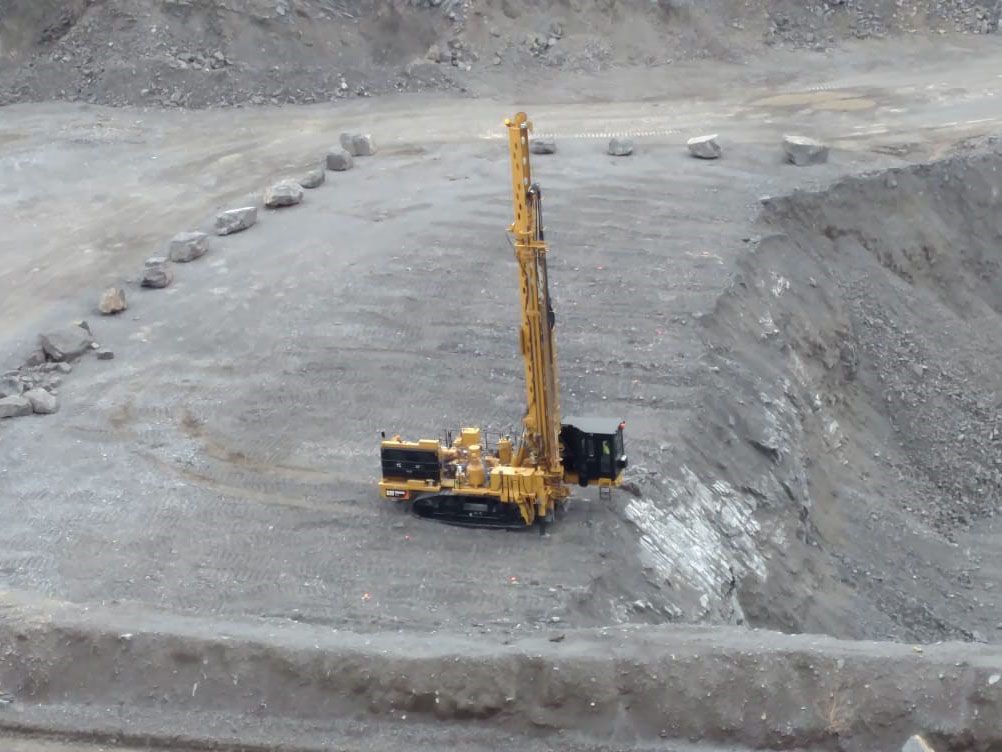

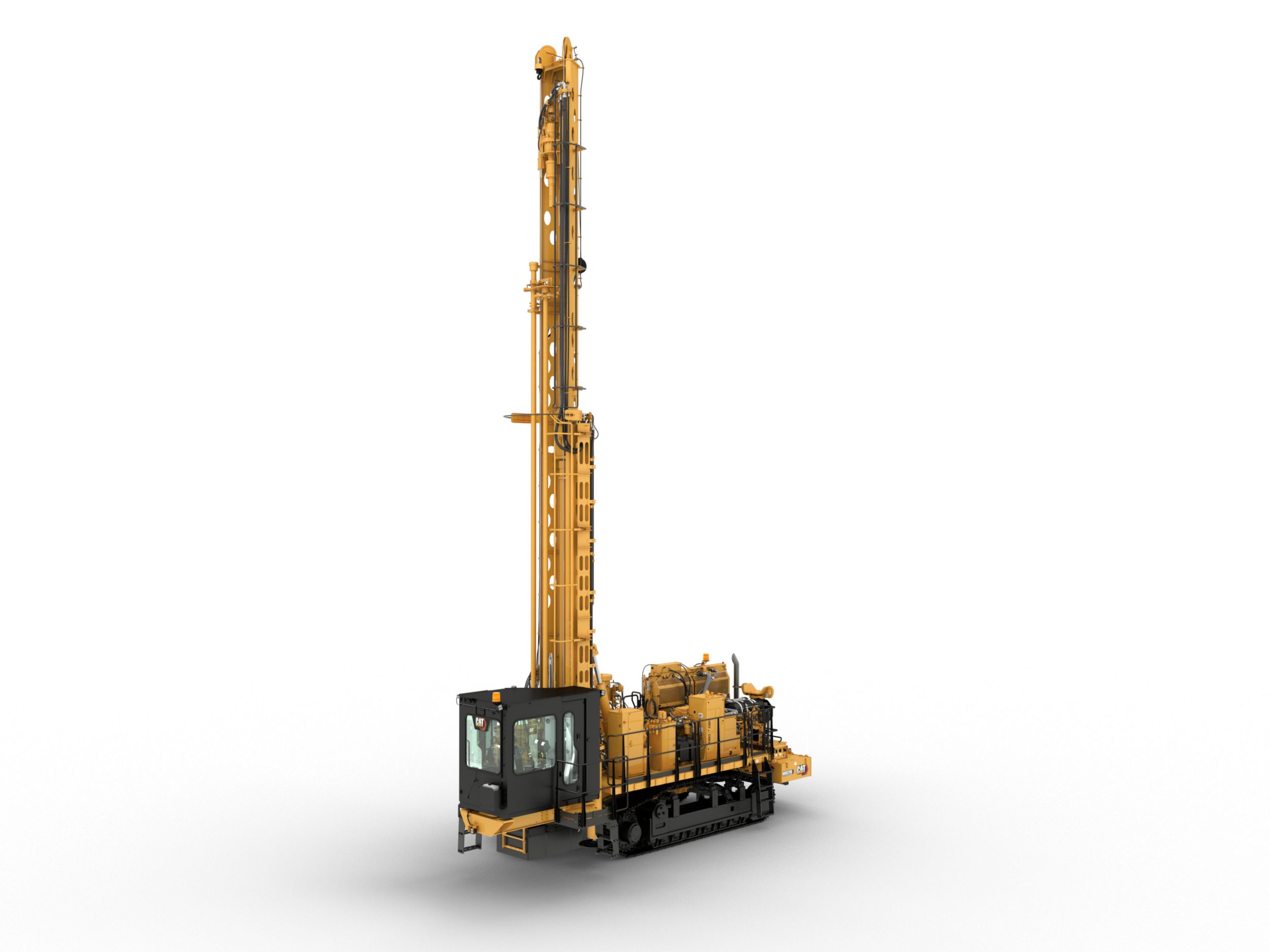

MD6200 Rotary Blasthole Drill

CALCULATE FINANCE

100% Cat Integration

  • Cat to the core
  • Common parts and components across all Cat drills and consistent design characteristics
  • Shared software for autonomous features
  • Cat Dealer Support

World-Class Operator Station

  • Ergonomic controls to help operators stay alert and avoid fatigue
  • Multifunction joystick controls and touchscreen monitors are easy to use and intuitive
  • Excellent visibility, thanks to multiple cameras and full-length windows
  • Optional heated and ventilated seat for enhanced operator comfort

Superior Transportability

  • Smallest shipping envelope in its class
  • Can be transported over the road with the mast on
  • Cat 336 excavator-style undercarriage provides exceptional stability and maneuverability
  • Compact working envelope increases productive drill time
  • Highly maneuverable from bench to bench or hole to hole

Cat Electronics: Backbone of Machine

  • Common electronic architecture across all Cat machines to ensure technician familiarity
  • Cat Electronic Technician (Cat ET) enables fast and easy troubleshooting
  • Serves as common platform for integrating future autonomy solutions
  • Product Link™ Elite provides real-time performance tracking

Technology and Automation

  • Integrated Drill Assist functionality, including auto level, auto retract jacks, auto raise and lower mast, and auto drill
  • Machine health and performance monitoring keep machine running productively
  • Drill depth meter helps reduce over and under-drilling
  • Cat MineStar™ Terrain for drilling data is integrated into existing cab monitors (requires Terrain license purchase)

Matched Powertrain

  • Variable air volume for reduced fuel consumption
  • C18 engine matched to hydraulics and compressor for increased efficiency
  • High and low-pressure configurations offer variable volume air control
  • Reduces stand-by pressures while machine idles

Positive (And Negative) Angle Drilling

  • Angle drill from 30 degrees to -15 degrees (in 5-degree increments)
  • Negative-angle drilling (vertical to -15 degrees) helps you tackle such specialty projects as ramp and access development, sink shots and limited pre-split drilling
  • Positive-angle (30 degrees to vertical) for production drilling

Safety

  • Three standard cameras and large windows give the operator excellent visibility
  • Slip-resistant surfaces for safer ingress/egress and service
  • MineStar Command for drilling enables remote or autonomous operation, removing operator from the machine
  • LED interior lights and backlit joysticks and keypads
  • Spot and flood lights positioned to illuminate paths for ingress/egress and major service points

Sustainability

  • Designed to use less fuel, which reduces engine emissions
  • Tier 4 Final engines reduce NOx and particulate matter
  • Reduced waste and lower owning and operating costs thanks to increased commonality of systems and components, plus a reduction in unique part numbers
  • Longer maintenance intervals that decrease the amount of waste contributed to the environment

Standard Equipment

  • FRAME ACCESS
    • Fixed access steps to cab area
    • Small platform to the cab includes access steps
    • Platform access to the cab with full-length service access walkway includes access steps (option) and self-closing gates
  • UNDERCARRIAGE
    • Cat 336 Excator type
    • Track chain guards and guides
  • ENGINE
    • Cat C18 (Tier 4 final/EU Stage V)
    • Cat C18 (U.S. EPA Tier 2 Equivalent)

Optional Equipment

  • MAST
    • Overhead winch assembly with cable and hook, plus remote control; variable speed drive with a 1361 kg (3,000 lb) rating
    • Tool lubrication system for Rotary Drilling with 113.5 L (30 gal) capacity
    • Pipe thread greaser with reloadable tank or disposable grease bucket
    • Manual bit basket
  • SERVICE TOOLS
    • Bushing retention tool – 89 to 152 mm (3.5 to 6.0 in) wrench flats
    • Lifting bails (available on request; required for commissioning)
    • API thread 89 mm (3.5 in)
    • API thread 114 mm (4.5 in)
    • BECO thread 76 mm (3.0 in)
    • BECO thread 89 mm (3.5 in)
    • BECO thread 101 mm (4.0 in)
    • BECO thread 114 mm (4.5 in)
  • OPERATOR ENVIRONMENT
    • Cab pressure gauge
    • Window shades
    • Drill assist; single pass auto drill
  • TECHNOLOGY PRODUCTS
    • Product Link Elite; satellite, cellular or dual
    • Terrain guidance system hardware
  • DUST SUPPRESSION
    • Dust curtains, four sides boxed in, with hydraulic lifters to raise front and rear dust curtains (recommended with dry dust collector)
    • Tram off spray system
  • DRILL BITS, ROTARY TRICONE
    • Recommended for rotary applications
    • All bits have standard nozzles
    • Obtain S/M/H codes from the Rock Formation to Bit Conversion table https://catpublications.com search for PEXQ1027
    • Ship out plans for each drill configuration allow for one pallet of bits. Additional pallets may require an additional truck.
      – 171 mm (6.75 in), Option 1, (S2)
      – 171 mm (6.75 in), Option 2, (M1)
      – 171 mm (6.75 in), Option 3, (M3)
      – 200 mm (7.875 in), Option 1, (S2)
      – 200 mm (7.875 in), Option 2, (M1)
      – 200 mm (7.875 in), Option 2, (M3)
  • DRILL PIPE
    • 9.14 m (30 ft) pipes – Accepts quantity of four (4)
      – 101 mm (4 in) pipe (2.875 in API Reg Threads)
      – 114 mm (4.5 in) pipe (3 in BECO Threads)​
      – 127 mm (5 in) pipe (3.5 in BECO Threads)
      – 140 mm (5.5 in) pipe (4 in BECO Threads)
      – 152 mm (6 in) pipe (4.5 in BECO Threads)
