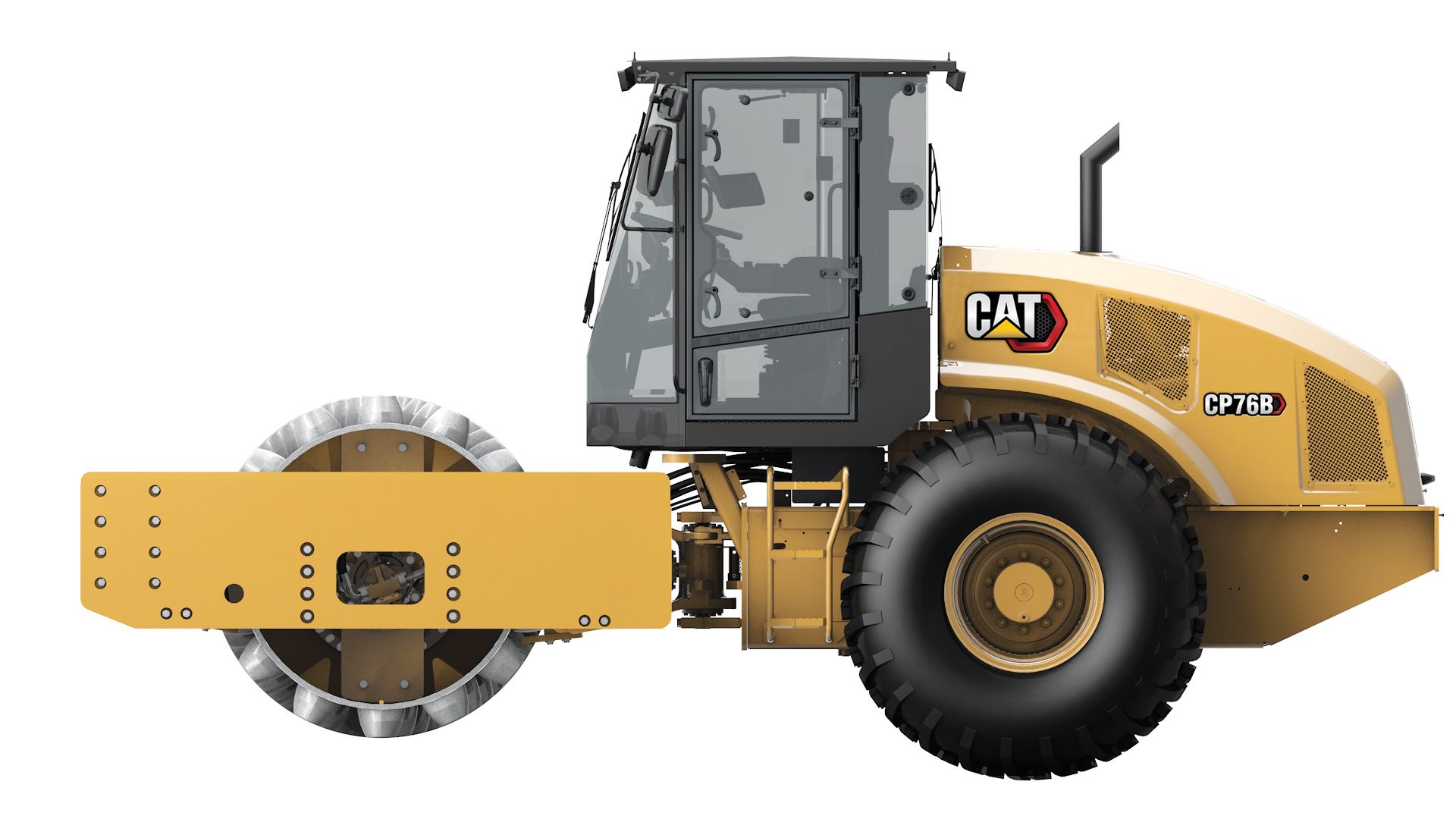

CP76B Vibratory Soil Compactor
- Enhanced Vibratory System
- Reliable Power Train
- Comfortable Operator’s Environment
- Cat Compaction Control Option
- Easy to Service
| Weights | |
|---|---|
| Operating Weight - With Cab | 17677 kg (38971 lb) |
| Weight - Drum with Cab | 11924 kg (26288 lb) |
| Operating Specifications | |
|---|---|
| Compaction Width | 2134 mm (84 in) |
| Turning Radius - Inside Drum Edge | 3.68 m (12.08 ft) |
| Travel Speed - Maximum | 11.4 km/h (7 mile/h) |
| Ground Clearance | 445 mm (17.5 in) |
| Engine | |
|---|---|
| Gross Power | 129.5 kW (173.7 hp) |
| Engine Model | Cat C6.6 with ACERT |
| Dimensions | |
|---|---|
| Overall Length | 6.05 m (19.83 ft) |
| Drum Diameter | 1295 mm (51 in) |
| Overall Width | 2.33 m (7.67 ft) |
| Height - With ROPS/FOPS or Cab | 3.11 m (10.25 ft) |
| Drum Width | 2134 mm (84 in) |
| Wheel Base | 2.9 m (9.58 ft) |
| Drum Diameter - Over Pads | 1549 mm (61 in) |
| Vibratory System | |
|---|---|
| Centrifugal Force - Minimum | 166 kN (37300 lb) |
| Vibratory Frequency - Standard | 28 Hz (1680 vpm) |
| Centrifugal Force - Maximum | 332 kN (74600 lb) |
| Nominal Amplitude - High | 2.1 mm (0.083 in) |
| Nominal Amplitude - Low | 0.98 mm (0.039 in) |
| Variable Frequency Option Range | 23.3 - 28 Hz (1400-1680 vpm) |
| Tires | |
|---|---|
| Tires | 23.1 x 26 |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 332 l (88 gal (US)) |
| Weights | |
|---|---|
| Weight at Drum with Open Platform | 11694 kg (25781 lb) |
| Weight at Drum with Steel Sun Canopy | 11734 kg (25869 lb) |
| Operating Weight - With Open Platform | 17087 kg (37670 lb) |
| Operating Weight - With ROPS/FOPS Canopy | 17357 kg (38266 lb) |
| Operating Weight - With Steel Sun Canopy | 17182 kg (37879 lb) |
| Weight - Drum with ROPS/FOPS Canopy | 11789 kg (26010 lb) |
