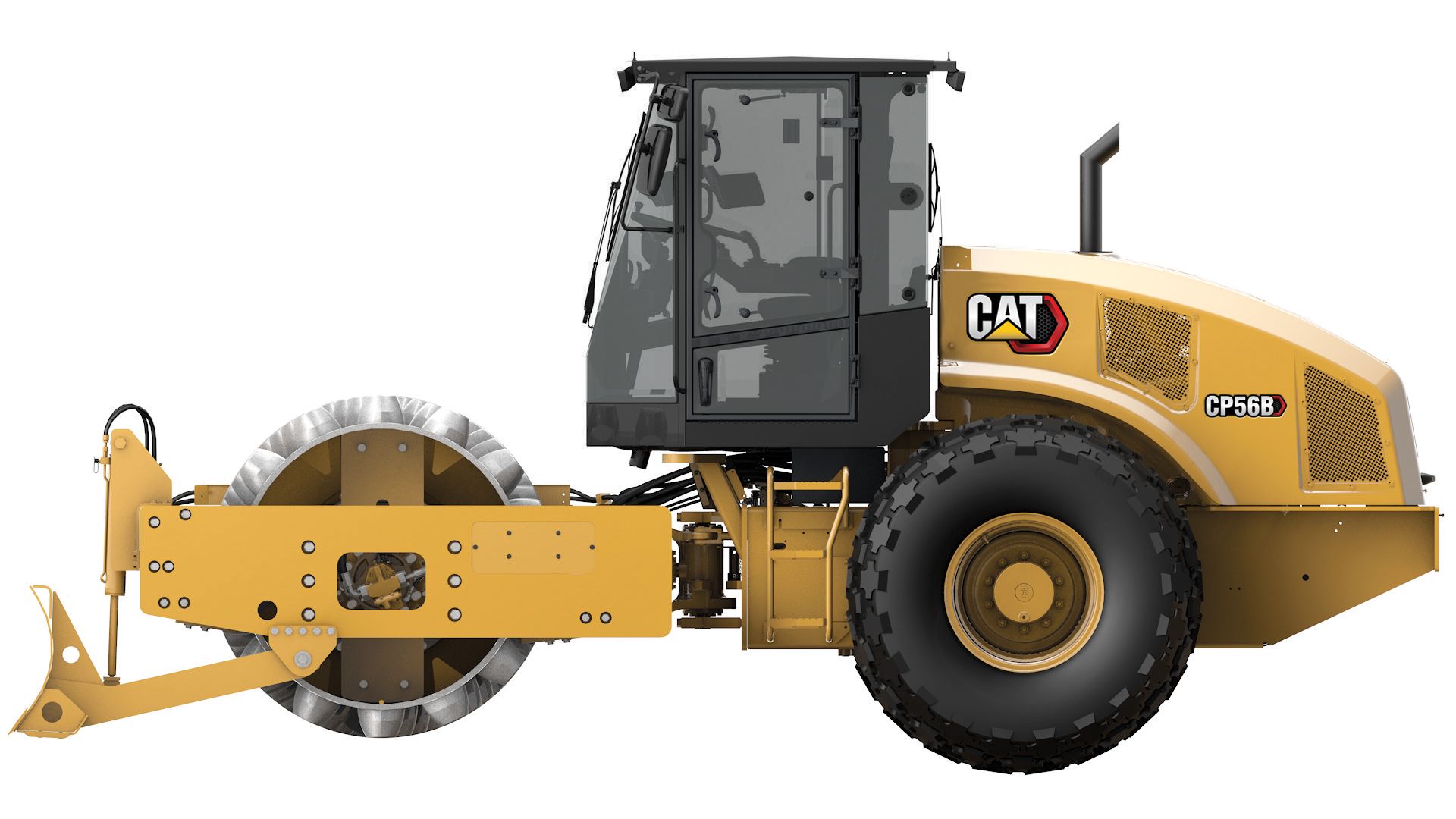

CP56B Vibratory Soil Compactor
- Enhanced Vibratory System
- Reliable Power Train
- Comfortable Operator’s Environment
- Cat Compaction Control Option
- Easy to Service
| Weights | |
|---|---|
| Operating Weight - With Cab | 11725 kg (25849 lb) |
| Operating Weight - With Steel Sun Canopy | 11235 kg (24769 lb) |
| Weight - Drum with Cab | 6465 kg (14253 lb) |
| Weight - Drum with ROPS/FOPS | 6465 kg (14253 lb) |
| Weight - Drum with ROPS/FOPS Canopy | 6330 kg (13955 lb) |
| Weight at Drum with Steel Sun Canopy | 6275 kg (13834 lb) |
| Operating Specifications | |
|---|---|
| Travel Speed - Maximum | 11.4 km/h (7 mile/h) |
| Compaction Width | 2134 mm (84 in) |
| Ground Clearance | 442 mm (17.4 in) |
| Turning Radius - Inside Drum Edge | 3.68 m (12.07 ft) |
| Engine | |
|---|---|
| Gross Power | 116.5 kW (156 hp) |
| Bore | 105 mm (4.1 in) |
| Stroke | 135 mm (5.31 in) |
| Engine Model | Cat C7.1 |
| Dimensions | |
|---|---|
| Overall Width - With Blade Option | 2.5 m (8.25 ft) |
| Height - With ROPS/FOPS or Cab | 3.11 m (10.2 ft) |
| Wheel Base | 2.9 m (9.5 ft) |
| Drum Width | 2134 mm (84 in) |
| Overall Length | 5.86 m (19.2 ft) |
| Optional Blade Height | 688 mm (27.1 in) |
| Overall Width | 2.3 m (7.53 ft) |
| Overall Length - With Blade Option | 6.4 m (20.9 ft) |
| Drum Diameter | 1534 mm (60.4 in) |
| Drum Diameter - Over Pads | 1549 mm (61 in) |
| Vibratory System | |
|---|---|
| Nominal Amplitude - High | 2.1 mm (0.083 in) |
| Centrifugal Force - Maximum | 301 kN (67600 lb) |
| Centrifugal Force - Minimum | 141 kN (31670 lb) |
| Nominal Amplitude - Low | 0.98 mm (0.039 in) |
| Variable Frequency Option Range | 23.3 - 30.5 Hz (1400-1830 vpm) |
| Vibratory Frequency - Ecomode | 27.7 Hz (1664 vpm) |
| Vibratory Frequency - Standard | 30.5 Hz (1830 vpm) |
| Tires | |
|---|---|
| Tires | 23.1 x 26 |
| Service Refill Capacities | |
|---|---|
| Fuel Tank Capacity | 242 l (64 gal (US)) |
