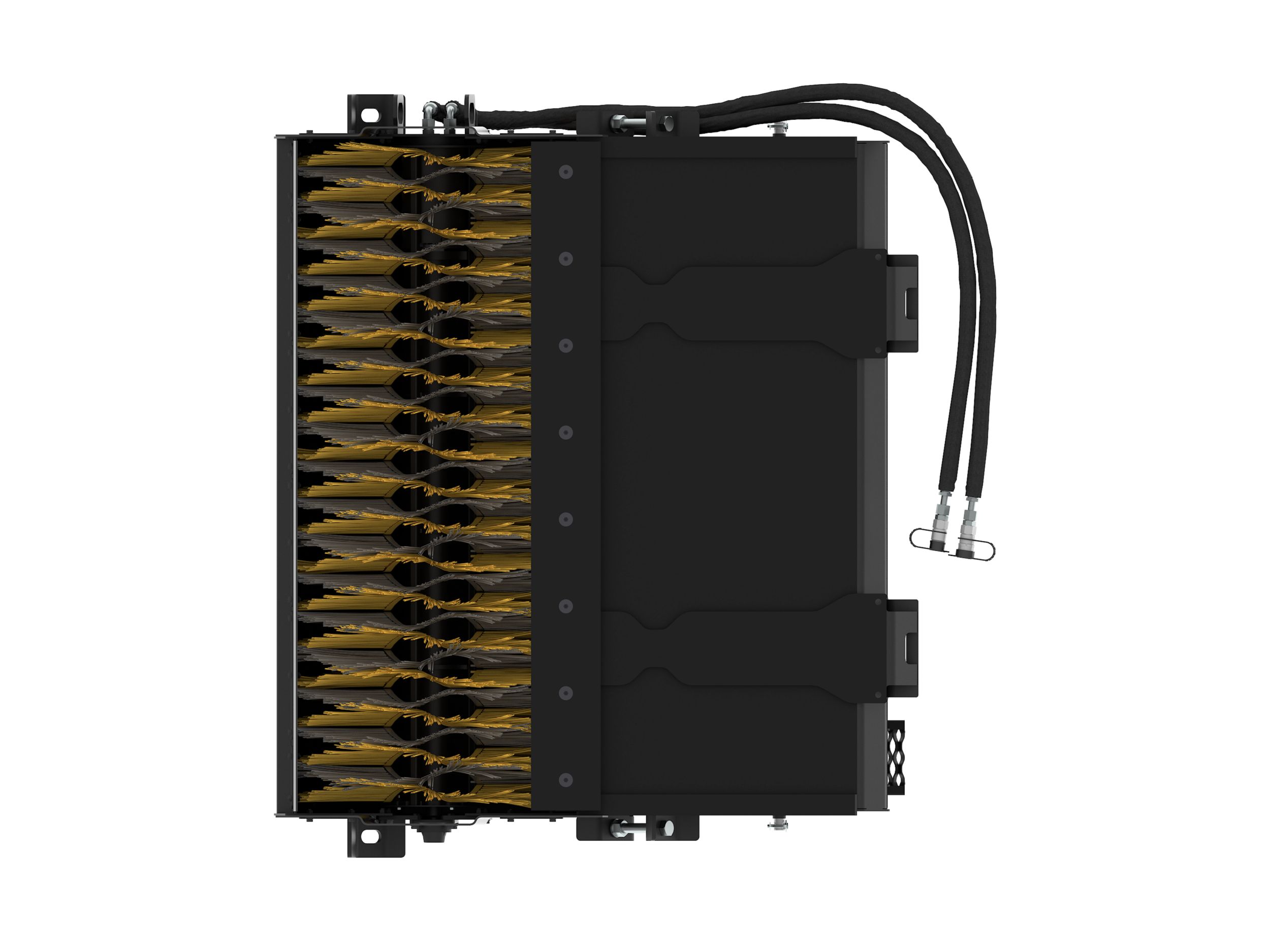

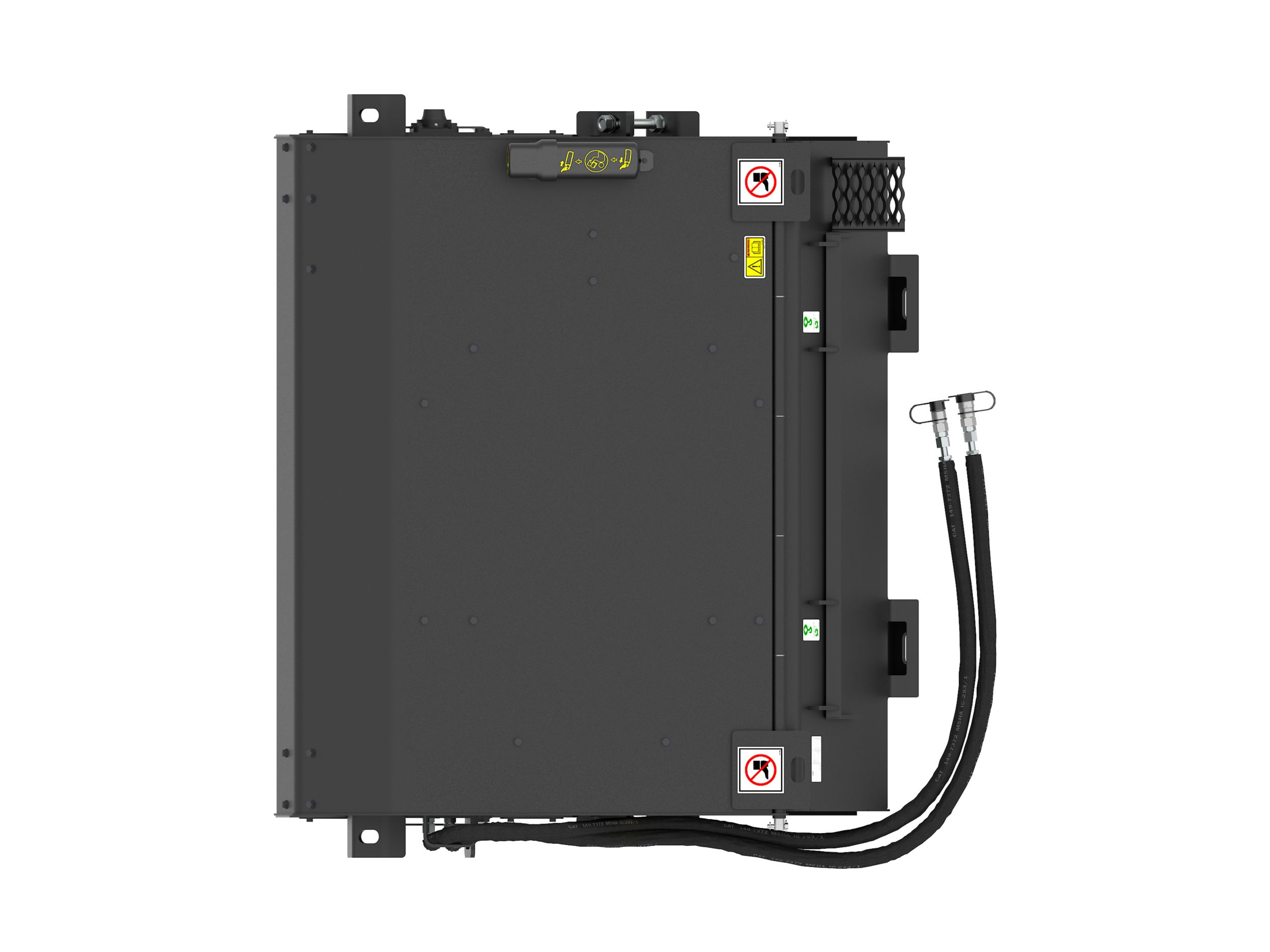

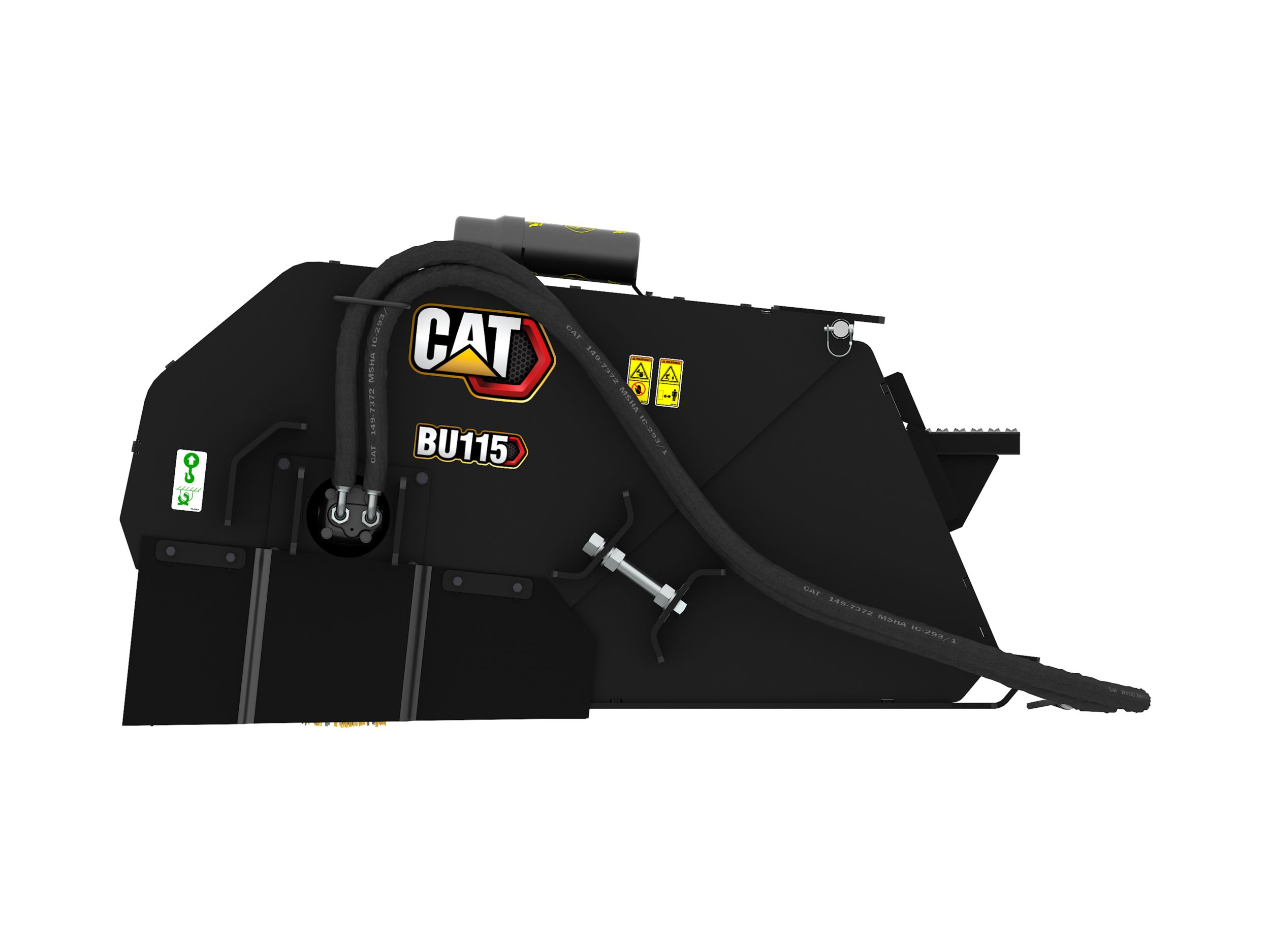

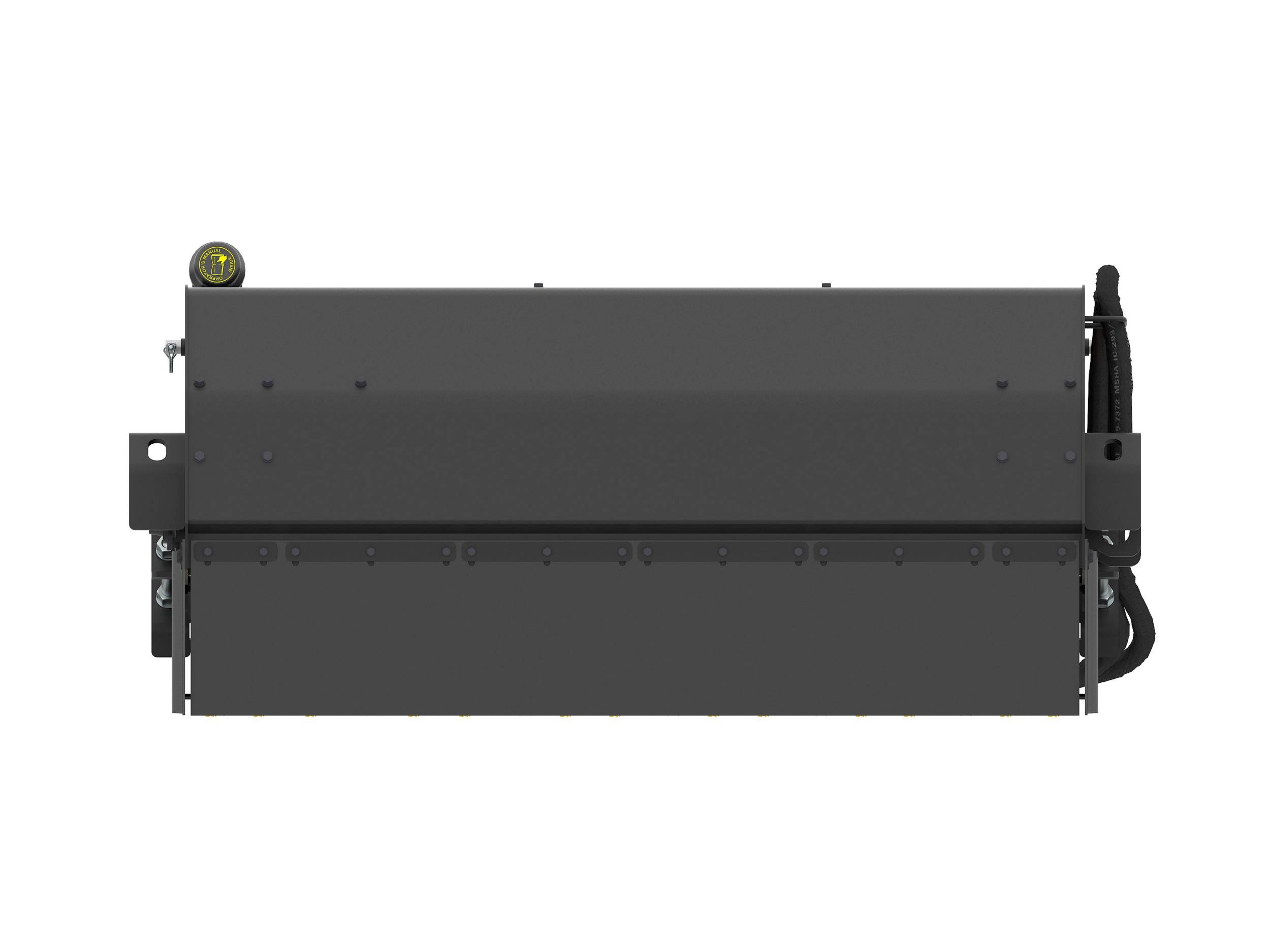

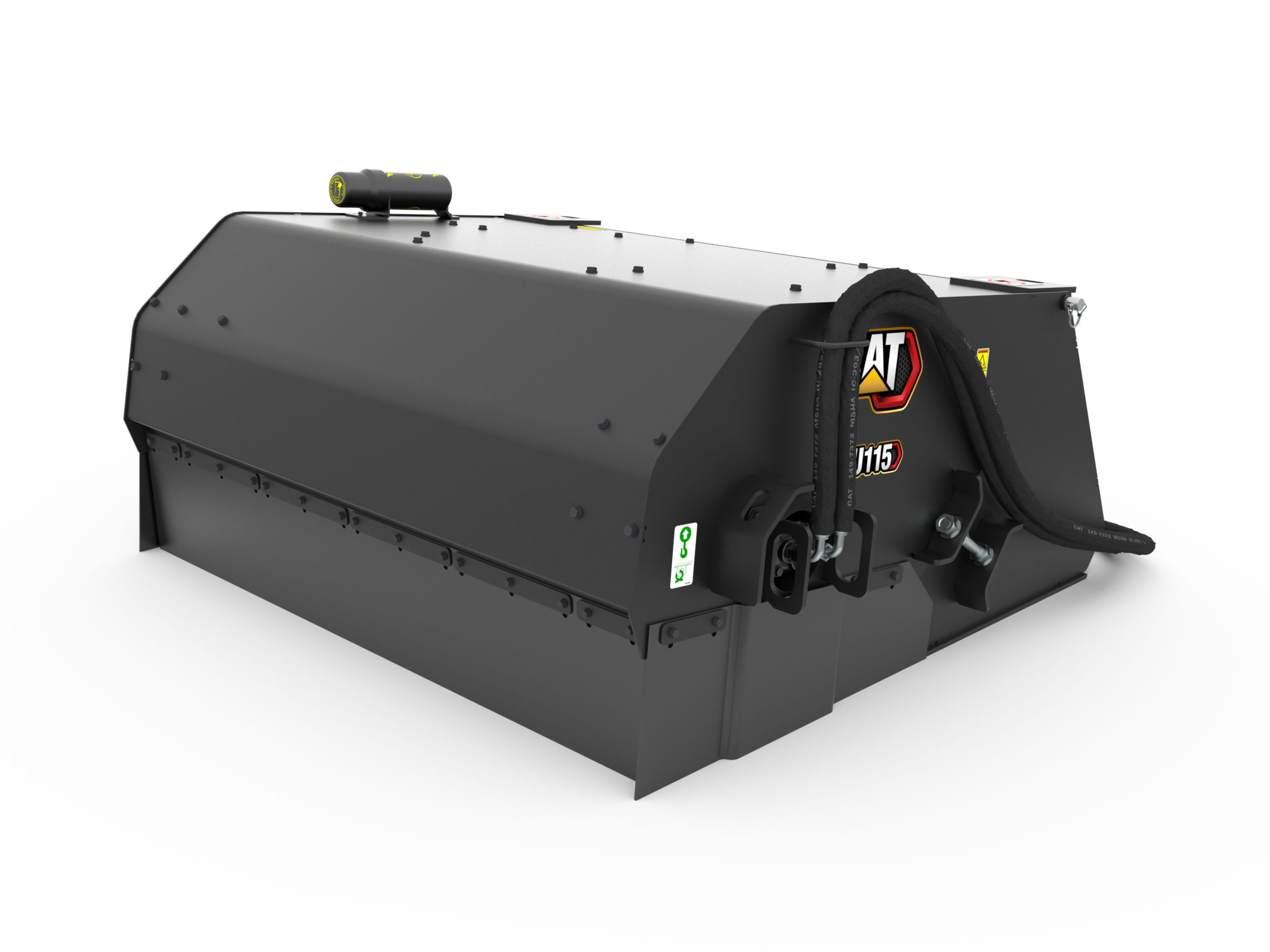

BU115 Utility Broom with Polypropylene and Wire Bristles
Application
Ideal for cleaning and removing dirt, rock, snow and other debris from streets, parking lots, driveways, sidewalks and factory floors.
Bi-Directional Sweeping
Utility Brooms have the ability to sweep and collect light debris on smooth surfaces in both forward or reverse.
Broom Material Options
Standard broom material is made of replaceable polypropylene and steel wire sections or all polypropylene.
Large Hopper Capacity
Large hopper capacity allows greater productivity with longer sweeping cycles. Wide bucket opening with bolt-on, replaceable cutting edge permits fast, efficient dumping.
Rubber Boots
Rubber boots on front and sides of broom aid in containing debris and airborne contaminants during sweeping.
Protected Long Life Motor
Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow machines.
Reversible Cutting Edge
Replaceable cutting edge is also reversible, extending wear life.
Bristle Height Adjustment
Adjustment allows for better directionality and can ensure greater power and longer bristle life.
Cab Access Step
Serrated step provides safe access in and out of cab for operator’s safety.
Tool Mounted Operation and Maintenance Manual (OMM) Holder
Tool mounted and sealed from the elements, this holder includes all of the operation manuals and maintenance guides required for proper operation of the work tool.
Optional Water Sprinkler Kit
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during sweeping operations.
Optional Water Tank Kit
Optional broom mounted water tank kit to supply the sprinkler kit.
Optional Gutter Brush Kit
Optional all-steel wire gutter brush mounted on the left or right side of the broom assists in removing material from gutters and pavement edges.
Product Specifications | |
---|---|
Overall Width | 1810 mm (71.3 in) |
Sweeping Width | 1500 mm (59.1 in) |
Brush Diameter | 665 mm (26.2 in) |
Required Hydraulics | Standard Flow w/o Electrical |
Height | 793 mm (31.2 in) |
Length | 1530 mm (60.2 in) |
Weight | 433 kg (954.6 lb) |
Required Hydraulic Flow | 30-86 L/min (8-23 gpm) |
Optimal Hydraulic Pressure | 145-241 bar (2100-3500 psi) |
Motor Displacement | 395 cmu00b3/rev (24.1 inu00b3/rev) |
Brush Speed at Maximum Flow | 210 RPM |
Gutter Brush Weight | 45 kg (99.2 lb) |
Drive Method | Direct Drive |
