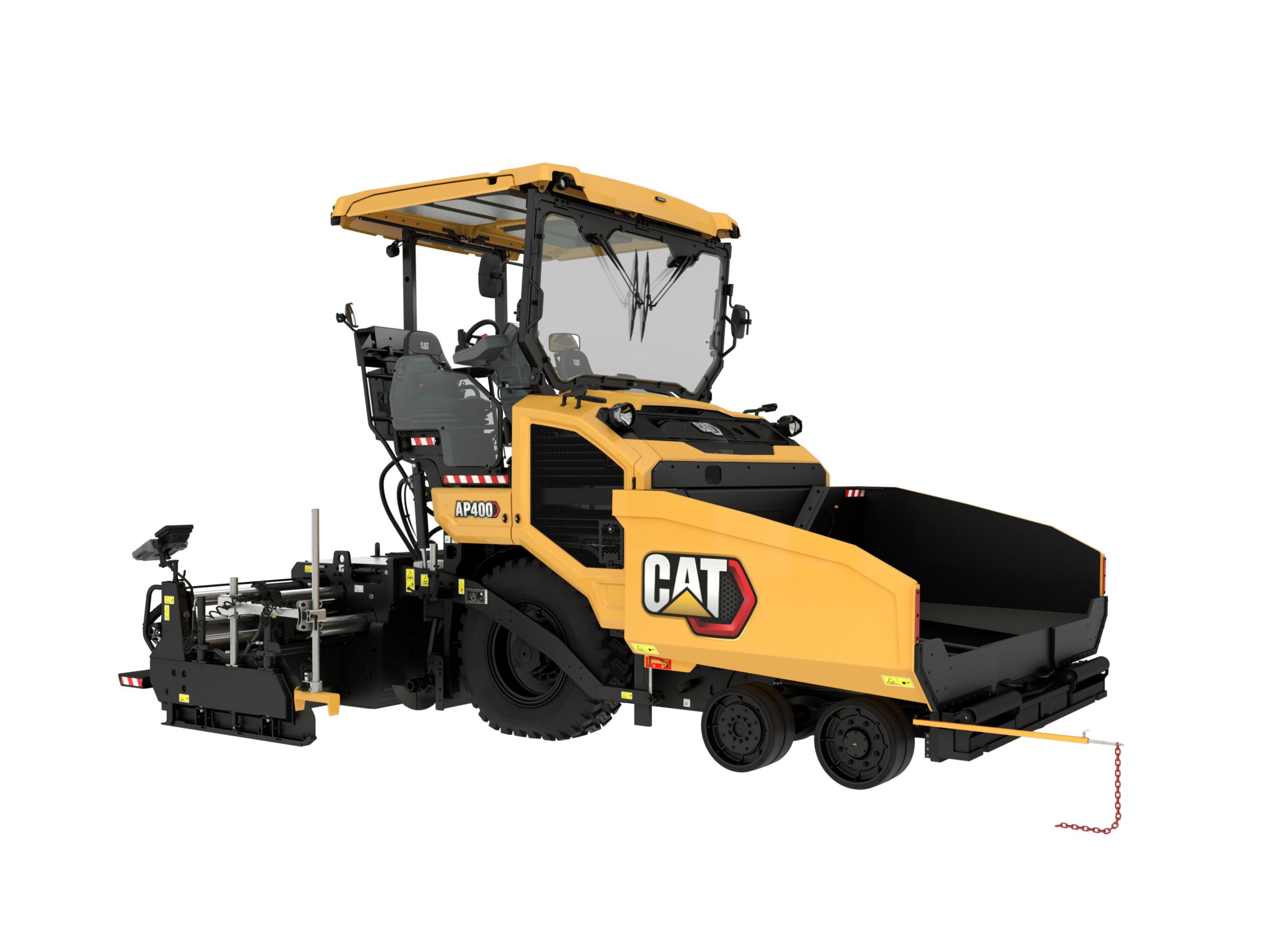

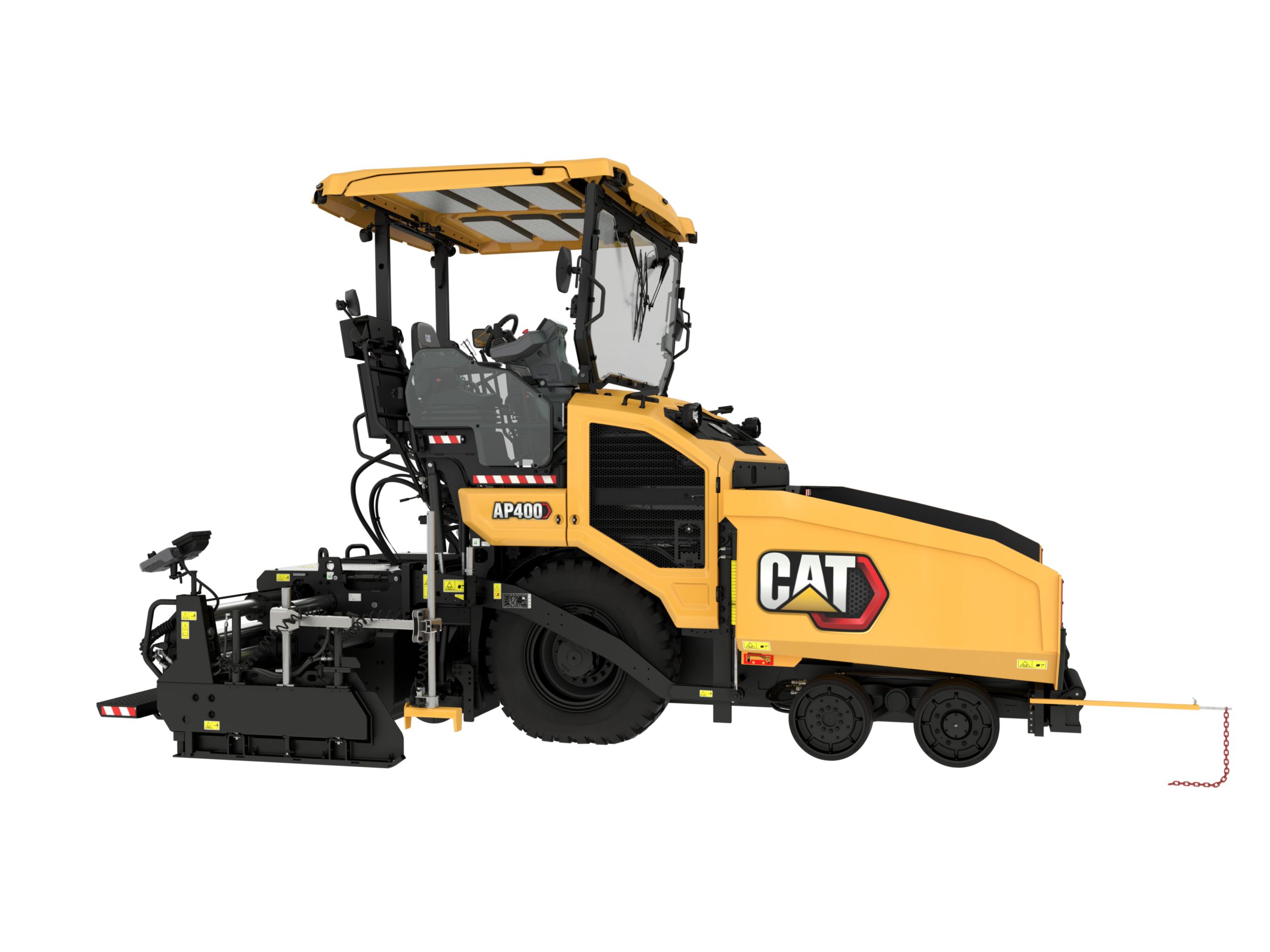

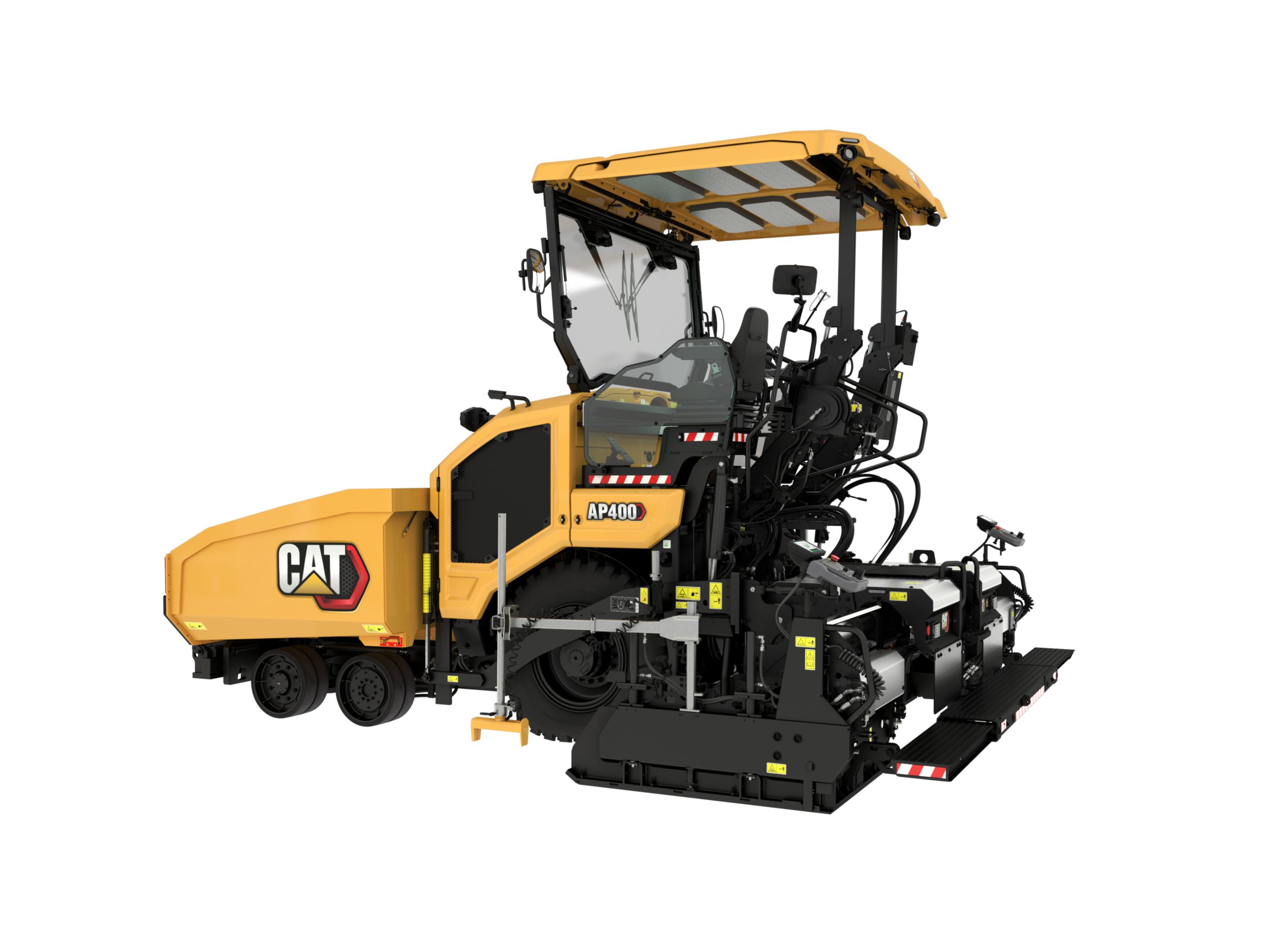

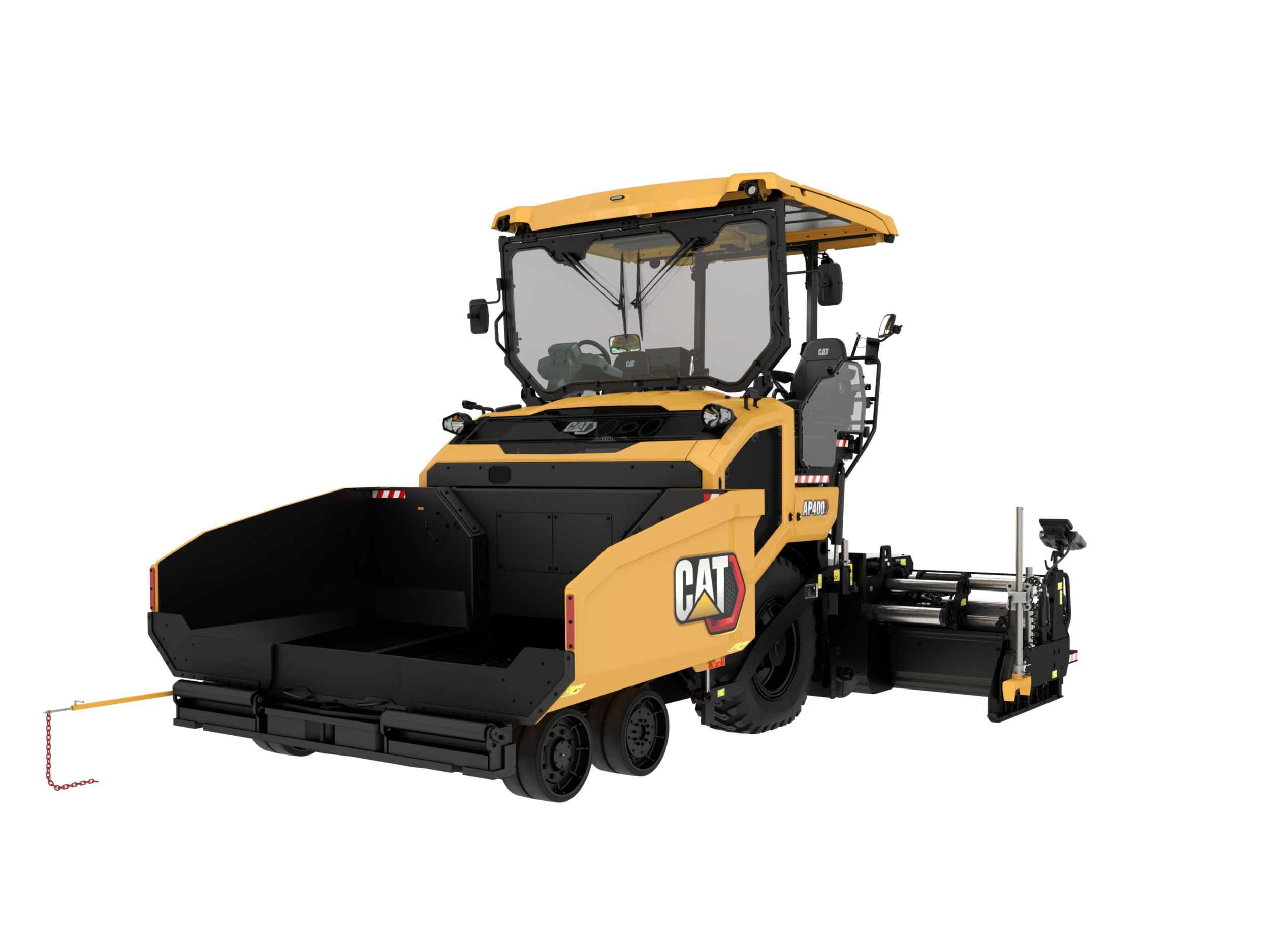

AP400 Wheel Asphalt Paver

Compact Size, Big Opportunities

• The compact size and small footprint simplify maneuverability in tight spaces for efficient work in urban-type applications
• Tight 90 degree turning capability enables the paver to rotate and cover tracks on a return paving pass
• Standard paving range utilizing the SE47 V screed is 2.4 m to 4.7 m (8′ to 15′ 6″) with a maximum width of 6.1 m (20′)
• Standard paving range utilizing the SE47 FM screed is 2.4 m to 4.7 m (8′ to 15′ 6″) with a maximum width of 5.9 m (19′ 6″)
• Standard paving range utilizing the SE47 VT screed is 2.4 m to 4.7 m (7′ 10″ to 15′ 4″) with a maximum width of 6.0 m (19′ 8″)
• Paving depths up to 300 mm (12″) supports aggregate paving applications

Transport Made Easy

• Machine weight of 13.6 mt (30,000 lb) paver and screed combination, without canopy, enables easy transport on a variety of trailer types
• Length of less than 5.5 m (18′ 1″) and width of 2.5 m (8′ 2″) when equipped with SE47 FM screed with optional folding end gates, accommodates machine transport without special permits.
• The front-loading angle of 20 degrees and high front bumper clearance reduces the need for additional blocking when loading onto various trailer designs
• Raising or retracting the canopy is fast and easy with both electric or manual options available
• Front, middle, and rear tie-down locations make securing the paver efficient for quick travel to the next job site

Exceptional Mobility

• Wheel undercarriage provides exceptional mobility and fast travel speeds for unmatched maneuverability around the job site
• Excellent traction is delivered through the 14.00×20 sand-rib or 15.5 R25 radial drive tires
• Front-wheel assist option provides power to the rear set of bogie wheels for excellent performance in tough conditions
• High, front ground clearance of 203 mm (8″) helps avoid storm drains, curbs, and other obstacles

Smooth Material Flow

• Single amplitude tamper system with variable frequency screed plate vibration delivers excellent material flow and tight mat textures
• Low truck entry height and short front apron enhances material flow while simplifying clean-out
• Feeder system design with 355 mm (14″) diameter augers provides consistent material flow across the screed for efficient flow at both narrow and wide paving widths
• Narrow auger chamber keeps material moving and helps eliminate stagnate patches
• Independent control of each material feed sensor, simply turn off the sensor for manual proportional feed control

More Comfort

• Optional ventilation system draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment
• Single sliding console enables operation from either side of the machine
• Dual independent seats swing out 40 degrees beyond the platform for good visibility to curbs and obstacles
• Optimized height and integrated exhaust provide unobstructed visibility around the machine
• Optional screed and paver mounted umbrellas offer protection from direct sun
• Heated seat option delivers comfort in cool weather conditions
• High visibility 76 mm (3″) seat belt helps with crew safety compliance

Easy Viewing Displays

• High-definition, touchscreen displays with adjustable brightness control for all types of lighting conditions, including direct sunlight
• New touch screen operating display with simplified menu structures, intuitive graphics, and short-cut keys help simplify machine adjustments
• Single-touch functions from the main screen include screed heat, wash-down system, vibratory activation, ventilation system, and the accessory panel
• Cat® Grade Control or Basic Grade Control options available
• Operating displays can be tailored to specific language requirements with multiple options available
• Wash-down system includes level indication

Low Owning and Operating Costs

• Durable Cat C3.6 engine provides 90 kW (120 hp) of power with variations that meet either U.S. EPA Tier 4 Final or EU Stage V emission standards. The Cat 3.6 engine also meets UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
• Single source supplier of Cat engines and machine parts helps maximize uptime
• Exclusive Eco-mode and Automatic Engine Speed Control reduce fuel consumption and lowers sound levels for better job site communication
• Conveyor bed plates and chain guards are designed to minimize labor requirements and lower replacement costs
• Maintenance-free high torque motors for the auger and conveyor drive systems reduce service requirements

Product Link™ Elite

• Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
• Easily track location, machine hours, fuel usage, and idle time in real time
• Diagnostic codes are made available through online web applications
• Remote flash for easy software updates
• Scheduled maintenance and Scheduled Oil Sampling notifications
• Remote disable deactivates the engine for enhanced security

Service and Repair Kits

• Paver and screed service and repair kits include all the parts necessary to complete specific repairs
• Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
• Repair kits are identified by a single part number to make ordering easy
• Select kits are available to be packaged as a kit by the dealer for over the counter purchases or through the dealer service shop
