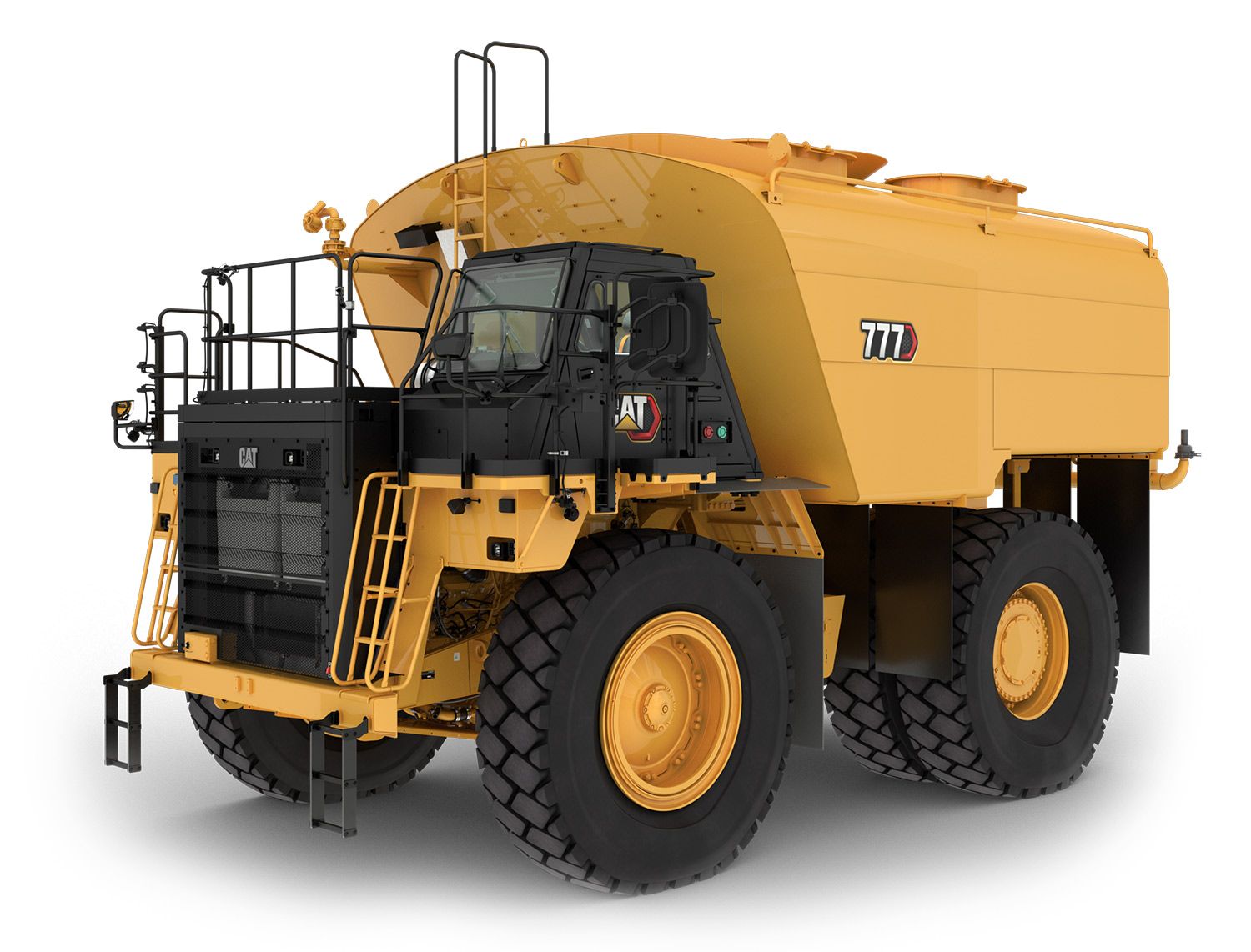

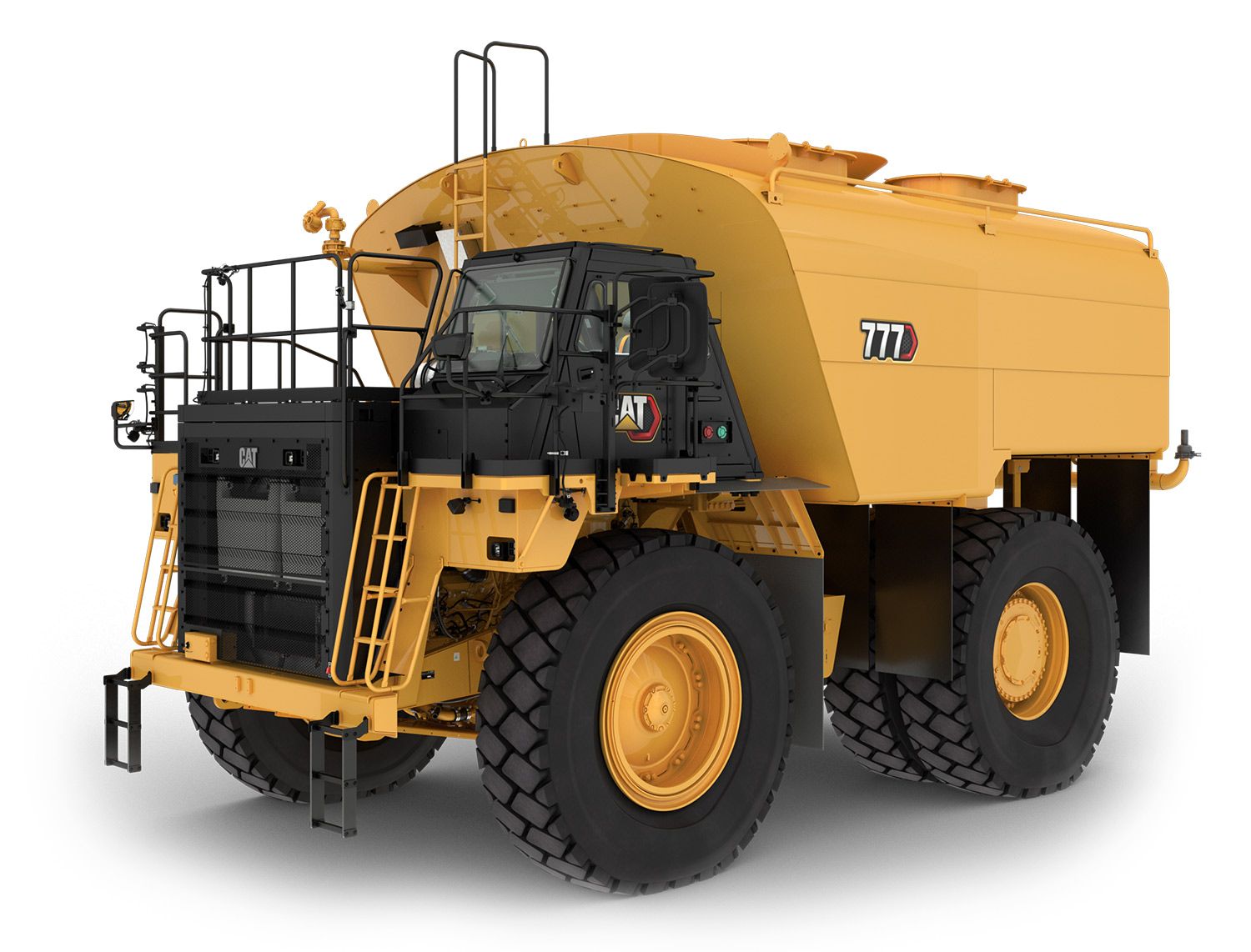

777 (05) Off-Highway Water Truck
- ENHANCED SITE SAFETY
- EASY TO OPERATE
- OPTIMISED PRODUCTIVITY
- EFFICIENCY & SUSTAINABILITY
- BOOST FUEL EFFICIENCY
- SCALABLE CONNECTIVITY
- PROVEN RELIABILITY AND SERVICEABILITY
- INTEGRATION & SUPPORT
| Engine | |
|---|---|
| Engine Model | Cat® C32B |
| Gross Power - SAE J1995:2014 | 765 kW (1026 hp) |
| Engine Speed | 1800 r/min (1800 r/min) |
| Net Power - SAE J1349:2011 | 711 kW (953 hp) |
| Emissions | Fuel Optimized |
| Cylinders | 12 |
| Bore | 145 mm (5.7 in) |
| Stroke | 162 mm (6.4 in) |
| Displacement | 32.1 l (1959 inu00b3) |
| Note (1) | Net Power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler, and alternator with engine speed at 1,800 rpm. |
| Note (2) | No engine derating required up to 3048 m (10,000 ft) altitude. |
| Note (3) | Meets China Nonroad Stage III emission standards equivalent to U.S. EPA Tier 2. |
| Cat Water Delivery System (WDS) | |
|---|---|
| Maximum water flow | 6814 l/min (1800 gal(US)/min) |
| Water per spray head (minimum) | 132.5 l/min (35 gal(US)/min) |
| Water per spray head (maximum) | 2271 l/min (600 gal(US)/min) |
| Spray head opening range (minimum) | 1 mm (0.04 in) |
| Spray head opening range (maximum) | 19 mm (0.75 in) |
| Maximum size debris flushed through spray head | 19 mm (0.75 in) |
| Spray system hydraulic tank capacity | 27.5 l (7.25 gal (US)) |
| Maximum number of rear spray heads | 5 |
| Minimum number of rear spray heads (recommended 3) | 2 |
| Minimum number of front/side spray heads | 2 |
| Maximum number of front/side spray heads | 0 |
| Maximum water from cannon (idle) | 2271 l/min (600 gal(US)/min) |
| Maximum water from cannon (high idle) | 6246 l/min (1650 gal(US)/min) |
| Maximum cannon spray distance | 61 m (200 ft) |
| Type | Wet water pump/hydraulic motor coupling |
| Note | Operator selectable coverage: 0.1 - 0.8 L/mu00b2 (4 kph - 40 kph) / 0.05 - 0.2 gal/ftu00b2 (3 mph - 25 mph). Coverage rates above 0.6 L/mu00b2 may not be available at higher speeds depending on head count and configuration. |
| Note (1) | Spray head opening is automatically controlled by the system to achieve Auto Mode Coverage or manual mode flow rate. |
| Note (2) | The Auto Mode setting controls water coverage and automatically adjusts to the number of spray heads being used u2014 independent of ground speed. This is an exclusive feature designed into the Cat WDS software to help water more efficiently. Water flow is continually adjusted during operation to conserve water and achieve desired coverage and flow rate. |
| Note (3) | Alternatively, manual mode allows the operator to set a water flow rate that is constant regardless of ground speed. This mode is not recommended for daily operation and will reduce watering efficiency and may increase fuel usage. |
| Note (4) | Spray heads on competitive water distribution systems require tools and maintenance to change flow and spray pattern. Caterpillar is the only company to have variable active spray heads to regulate water spray. |
| Note (5) | Cannon performance depends on nozzle orifice and pipe size. |
| Tank Configurations | |
|---|---|
| Water Tank Capacity | up to 75 700 L (20,000 gal) |
| Operating Specifications | |
|---|---|
| Top Speed - Loaded | 67.1 km/h (41.7 mile/h) |
| Note | Water Tank Capacity Range: 69 700 - 75 700 L (18,400 - 20,000 gal) |
| Tank Configurations | |
|---|---|
| Note | Multiple tank configurations are offered based on customer preference and regional locations. Water Tank Capacity Range: 75 400 - 75 700 L (19,900 - 20,000 gal) |
| Machine Weight (with water tank full) | 315,365 - 327,964 lb / 143 047 - 148 762 kg |
| Empty Machine Operating Weight (without water / with fuel) | 151,204 - 153,221 lb / 68 585 - 69 500 kg |
| Water Tank - Max Empty Weight (no WDS) | 42,983 - 44,092 lb / 19 497 - 20 000 kg |
| Note (1) | Cat branded tanks include additional features and options commonly selected by customers in the industry. Splash guards, fill chute, and rock ejectors are standard. |
| Operating Specifications | |
|---|---|
| Note (2) | Operator selectable coverage: 0.2-0.8 L/mu00b2 (4 kph - 40 kph) / 0.5-0.2 gal/ftu00b2 (3 mph - 25 mph) |
| Tank Configurations | |
|---|---|
| Note (2) | Hoist cylinder mounting on all tank offerings enhances serviceability. |
| Weights - Approximate | |
|---|---|
| Target Gross Machine Weight | 163360 kg (360148 lb) |
| Chassis Weight | 82022 kg (180827 lb) |
| Transmission | |
|---|---|
| Forward - 1 | 10.9 km/h (6.8 mile/h) |
| Forward - 2 | 14.8 km/h (9.2 mile/h) |
| Forward - 3 | 20.1 km/h (12.6 mile/h) |
| Forward - 4 | 27.1 km/h (16.9 mile/h) |
| Forward - 5 | 36.8 km/h (22.9 mile/h) |
| Forward - 6 | 49.4 km/h (30.7 mile/h) |
| Forward - 7 | 67.1 km/h (41.7 mile/h) |
| Reverse | 12.1 km/h (7.5 mile/h) |
| Note | Maximum travel speeds with standard 27.00R49 (E4) tires. |
| Final Drives | |
|---|---|
| Differential Ratio | 2.74:1 |
| Planetary Ratio | 7.00:1 |
| Total Reduction Ratio | 19.16:1 |
| Braking System | |
|---|---|
| Brake Surface - Front | 2787 cmu00b2 (432 inu00b2) |
| Brake Surface - Rear | 102116 cmu00b2 (15828 inu00b2) |
| Brake Standards | ISO 3450:2011 |
| Body Hoists | |
|---|---|
| Body Raise Time - High Idle | 15 s (15 s) |
| Body Lower Time - Float | 13 s (13 s) |
| Body Lower Time - High Idle | 13 s (13 s) |
| Weight Distributions - Approximate | |
|---|---|
| Front Axle - Empty | 46 % (46 %) |
| Front Axle - Loaded | 30 % (30 %) |
| Rear Axle - Empty | 54 % (54 %) |
| Rear Axle - Loaded | 70 % (70 %) |
| Suspension | |
|---|---|
| Effective Cylinder Stroke - Front | 318 mm (12.5 in) |
| Effective Cylinder Stroke - Rear | 165 mm (6.5 in) |
| Rear axle - Oscillation | 5.4 u00b0 (5.4 u00b0) |
| Steering | |
|---|---|
| Steering Standards | ISO 5010:2007 |
| Steer Angle | 30.5 u00b0 (30.5 u00b0) |
| Turning Diameter - Front | 25.3 m (83 ft) |
| Turning Circle - Clearance Diameter | 28.4 m (93.2 ft) |
| Tires | |
|---|---|
| Standard Tire | 27.00R49 (E4) |
| Note (1) | Productive capabilities of the 777 truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
| Service Refill Capacities | |
|---|---|
| Fuel Tank (1) | 1140 l (300 gal (US)) |
| Cooling System | 212 l (56 gal (US)) |
| Crankcase | 115 l (30 gal (US)) |
| Differentials | 222 l (59 gal (US)) |
| Steering System - Including Tank | 60 l (16 gal (US)) |
| Brake Hoist System | 420 l (110 gal (US)) |
| Torque Converter - Transmission System | 125 l (33 gal (US)) |
| Cab | |
|---|---|
| Air Conditioning | 42789 Btu/kWh (18390 Btu/lb) |
| Heater / Defroster | 11070 kJ/kg (43930 Btu) |
| ROPS Standards (1) | Rollover protective structure (ROPS) cab offered by Caterpillar meets ISO 3471:2008 for operator and ISO 13459:2012 for trainer. |
| FOPS Standards | Falling objects protective structure (FOPS) meets ISO 3449:2005 Level II for operator and ISO 13459:2012 Level II FOPS for trainer. |
| Note (1) | The dynamic operator sound pressure level is 80 dB(A) as per ISO 6396:2008 for cab offered by Caterpillar. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- POWERTRAIN
- Autostall
- Engine idle shutdown
- Air-To-Air Aftercooler (ATAAC)
- Air cleaner with precleaner (2)
- Automatic cold mode idle control
- Electric priming pump
- Electric cold weather start (two starters and four batteries)
- Ether starting aid
- Exhaust, muffler
- Fuel filter/water separator
- Turbocharger (2)
- Braking system:
– Extended Life Brakes
– Brake wear indicator
– Automatic Retarder Control (ARC) (utilizes oil-cooled, multiple disc brakes)
– Brake release motor (towing)
– Manual retarder (utilizes oil-cooled, multiple disc brakes)
– Oil-cooled, multiple disc (front/rear)
– Parking
– Secondary
– Service - Transmission
– Auto neutral idle
– APECS Software
– ECPC - Part Throttle Shifting
– 7-speed automatic powershift with Torque Shift Management Electronic Clutch Pressure Control
– Body up-shift inhibitor
– Directional shift management
– Downshift inhibitor
– Neutral start switch
– Neutral coast inhibitor
– Reverse shift inhibitor
– Reverse neutralizer during dumping
– Programmable top gear selection
- SUSPENSION SYSTEMS
- Suspension, rear
- ELECTRICAL
- Alarm, backup
- Alternator, 115 ampere
- Auxiliary jump start receptacle
- Batteries, maintenance-free, 12V (4), 190 amp-hour
- Electrical system, 25 AMP, 24V to 12V converter
- Lighting system
– Backup light (halogen)
– Directional signals/hazard warning, (front and rear LED)
– Headlights, (halogen) with dimmer
– Payload, indicator lights
– Operator access courtesy lights
– Side profile lights
– Stop/tail lights (LED)
– Service lights
- OPERATOR ENVIRONMENT
- Air conditioning
- Ashtray and cigarette lighter
- Coat hook
- Cup holders (4)
- Diagnostic connection port, 24V
- Entertainment Radio Ready
– 5 amp converter
– Speakers
– Antenna
– Wiring harness - Gauges/indicators
– Brake oil temperature gauge
– Coolant temperature gauge
– Hour meter
– Tachometer
– Engine overspeed indicator
– Fuel level
– Speedometer with odometer
– Transmission gear indicator - Heater/defroster (11 070 kCal/43,930 BTU)
- Auto temp control
- Fluid level monitoring
- Hoist lever
- Horn, electric
- Light – dome
- Light – courtesy
- Load counter, automatic
- Advisor display
- VIMS
- TPMS
- Foot rest
- Mirrors – heated
- Power port, 24V and 12V (2)
- ROPS cab, insulated/sound suppressed
- Cat Comfort Series III
– Full air suspension
– Retractable 3-point seat belt with shoulder harness - Steering wheel, padded, tilt and telescopic
- Storage compartment
- Sun visor
- Throttle lock
- Window, right side, hinged access/egress
- Electric left side window control
- Windshield wiper (intermittent) and washer
- Tinted, laminated glass
- CAT TECHNOLOGY PRODUCTS
- Adaptive economy mode
- Object detection (4 cameras, 4 radars)
- Product Link™ Ready (Level 1)
- TKPH/TMPH (Tons Kilometer Per Hour/ Tons Mile Per Hour)
- Work Area Vision System (WAVS)
- Cat MineStar™: Level 1 – Basic (Equipment Tracking)*
- *Basic connectivity package comes standard on all Cat Water Solutions trucks with a 6-month complimentary service-based offering
- GUARDS
- Engine crankcase
- Driveline
- Fan and A/C
- FLUIDS
- Extended Life Coolant to –35° C (–30° F)
- OTHER STANDARD EQUIPMENT
- Body mounting group
- Body safety pin (secures body in up position)
- Body down indicator
- CD-ROM parts book
- Center-mounted rims
- Fuel tank (1136 L/300 gal)
- Ground level battery disconnect
- Ground level engine shutdown
- Ground level grease fittings
- Reservoirs (separate)
– Brake/hoist
– Steering
– Transmission/torque converter - Rims 19.5 × 49
- Rock ejectors
- Supplemental steering (automatic)
- Tie down eyes
- Tow hooks (front)/Tow pin (rear)
- Vandalism protection locks
- Wiggins fast fuel
- Traction Control System (TCS) (new version)
- Attachment Zone
- CAT WATER DELIVERY SYSTEM (WDS)
- Controls: Factory installed and integrated into cab
- Water System Monitor: integrated into cab, programmable spray configurations, automatic diagnostic messages
- Variable Hydraulic Pump Drive: 6814 L/min (1,800 gal/min) at speeds of 4 kph to 40 kph (3 to 25 mph) with auto shut-off and soft startup
- Stainless Steel Spray Heads: maintenance free, patented design resists corrosion
- Independent Hydraulic Cooling System: minimizes overheating
- Water Cannon: hydraulically controlled, integrated joystick with cab controls, optional nozzles
- Parts and service available through global Cat dealer network
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPTIONAL EQUIPMENT
- Cab precleaner
- Cat Engine Brake
- Clustered grease fittings
- Cold weather packages
- Fluid fill service center
- HID lights
- Mirrors, convex
- Mirrors, heated
- Spare rim
- Visibility package (meets ISO 5006 requirements)
- Wheel chocks
- Work Area Vision System (WAVS)
- CAT TECHNOLOGY PRODUCTS
- Cat MineStar™: Level 2 – Premium (Equipment Tracking + Production Recording)
- CAT WATER DELIVERY SYSTEM (WDS)
- Optional WDS Camera System includes a camera to view spray bar on back of water tank and two cameras on top of tank for water fill positioning.
- Water Tank Offerings with Options
- Tanks are offered by local 3rd party providers with customization based on water application and regional customer requirements. Tie offs, ladders, splash guards, fill chute, rock ejectors, cannon selection, and additional options are available. Cat dealer or local tank manufacturer installation. Contact your local Cat dealer or Caterpillar OEM Solutions for recommendations on local tank providers and available options.
