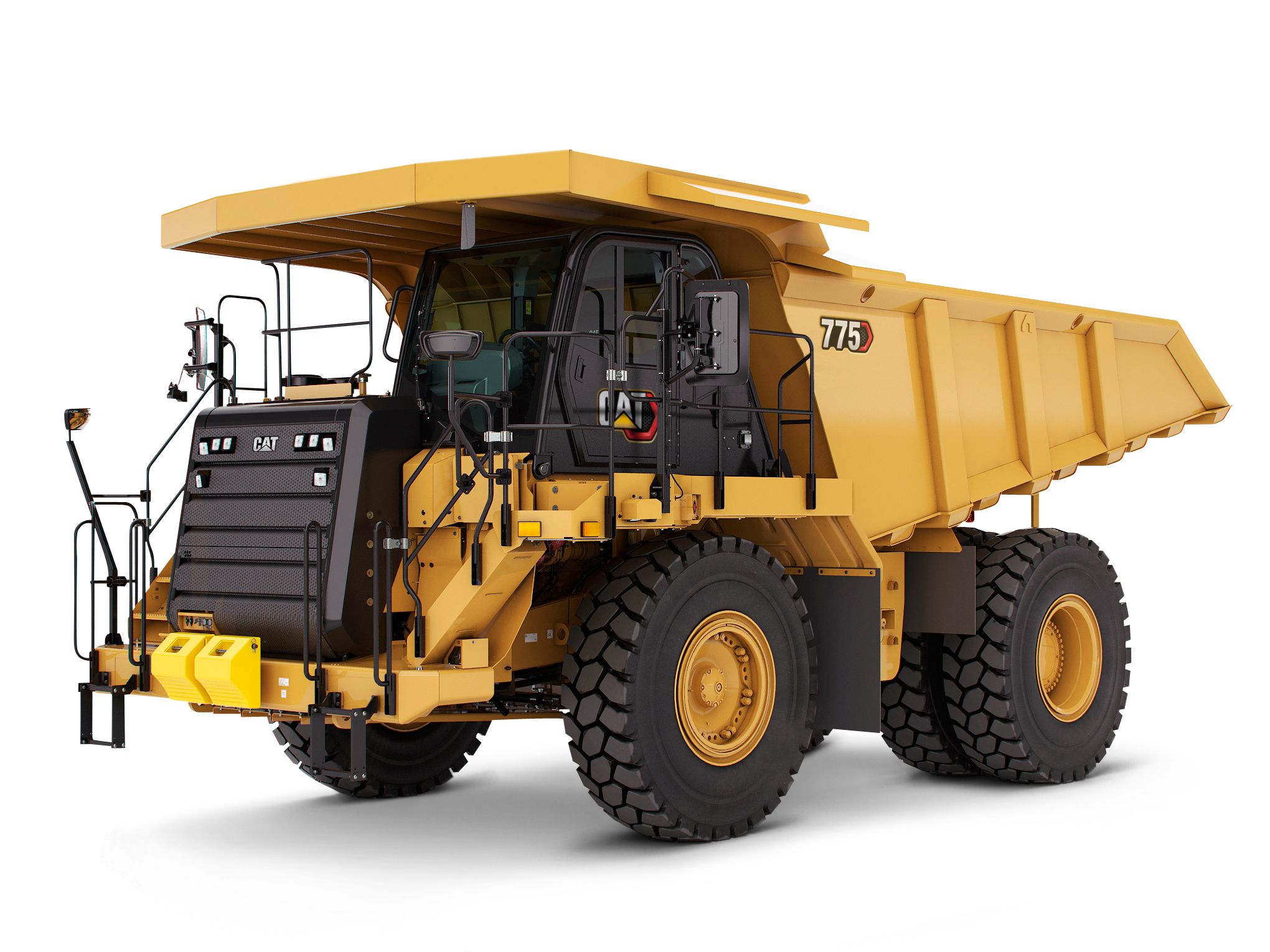

775 Off-Highway Truck
In addition to quality, Cat Off-Highway Trucks will lower your costs with seven different ways to help you conserve fuel. We offer you two customizable fuel economy modes that will let you choose your level of savings. With the 775 trucks in your haul fleets, you can be more productive, spend less time on maintenance, and support the environment with new levels of eco performance. Your crew will appreciate all the new comfort and conveniences in our updated cab. Simply put, Cat 775 trucks can and will make a positive difference to both your business and people.
- ACHIEVE GREATER PRODUCTIVITY
- BOOST FUEL EFFICIENCY
- DESIGNED FOR SAFETY
- WORK IN COMFORT
- TECHNOLOGY THAT GETS WORK DONE
- REDUCED MAINTENANCE COSTS AND OTHER COSTS
- APPLICATION VERSATILITY
| Engine | |
|---|---|
| Engine Model | Cat® C27 |
| Rated Engine Speed | 2000 r/min (2000 r/min) |
| Gross Power - SAE J1995:2014 | 615 kW (825 hp) |
| Net Power - SAE J1349:2011 | 584 kW (783 hp) |
| Net Power - ISO 9249 | 590 kW (791 hp) |
| Net Power - 80/1269/EEC | 590 kW (791 hp) |
| Bore | 137 mm (5.4 in) |
| Stroke | 152 mm (6 in) |
| Displacement | 27 l (1648 inu00b3) |
| Peak Torque - Speed | 1300 r/min (1300 r/min) |
| Engine Power - ISO 14396:2002 | 607 kW (813 hp) |
| Net Torque | 3896 N·m (2874 ft-lb) |
| Note (3) | No engine derating required up to 3810 m (12,500 ft) for Tier 2 Equivalent. |
| Note (1) | Power rating applies at 2,000 rpm when tested under the specified condition for the specified standard. |
| Note (2) | Ratings based on SAE J1995 standard air conditions of 25u00b0 C (77u00b0 F) and 100 kPa (29.61 Hg) barometer. Power based on fuel having API gravity of 35 at 16u00b0 C (60u00b0 F) and an LHV of 42 780 kJ/kg (18,390 BTU/lb) when engine used at 30u00b0 C (86u00b0 F). |
| Weights - Approximate | |
|---|---|
| Maximum Gross Vehicle Weight | 111812 kg (246503 lb) |
| Operating Specifications | |
|---|---|
| Nominal Payload Class (100%) | 64.6 t (71.3 ton (US)) |
| Top Speed - Loaded | 67.6 km/h (42 mile/h) |
| Body Capacity - SAE 2:1 | 42.23 mu00b3 (55.23 ydu00b3) |
| Maximum Allowable Payload (120%)* | 77.5 t (85.5 ton (US)) |
| Note (2) | * Refer to the Caterpillar 10/10/20 Payload Policy for maximum gross machine weight limitations. |
| Maximum Working Payload (110%) | 71.1 t (78.3 ton (US)) |
| Note (1) | Capacity with Dual Slope body u2013 no liner. |
| Target Payload (100%) | 64.6 t (71.3 ton (US)) |
| Transmission | |
|---|---|
| Forward - 1 | 10.8 km/h (6.7 mile/h) |
| Forward - 2 | 15.1 km/h (9.4 mile/h) |
| Forward - 3 | 20.4 km/h (12.7 mile/h) |
| Forward - 4 | 27.4 km/h (17 mile/h) |
| Forward - 5 | 37 km/h (23 mile/h) |
| Forward - 6 | 50.1 km/h (31.1 mile/h) |
| Forward - 7 | 67.6 km/h (42 mile/h) |
| Reverse | 14.1 km/h (8.8 mile/h) |
| Note | Maximum travel speeds with standard 24.00R35 (E4) tires. |
| Final Drives | |
|---|---|
| Differential Ratio | 3.64:1 |
| Planetary Ratio | 4.80:1 |
| Total Reduction Ratio | 17.49:1 |
| Brakes | |
|---|---|
| Brake Surface - Front | 655 cmu00b2 (25.7 inu00b2) |
| Brake Surface - Rear | 61269 cmu00b2 (9497 inu00b2) |
| Brake Standards | ISO 3450:2011 |
| Body Hoists | |
|---|---|
| Pump Flow - High Idle | 448 l/min (118 gal/min) |
| Relief Valve Setting - Raise | 17250 kPa (2502 psi) |
| Relief Valve Setting - Lower | 3450 kPa (500 psi) |
| Body Raise Time - High Idle | 9.5 s (9.5 s) |
| Body Lower Time - Float | 13 s (12.5 s) |
| Body Power Down - High Idle | 13 s (13 s) |
| Capacity - Dual Slope - 100% Fill Factor | |
|---|---|
| Struck | 32.6 mu00b3 (42.7 ydu00b3) |
| Heaped (SAE 2:1)* | 42.2 mu00b3 (55.5 ydu00b3) |
| Note (2) | *ISO 6483:1980 |
| Note (1) | Contact your local Cat dealer for body recommendation. |
| Capacity - Flat Floor - 100% Fill Factor | |
|---|---|
| Struck | 32.3 mu00b3 (42.2 ydu00b3) |
| Heaped (SAE 2:1)* | 42.2 mu00b3 (55.2 ydu00b3) |
| Note (1) | Contact your local Cat dealer for body recommendation. |
| Note (2) | *ISO 6483:1980 |
| Weight Distributions - Approximate | |
|---|---|
| Front Axle - Empty | 52 % (52 %) |
| Front Axle - Loaded | 34 % (34 %) |
| Rear Axle - Empty | 48 % (48 %) |
| Rear Axle - Loaded | 66 % (66 %) |
| Suspension | |
|---|---|
| Empty Loaded Cylinder Stroke Front | 234 mm (9.2 in) |
| Empty Loaded Cylinder Stroke Rear | 149 mm (5.8 in) |
| Rear Axle - Oscillation | 8.1u00b0 |
| Service Refill Capacities | |
|---|---|
| Fuel Tank | 795 l (210 gal (US)) |
| Cooling System | 154 l (40.6 gal (US)) |
| Differential - Final Drives | 140 l (37 gal (US)) |
| Steering Tank | 36 l (9.5 gal (US)) |
| Steering System - Including Tank | 54 l (14 gal (US)) |
| Torque Converter - Transmission System - HRC | 70 l (18 gal (US)) |
| Torque Converter - Transmission System - LRC | 61 l (16 gal (US)) |
| Crankcase | 90 l (24 gal (US)) |
| Brake/Hoist Hydraulic Tank | 176 l (46.5 gal (US)) |
| Brake Hoist System | 322 l (85 gal (US)) |
| Tires | |
|---|---|
| Note (1) | Productive capabilities of the 775G truck are such that, under certain job conditions, TKPH (TMPH) capabilities of standard or optional tires could be exceeded and, therefore, limit production. |
| Note (2) | Caterpillar recommends the customer evaluate all job conditions and consult the tire manufacturer for proper tire selection. |
| Standard Tire | 24.00R35 (E4) |
| ROPS | |
|---|---|
| FOPS Standards | Falling Objects Protective Structure (FOPS) meets ISO 3449:2005 Level II FOPS criteria. |
| ROPS Standards | Rollover Protective Structure (ROPS) for cab offered by Caterpillar meets ISO 3471:2008 ROPS criteria. |
| Sound | |
|---|---|
| Sound Standards (1) | The operator Equivalent Sound Pressure Level (Leq) is 76 dB(A) when SAE J1166 FEB2008 is used to measure the value for an enclosed cab. This is a work cycle sound exposure level. The cab was properly installed and maintained. The test was conducted with the cab doors and the cab windows closed. |
| Sound Standards (2) | The exterior sound pressure level for the standard machine measured at a distance of 15 m (49 ft) according to the test procedures specified in SAE J88:2008, midu2011gear moving operation is 86 dB(A). |
| Sound Standards (3) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in a noisy environment. |
| Steering | |
|---|---|
| Turning Diameter - Front | 22 m (72.2 ft) |
| Steering Standards | ISO 5010:2007 |
| Steer Angle | 31 u00b0 (31 u00b0) |
| Turning Circle - Clearance Diameter | 25 m (82 ft) |
