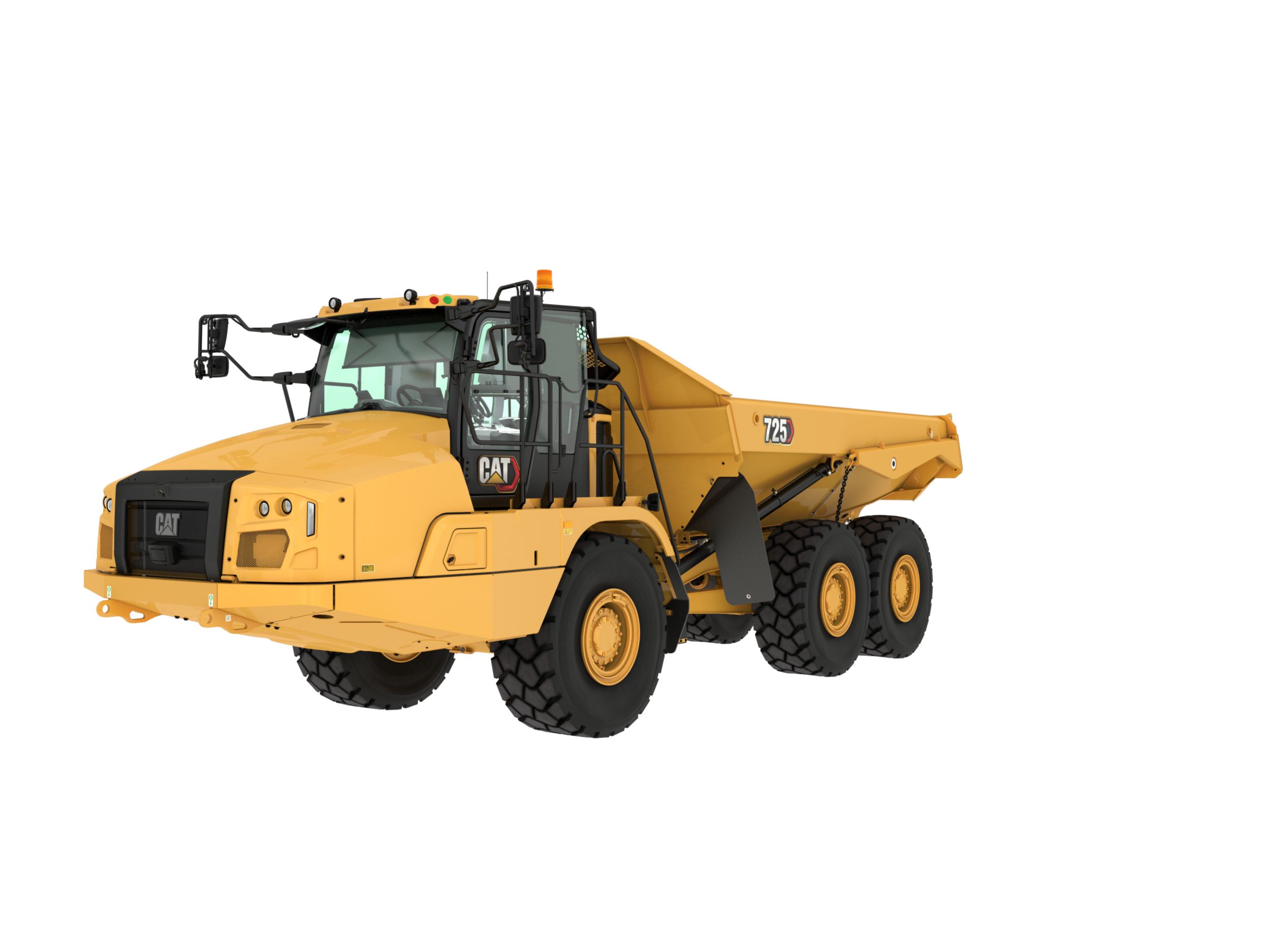

725 Articulated Truck
MAXIMIZE PERFORMANCE
INDUSTRIAL GRADE TRANSMISSION
AUTOMATIC CONTROLS
POWERFUL EFFICIENCY
WORK IN COMFORT
BUILT TO PERFORM
HEAVY DUTY CONSTRUCTION
TECHNOLOGY THAT GETS WORK DONE
Engine | |
---|---|
Engine Model | Cat C9.3 |
Bore | 115 mm (4.5 in) |
Stroke | 1149 mm (45.2 in) |
Displacement | 9.3 l (567.5 inu00b3) |
Peak Engine Torque Gross (SAE J1995) | 1729 N·m (1275 ft·lbf) |
Gross Power - SAE J1995 | 255 kW (342 hp) |
Net Power - ISO 14396 | 252 kW (338 hp) |
Engine Model - U.S. EPA Tier 4 Final/EU Stage IV | Cat® C9.3 |
No Engine De-rating Below | 914 m (3000 ft) |
Peak Engine Torque Net (SAE J1349) | 1712 N·m (1263 ft·lbf) |
Net Power - SAE J1349 | 249 kW (334 hp) |
Peak Engine Torque Speed | 1200 r/min (1200 r/min) |
Weights | |
---|---|
Rated Payload | 24 t (26.5 ton (US)) |
Body Capacities | |
---|---|
Heaped (SAE 2:1) | 15 mu00b3 (19.6 ydu00b3) |
Struck | 11 mu00b3 (14.4 ydu00b3) |
Tailgate Heaped SAE 2:1 | 15.6 mu00b3 (20.4 ydu00b3) |
Tailgate Struck | 11.1 mu00b3 (14.5 ydu00b3) |
Transmission | |
---|---|
Forward - 1 | 8.1 km/h (5 mT/hr) |
Forward - 2 | 15.2 km/h (9.4 mT/hr) |
Forward - 3 | 23.2 km/h (14.4 mT/hr) |
Forward - 4 | 35.5 km/h (22.1 mT/hr) |
Forward - 5 | 49.4 km/h (30.7 mT/hr) |
Forward - 6 | 58.4 km/h (36.3 mT/hr) |
Reverse - 1 | 8.9 km/h (5.5 mT/hr) |
Sound Levels | |
---|---|
Interior Cab | 69 dB(A) (69 dB(A)) |
Operating Weights | |
---|---|
Total - Loaded | 47122 kg (103886 lb) |
Rear Axle - Rated Load | 10750 kg (23699 lb) |
Total - Empty | 23122 kg (50975 lb) |
Total - Rated Load | 24000 kg (52910 lb) |
Center Axle - Loaded | 15397 kg (33944 lb) |
Front Axle - Rated Load | 2500 kg (5511 lb) |
Center Axle - Rated Load | 10750 kg (23699 lb) |
Center Axle - Empty | 4646 kg (10242 lb) |
Rear Axle - Loaded | 15176 kg (33457 lb) |
Front Axle - Loaded | 16549 kg (36484 lb) |
Rear Axle - Empty | 4426 kg (9757 lb) |
Front Axle - Empty | 14050 kg (30974 lb) |
Body Plate Thickness | |
---|---|
Side Plates | 11 mm (0.43 in) |
Front Plate | 7 mm (0.28 in) |
Base Plate | 13 mm (0.51 in) |
Service Refill Capacities | |
---|---|
Fuel Tank | 412 l (91 gal (US)) |
Cooling System | 83 l (18 gal (US)) |
Hydraulic System | 110 l (29.1 gal (US)) |
Engine Crankcase | 38 l (8 gal (US)) |
Transmission | 47 l (10 gal (US)) |
Final Drives/Differential | 125 l (33 gal (US)) |
Output Transfer Gear Box | 24 l (5 gal (US)) |
DEF Tank | 20 l (4 gal (US)) |
Body Hoist | |
---|---|
Raise Time | 10 s (10 s) |
Lower Time | 8 s (8 s) |
Steering | |
---|---|
Lock to Lock | 4.75 seconds @ 60 rpm |
Standards | |
---|---|
Brakes | ISO 3450 u2013 2011 |
Cab - FOPS | ISO 3449 Level II u2013 2008 |
Cab - ROPS | ISO 3471 u2013 2008 |
Steering | ISO 5010 u2013 2007 |
Body Plate | |
---|---|
Type | High strength Brinell HB450 wear resistant steel |
Turning Circle | |
---|---|
Turning Dimensions - Inside Radius | 3879 mm (153 in) |
Turning Dimensions - Aisle Width | 5332 mm (210 in) |
Turning Dimensions - SAE Turning Radius | 7470 mm (294 in) |
Turning Dimensions - Clearance Radius | 8075 mm (318 in) |
Turning Dimensions - Steer Angle - Left/Right | 45u00b0 |
Note | Dimensions are for machines equipped with 23.5R25 tires. |
Optimal Loader/Truck Pass Matching | |
---|---|
Wheel Loader: 950M - Passes | 5 |
Wheel Loader: 962M - Passes | 4-5 |
Wheel Loaders: 966M/966M XE - Passes | 4 |
Hydraulic Excavators: 336F/336F XE - Passes | 5-6 |
Wheel Loaders: 972M/972M XE - Passes | 3-4 |
Hydraulic Excavators: 349F/349F XE - Passes | 4-5 |
Engine | |
---|---|
Note (1) | The power ratings apply at rated speed of 1,700 rpm when tested under the conditions for the specified standard. |
Emissions | The reference to Tier 4 Final/Stage IV includes U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), as well as Korea Tier 4 Final emission standards. |
Note (3) | Net power when the fan is at maximum speed is 249 kW (334 hp) per the SAE reference conditions. |
Note (2) | The net power advertised is the power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler and fan at minimum speed. |
Sound Levels | |
---|---|
Note (1) | The declared dynamic operator sound pressure level is 69u00b12 dB(A) when "ISO 6396:2008" is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the maximum cooling fans speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
Engine | |
---|---|
Note (4) | DEF used in Cat SCR systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1. ISO 22241-1 requirements are met by many brands of DEF, including those that carry the AdBlue or API certifications. |
Service Refill Capacities | |
---|---|
Steering/Hoist Hydraulic System | 110 l (24 gal (US)) |
Final Drive - Each | 7.5 l (1.6 gal (US)) |
Standard Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPERATOR ENVIRONMENT
- Air conditioning with R134A refrigerant
- Machine operation monitoring system includes:
– Action lamp
– Engine oil pressure
– Primary steering system
– Left and right turn signal
– High beam
– Coolant temperature
– Tachometer
– Parking brake
– Fuel level
– Transmission oil temperature
– Brake system
– Transmission hold
– Hoist control
– Hydraulic system
– Charging system
– Retarder
– Transmission fault
– Traction control system
– Check engine lamp - Windows opening both sides, tinted
- Storage:
– Cup holder
– Flask receptacle
– Under seat storage
– Door pocket
– Behind operator seat storage
– Coat hook - Glass windows:
– Front, laminated and tinted
– Sides and rear, toughened and tinted - Seats:
– Operator: fully adjustable, air suspension
– Trainer: padded with lap belt - Tilt and telescopic steering wheel
- Retractable belt: Operator seat and second seat
- Adjustable air vents
- Heater and defroster with four-speed fan
- Sun visor
- Touchscreen display incorporating the rearview camera video feed
- Windshield wiper and washer, two speed, intermittent (front)
- Combined gear selection and hoist control lever
- Windshield wiper and washer, two speed (rear)
- Liquid Crystal Display (LCD):
– Alert indicator
– Selected gear and direction
– Speed or auto shift
– Review Operation and Maintenance Manual (OMM)
– Primary steering failure warning
– Seat belt warning
– Secondary steering failure warning
– Diesel Particulate Filter (DPF) regeneration filter
– Machine Security System (MSS) ready
– Secondary steering energy source engaged
– Hour meter
– Retarder active - Secondary steering – electro hydraulic
- Mirrors: extensive arrangement for improved visibility
- CAT TECHNOLOGIES
- Product Link
- Cat Detect with Stability Assist
- ELECTRICAL AND LIGHTING
- Electrical system: 24-volt, 5A 24- to 12-volt converter
- Lighting systems:
– Cab interior
– Two head lamps
– Two width marker
– Two reversing
– Work light/cab access light
– Two stop/tail lights
– Front and rear direction indicators - Main disconnect switch
- Horn
- Batteries (two) maintenance free
- Remote starting receptacle (cables not included)
- POWER TRAIN
- Differentials: standard with automatic clutched inter- and cross-axle differential locks
- Cat Clean Emission Module (CEM) and exhaust aftertreatment package
- Cat C9.3 engine
- Three axle, six-wheel drive
- Retarder: engine compression brake
- Dual circuit oil immersed, enclosed brakes – all wheels
- Auto shift six-speed forward and single speed reverse transmission
- SAFETY
- Reverse alarm
- Rearview camera
- ROPS/FOPS cab
- GUARDS
- Front dump body spill guard, integral part of fabricated body
- Crankcase
- Axle
- Rear window
- Radiator
- OTHER STANDARD EQUIPMENT
- Vandalism protection: lockable caps
- Mud flaps: wheel arch and body mounted with transportation tiebacks
- Sound suppression (only standard in Europe)
- S·O·S sampling valves
- Tires, six 23.5R25
Optional Equipment
- NOTE
- Standard and optional equipment may vary. Consult your Cat dealer for details.
- OPTIONAL EQUIPMENT
- Cold weather coolant –51° C (–60° F)
- Infrared glass – high ambient cab
- Auto lube installation for automatic greasing of bearings
- Cold weather start attachment
- Bare chassis (no body) standard wheel base
- Roof mounted High Intensity Discharge (HID) work lights
- Product Link Elite: PLE641 (cellular). Product Link is optional.
- Heated/cooled seat
- Exhaust heated body
- Fuel additive – anti-waxing
- Flashing LED beacon
- Body liners
- Ether start
- Four-point seat belt
- Machine Security System (MSS)
- Cat Production Measurement payload monitoring system
- Sound suppression (only standard in Europe)
- Fast fuel fill
- Wheel chocks
- Engine block heater
- Heated rearview motorized mirrors
- Window blinds
- Bluetooth radio stereo system
- Scissor tailgate
