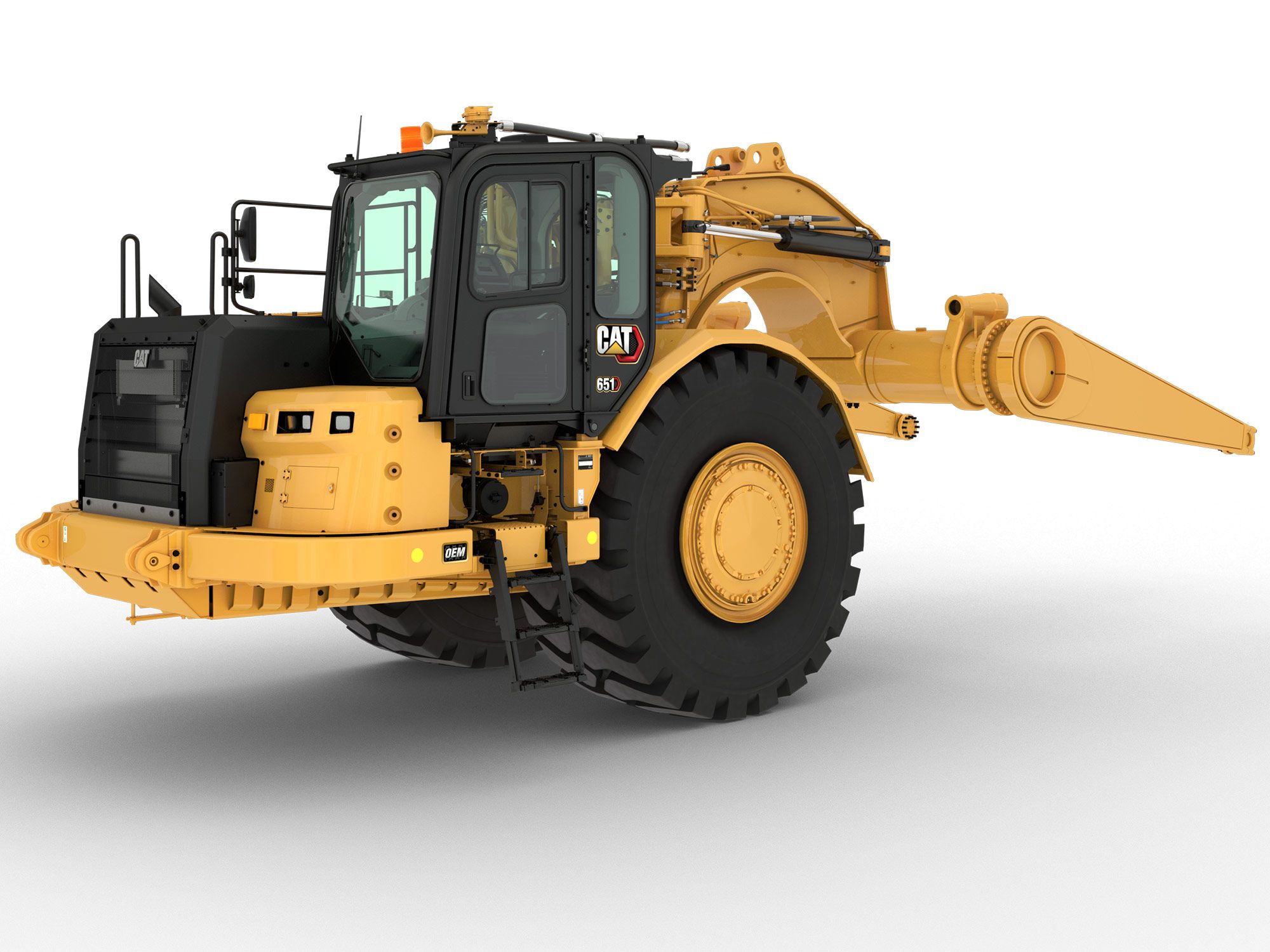

651 Partial Wheel Tractor-Scraper

CALCULATE FINANCE

With improvements in productivity combined with enhancements in operator comfort and new safety features (Powered Access System and effective wet disc brakes) this machine offers high returns on time and investment.

  • WORK IN COMFORT
  • EASY TO OPERATE
  • BE MORE PRODUCTIVE
  • DESIGNED FOR SAFETY
  • DEALER SUPPORT
Engine
Tractor Engine Cat® C18
Note Meets U.S. EPA Tier 4 Final or EU Stage V emission standards, or equivalent to U.S. EPA Tier 2, or equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Tractor Engine
Gross Power (SAE J1995) 475 kW (637 hp)
Net Power (SAE J1349/ISO 9249) 436 kW (592 hp)
Bore 145 mm (5.7 in)
Stroke 183 mm (7.2 in)
Displacement 18.1 l (1105 inu00b3)
Transmission
Top Speed - Loaded 56.1 km/h (34.9 mile/h)
1 Forward 5.7 km/h (3.5 mile/h)
2 Forward 10.5 km/h (6.5 mile/h)
3 Forward 12.5 km/h (7.8 mile/h)
4 Forward 17 km/h (10.6 mile/h)
5 Forward 22.8 km/h (14.2 mile/h)
6 Forward 30.9 km/h (19.2 mile/h)
7 Forward 41.4 km/h (25.7 mile/h)
8 Forward 56.1 km/h (34.9 mile/h)
Reverse 10.8 km/h (6.7 mile/h)
Steering
Width - 180u00b0 Turn - Right 13.6 m (44.6 ft)
Width - 180u00b0 Turn - Left 14.5 m (47.57 ft)
Steering Angle - Right 90
Steering Angle - Left 85
Standards
Brakes ISO 3450:2011
ROPS/FOPS ROPS: ISO 3471:2008 for up ton26 600 kg (58,643 lb). FOPS: ISO 3449:2005 Level II
Cab Seat Belt: SAE J386:AUG2012
Service Refill Capacities - Tractor
Fuel Tank 1628 l (430.1 gal (US))
Crankcase 38 l (10 gal (US))
Transmission 136 l (35.9 gal (US))
Differential 136 l (36 gal (US))
Final Drive - Each 29.5 l (6 gal (US))
Cooling System 88.6 l (23.4 gal (US))
Hydraulic Reservoir 150 l (39.6 gal (US))
Windshield Washer 5 l (0.5 gal (US))

Standard Equipment

  • NOTE
    • Standard and optional equipment may vary. Consult your Cat dealer for details.
  • POWERTRAIN
    • Transmission: 8-speed planetary powershift, ECPC control, APECS software, programmable top gear selection, transmission hold, differential lock, guard – power train, ground speed control, machine speed limit
    • Cat C18
    • Cat engine brake
    • Electric start, 24V
    • Fan, hydraulic
    • Ground level engine shutdown
    • Radiator
    • Guard, crankcase
    • Starting aid, ether
    • Braking system: primary and secondary, wet disc, hydraulic; parking, hydraulic-released, spring-applied
    • Throttle lock
  • ELECTRICAL
    • Alarm, backup
    • Alternator, 115 ampere
    • Batteries (4), 12V, 1,000 CCA, maintenance free
    • Electrical system, 24V
    • Lighting system: headlights (halogen), turn signals with hazard functions (LED)
    • Turn signals with hazard function
    • Starting/charging receptacle
  • OPERATOR ENVIRONMENT
    • HVAC system, heat, AC, defrost
    • Thermostat control of HVAC system
    • Coat hook
    • Lunchbox platform with holding strap
    • Diagnostic connection (2)
    • 12V power ports (2)
    • Differential lock (1)
    • Dome courtesy light
    • Horn, electric
    • T-handle implement control
    • Radio ready
    • ROPS/FOPS cab, pressurized
    • Keypad switches: rear engine start; throttle lock; wipers/washers; hazard lights; worklights on, off; information mode; messenger display; safety tab rocker switches, parking brake
    • Seat belt, static two-piece
    • Windows, sliding
    • Windows, laminated, zipped in
    • Wrist Rest/Grab Handle
    • Windshield wipers, front and rear windows, includes washers
    • Door lock
    • Messenger display gauges, warnings include: coolant temp; engine oil temp; hydraulic oil temp; DPF temp; fuel level; park brake; implement lockout; brake system, regeneration required; throttle lock; system voltage; secondary steering; bail down; differential lock; apron float; transmission hold; high beam lights; action lamp; engine speed, rpm; gear selection; DPF fill levels
    • Safety tab rocker switches
    • Seat: Cat Advanced Ride Management (ARM), Cat Comfort Series III, rotates 30 degrees
    • Steering wheel, tilt, telescoping, padded
    • Windows, right side emergency egress
    • Messenger display
  • FLUIDS
    • Extended life coolant to -37° C (-34° F)
  • OTHER EQUIPMENT
    • Accumulators (brake and cushion hitch) with Canadian Registration Number (CRN)
    • Fast oil change
    • Vandalism locks
    • Steering locks
    • Heater, engine coolant 120V

Optional Equipment

  • POWERTRAIN
    • Air cleaner, powered precleaner
  • OPERATOR ENVIRONMENT
    • Powered access ladder
  • OTHER ATTACHMENTS
    • Camera arrangement: Work Area Vision System (WAVS)
    • Cab beacon
    • Air horn
    • Air horn and beacon
    • Kingbolt housing
    • Rear wheel arrangement (set of 2)
    • Scraper draft arm package
    • Steering cylinder group (set of 2)
    • Wiring group
