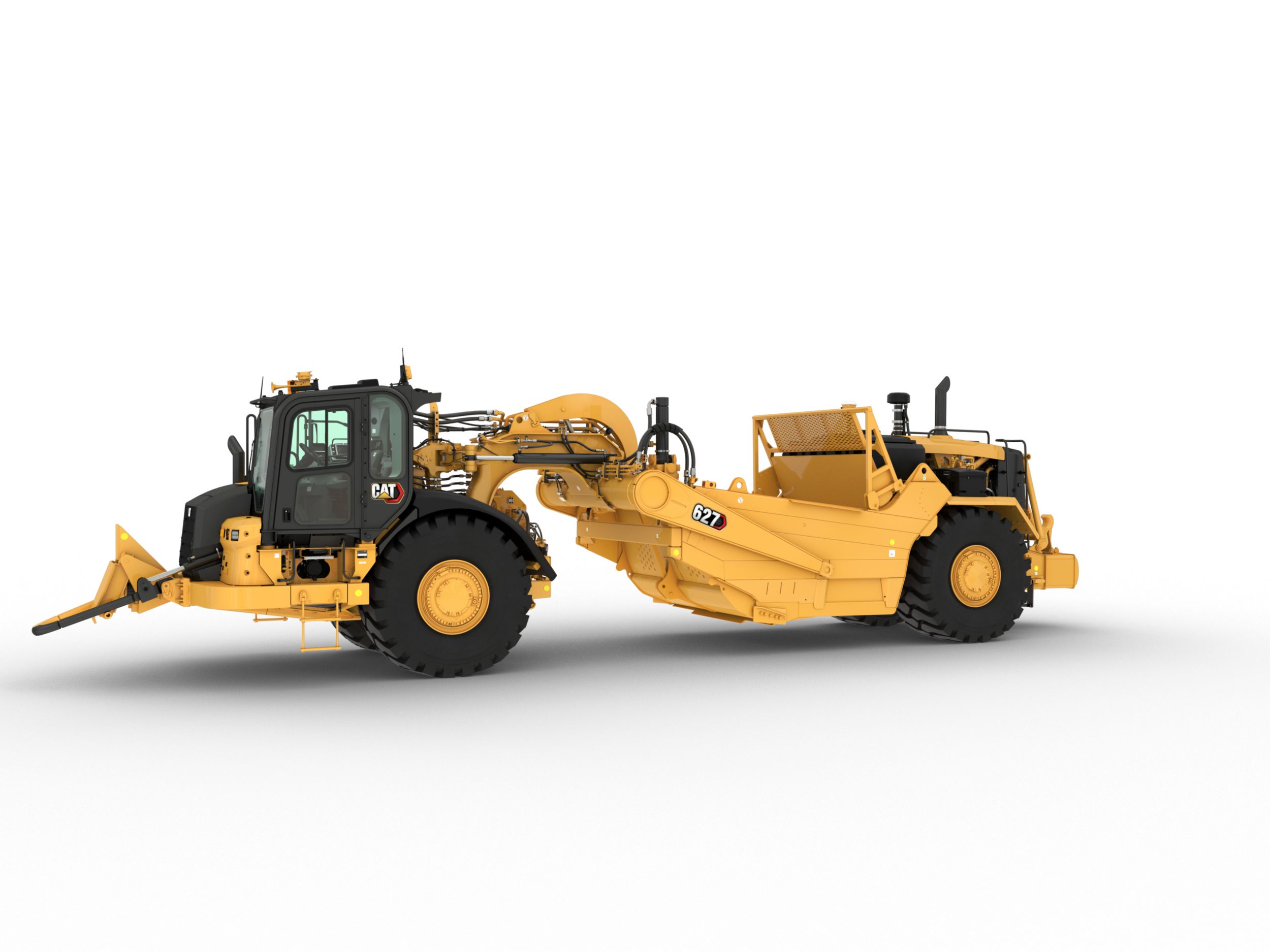

627 Wheel Tractor-Scraper

Standard Equipment

• NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
• POWER TRAIN – TRACTOR
  • Cat C13
  • Cat engine brake
  • Electric start, 24 Volt
  • Air cleaner, dry type with precleaner
  • Fan, hydraulic
  • Ground level engine shutdown
  • Radiator, aluminum unit core, 9 fins per inch
  • Guard, crankcase
  • Muffler (only for less or non-regulated regions engine arrangement only)
  • Starting aid, ether
  • Braking system:
    – Primary and secondary, wet disc, hydraulic
    – Parking, hydraulic-released, spring-applied
    – Throttle lock
  • Transmission:
    – 8-speed planetary power shift
    – ECPC control
    – APECS software
    – Programmable top gear selection
    – Transmission hold
    – Differential lock
    – Guard, power train
    – Standard tire spin reduction
    – Ground speed control
    – Machine speed limit
    – Differential lock protection
• POWER TRAIN – SCRAPER
  • Cat C9.3 engine with high pressure:
    – Common rail fuel
    – Cat engine brake
    – Electric start, 24 volt
    – Fan, driveline
    – Ground engine shutdown
    – Muffler (only for less or non-regulated regions engine arrangement only)
    – Starting aid, ether
  • Braking system:
    – Primary and secondary, wet disc, hydraulic
    – 4 speed (torque converter drive)
    – Transmission planetary powershift
• ELECTRICAL – TRACTOR
  • Alternator, 150 Amp
  • Batteries (4), 12V, 1,000 CCA, maintenance free, high output
  • Electrical system, 24V
  • Lighting system:
    – Headlights, 3×3 halogen
    – Turn signals with hazard function, LED floodlights, (2) 3×3 cutting edge (1) 3×3 bowl, halogen side vision (2) 3×3 halogen
  • Starting/charging receptacle
• ELECTRICAL – SCRAPER
  • Alarm, backup
  • Alternator, 65 Amp
  • Batteries (4), 12V, 1,000 CCA, maintenance free, high output
  • Lighting system:
    – Brake lights, LED
    – Turn signals with hazard function, LED
  • Starting/charging receptacle
• OPERATOR ENVIRONMENT – TRACTOR
  • HVAC system, heat, AC, defrost
  • Thermostat control of HVAC system
  • Coat hook
  • Lunchbox platform with holding strap
  • Diagnostic connection (2)
  • 12V power ports (2)
  • Differential lock (1)
  • Dome courtesy light
  • Horn, electric
  • T-Handle implement control
  • Mirror, rearview
  • Radio ready
  • ROPS/FOPS cab, pressurized
  • Keypad switches:
    – Rear engine start
    – Throttle lock
    – Wipers/washers
    – Hazard lights
    – Retarding level select
    – Work lights on, off
    – Information mode on Messenger Display
  • Safety tab rocker switches:
    – Regeneration control
    – Parking brake
  • Seat belt, static two-piece
  • Seat, Cat Advanced Ride Management (ARM), Cat Comfort Series 3, rotates 30 degrees
  • Steering wheel, tilt, telescoping, padded
  • Windows, right side emergency egress
  • Windows, sliding
  • Windows, laminated, zipped in
  • Windshield wipers, front and rear windows, includes washers
  • Door lock
  • Messenger Display
  • Gauges, warnings include:
    – Coolant temperature
    – Engine oil temperature
    – Hydraulic oil temperature
    – Fuel level
    – Park brake
    – Implement lockout
    – Brake system
    – Regeneration required
    – Throttle lock
    – System voltage
    – Secondary steering
    – Bail down
    – Differential lock
    – Apron float
    – Transmission hold
    – Cushion hitch
    – High beam lights
    – Action lamp
    – Engine speed, rpm
    – Gear selection
• FLUIDS
  • Extended Life Coolant to –37° C (–34° F)
• OTHER STANDARD EQUIPMENT – TRACTOR
  • Advanced cushion hitch
  • Accumulators (cushion hitch) with Canadian Registration Number (CRN)
  • Fast oil change
  • Fenders, non-metallic
  • Heater, engine coolant 120V
  • Rims (2)
  • Tow pin, front
  • Vandalism locks
  • Heater, engine coolant 120V
• OTHER STANDARD EQUIPMENT – SCRAPER
  • Bowl
    – 18.4 m³ (24 yd³), heaped
    – 14.1 m³ (18.4 yd³), struck
    – Fast oil change
    – Vandalism locks
    – Guard, overflow
    – Heater, engine coolant 120V
  • Hydraulic position sensing cylinders (bowl lift and apron)
• SPECIAL ARRANGEMENTS
  • Tractor/Scraper Arrangements
    – Push Pull Arrangement
  • Fueling Arrangements
    – Fast Fill Group

Optional Equipment

• NOTE
  • Standard and optional equipment may vary. Consult your Cat dealer for details.
• STEERING ARRANGEMENTS
  • Secondary Steering Arrangement
• INTEGRATED TECHNOLOGIES
  • Sequence Assist Arrangement
  • Load Assist
  • Cat Grade Control with Load Assist
  • Product Link™ Installation
• OTHER ATTACHMENTS
  • Camera arrangement – WAVS
  • Steering lock – external
  • Cab beacon
  • Air horn
  • Air horn and beacon
  • Wiring group
  • Year of manufacture plate
• WORK LIGHT ATTACHMENTS
  • HID work lights
• AMBIENT CAPABILITY ARRANGEMENTS
  • Cooling, high ambient HRC
  • Cooling, low ambient HRC
  • Cooling, high ambient LRC
  • Cooling, low ambient LRC
• CLEANER
  • Cab precleaner
• SERVICE INSTRUCTIONS
  • Film arrangement – U.S. (ANSI)
  • Film arrangement – International (ISO)
