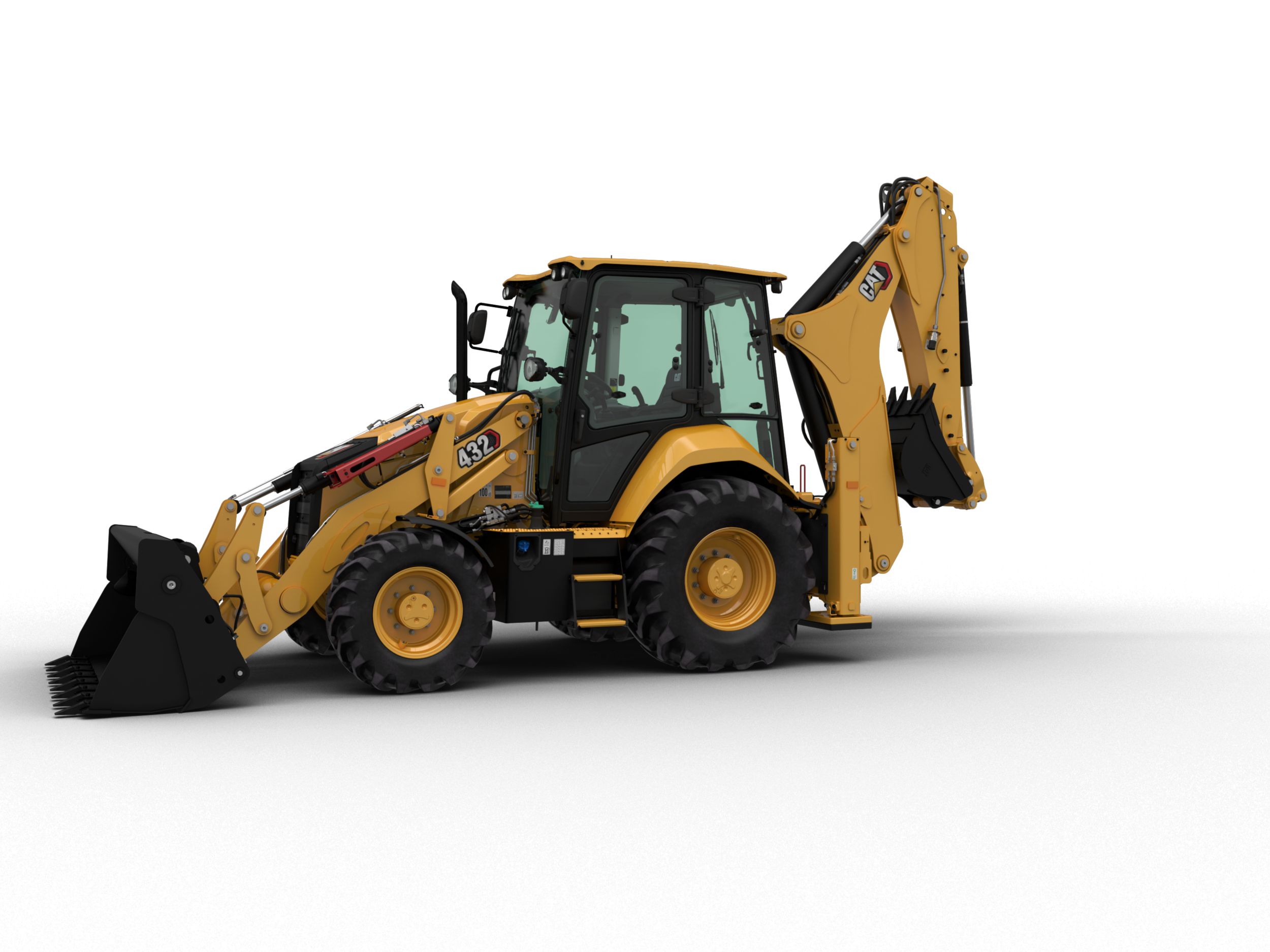

432 Backhoe Loader
Proven Cat® Engine
Powered with proven and reliable Cat® engine. There are two engine options available. Tier 2 equivalent 3054C engine and Tier 3 equivalent C4.4 engine, both with 74.5 kW power rating. All the options deliver superior performance with best in class fuel efficiency.
Operator Comfort and Control
Standard Pilot Hoe Controls provides smooth and comfort to operators. These controls mounted on fully adjustable pods offer the operator finer controls whilst giving improved ergonomics.
Powershift Transmission
The 4 speed powershift transmission, improves operator comfort by utilizing the Power Shuttle Lever to shift gears. There is no floor-mounted gear shift lever, improving the already spacious work environment.
Excavator Style Boom
The Excavator Style Boom is iconic to Cat BHL’s. This gives the operator more dig depth and reach when working around obstacles meaning less repositioning of the machine is required.
Powerful and Efficient Hydraulics
The load sensing and closed center hydraulic system actively matches power and flow to the demand and delivers best in class fuel efficiency and better component life. Flow sharing valves provide greater control and precision to the operation.
Power Management Modes
The operator can choose between Eco Mode, or Standard Mode dependent on job and site conditions. Eco mode will save the operator fuel, lowering their owning and operating costs.
Product Link™
Product Link™ comes as standard on Cat BHL’s (however, it depends on the local restrictions if any). Cat Product Link offers data like machine location, Service Meter Units (Hours) (SMU), etc.
| Engine | |
|---|---|
| Power - Net | 70 kW (95 hp) |
| Engine - Standard Offering Tier 2 Equivalent | |
|---|---|
| Bore | 105 mm (4.1 in) |
| Displacement | 4.4 l (269 inu00b3) |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 74.5 kW/101 hp |
| Net Torque - SAE J1349 | 397 N·m (293 lbf) |
| Power Rating Conditions - No De-Rating Required Up To | 2286 m (7500 ft) |
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 75 kW/102 hp |
| Torque Rise (net) | 31% @ 1,400 rpm |
| Net Power Rating at 2,200 rpm - ISO 9249 | 71 kW/96 hp |
| Net Power Rating at 2,200 rpm - SAE J1349 | 70 kW/95 hp |
| Stroke | 127 mm (5 in) |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Engine | 3054C 74.5 kW Mechanical Turbo |
| Engine - Optional Offering Tier 3 Equivalent | |
|---|---|
| Torque Rise (net) | 32% @ 1,400 rpm |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 74.5 kW/101 hp |
| Stroke | 127 mm (5 in) |
| Displacement | 4.4 l (269 inu00b3) |
| Net Torque - SAE J1349 | 398 N·m (294 lbf) |
| Net Power Rating at 2,200 rpm - ISO 9249 | 70 kW/95 hp |
| Power Rating Conditions - No De-Rating Required Up To | 2286 m (7500 ft) |
| Engine | C4.4 74.5 kW Electronic Turbo Intercooled |
| Bore | 105 mm (4.1 in) |
| Net Power Rating at 2,200 rpm - SAE J1349 | 69 kW/94 hp |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 76 kW/104 hp |
| Transmission - Powershift Transmission (Standard) | |
|---|---|
| Reverse - 3rd | 27.3 km/h (17 mile/h) |
| Forward - 1st | 6 km/h (3.7 mile/h) |
| Reverse - 1st | 6 km/h (3.7 mile/h) |
| Forward - 2nd | 9.5 km/h (5.9 mile/h) |
| Reverse - 2nd | 12.5 km/h (7.8 mile/h) |
| Forward - 4th | 40 km/h (24.9 mile/h) |
| Forward - 3rd | 19.8 km/h (12.3 mile/h) |
| Transmission - Auto-Shift Transmission (Optional) | |
|---|---|
| Reverse - 2nd | 12.5 km/h (7.8 mile/h) |
| Reverse - 3rd | 27.3 km/h (17 mile/h) |
| Forward - 1st | 6 km/h (3.7 mile/h) |
| Forward - 2nd | 9.5 km/h (5.9 mile/h) |
| Reverse - 1st | 6 km/h (3.7 mile/h) |
| Forward - 3rd | 12.5 km/h (7.8 mile/h) |
| Forward - 5th | 27.3 km/h (17 mile/h) |
| Forward - 4th | 19.8 km/h (12.3 mile/h) |
| Forward - 6th | 40 km/h (24.9 mile/h) |
| Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) | |
|---|---|
| Reverse - 3rd | 27.3 km/h (17 mile/h) |
| Forward - 4th | 19.8 km/h (12.3 mile/h) |
| Reverse - 2nd | 12.5 km/h (7.8 mile/h) |
| Forward - 6th | 40 km/h (24.9 mile/h) |
| Forward - 5th | 27.3 km/h (17 mile/h) |
| Forward - 2nd | 9.5 km/h (5.9 mile/h) |
| Forward - 3rd | 12.5 km/h (7.8 mile/h) |
| Forward - 1st | 6 km/h (3.7 mile/h) |
| Reverse - 1st | 6 km/h (3.7 mile/h) |
| Axle Ratings | |
|---|---|
| Rear Axle - Static | 26500 kg (58422 lb) |
| Front Axle (AWD) - Static | 23500 kg (51809 lb) |
| Rear Axle - Dynamic | 10000 kg (22046 lb) |
| Front Axle (AWD) - Dynamic | 9000 kg (19842 lb) |
| Weights | |
|---|---|
| Operating Weight - Nominal | 8444 kg (18616 lb) |
| Operating Weight - Maximum | 11000 kg (24251 lb) |
| Counterweights - Base | 115 kg (254 lb) |
| Counterweights - Maximum | 460 kg (1014 lb) |
| 4.3 m Extendible Stick - Excluding Front Counterweight | 199 kg (439 lb) |
| Ride Control | 15 kg (33 lb) |
| Operating Weight - ROPS Capacity - Maximum | 11000 kg (24251 lb) |
| Operating Weight | 8444 kg (18616 lb) |
| 4.9 m Extendible Stick - Excluding Front Counterweight | 355 kg (783 lb) |
| Loader, IT with Quick Coupler | 185 kg (408 lb) |
| Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - MP | 460 kg (1014 lb) |
| MP Bucket (1.03 mu00b3/1.3 ydu00b3) - with Fold-over Forks | 860 kg (1896 lb) |
| Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - GP | 460 kg (1014 lb) |
| Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - No QC - MP | 115 kg (254 lb) |
| MP Bucket (1.03 mu00b3/1.3 ydu00b3) - without Fold-over Forks | 611 kg (1347 lb) |
| Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - MP | 460 kg (1014 lb) |
| Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - IT Loader with QC - GP | 460 kg (1014 lb) |
| Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - GP | 240 kg (529 lb) |
| Counterweights - Stackable, One | 240 kg (529 lb) |
| Total Gross Weight Not to Exceed | 11000 kg (24251 lb) |
| Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - No QC - MP | 0 kg (0 lb) |
| Power-Shift Transmission | Standard |
| Cab - ROPS/FOPS | Standard |
| Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - IT Loader with QC - GP | 460 kg (1014 lb) |
| Note | Machine Configuration u2013 LRC 74.5 kW engine; 4.3 m standard stick hoe; standard cab with A/C; AWD powershift transmission; 1.03 mu00b3 MP loader bucket; 600 mm standard duty hoe bucket; 340/80-18 and 440/80-28 tires; no counterweight; 80 kg operator; full fuel tank. |
| Air Conditioning | Standard |
| Hydraulic System | |
|---|---|
| System Pressure - Backhoe | 250 bar (3626 psi) |
| System Pressure - Loader | 250 bar (3626 psi) |
| Pump Capacity @ 2,200 rpm | 187 l/min (49.4 gal/min) |
| Type | Closed Center |
| Pump Type | Variable-Flow, Axial Piston |
| Steering | |
|---|---|
| AWD Cylinder, One (1) Double Acting - Axle Oscillation | 11 mm (0.4 in) |
| Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket | 10.745 m (35.25 ft) |
| AWD Cylinder, One (1) Double Acting - Rod Diameter | 40 mm (1.6 in) |
| Turning Circle (inner wheel not braked) - Outside Front Wheels | 8.205 m (26.92 ft) |
| AWD Cylinder, One (1) Double Acting - Stroke | 106 mm (4.2 in) |
| AWD Cylinder, One (1) Double Acting - Bore | 65 mm (2.6 in) |
| Type | Front Wheel |
| Power Steering | Hydrostatic |
| Service Refill Capacities | |
|---|---|
| Rear Axle | 16 l (4.2 gal (US)) |
| Engine Oil - With Filter | 9 l (2.4 gal (US)) |
| Hydraulic System | 95 l (25.1 gal (US)) |
| Rear Axle - Planetaries | 1.7 l (0.4 gal (US)) |
| Front Axle (AWD) | 11 l (2.9 gal (US)) |
| Hydraulic Tank | 42 l (11.1 gal (US)) |
| Diesel Exhaust Fluid | 19 l (5 gal (US)) |
| Front Axle (AWD) - Planetaries | 0.7 l (0.2 gal (US)) |
| Cooling System - A/C | 18 l (4.8 gal (US)) |
| Fuel Tank | 160 l (42.3 gal (US)) |
| Transmission - Power Shuttle - AWD | 18 l (4.8 gal (US)) |
| Transmission (Powershift) - AWD | 19 l (5 gal (US)) |
| Transmission | |
|---|---|
| Note | Travel speeds of backhoe loader at full throttle, when equipped with 440/80-28 rear tires. |
Standard Equipment
- Cab ROPS and FOPS
- Cab, Standard
- Tires/Steering/Brakes
- All Wheel Drive
- 100% Differential Lock
- Hydraulic Boosted Brakes
- Tires 26 inch
- Engine/Transmission
- Engine Cat 3054C 74.5 kW
- Battery, 750 CCA, Standard
- Hinged Radiator Pack
- Forward-Neutral-Reverse (FNR) on Loader Lever
- Eco Mode
- Standard Mode
- Transmission Neutralizer
- Transmission, Four Speed Powershift
- Controls
- Controls, Pilot Joysticks
- Pattern Selector (ISO/SAE)
- Power Steering, Hydrostatic
- Hydraulics
- Variable Displacement Piston Pump
- Side Shift Lock
- Hydraulic Oil Cooler
- Loader Kickout, Float
- Loader Kickout, Return to Dig
- Continuous Flow
- Programmable Auxiliary Flow
- Booms, Sticks and Linkages
- Stick Standard, 4.3 m
- Transport Lock, Swing
- Transport Lock, Boom
- Other Attachments
- External Tool Box
- Transport Tie Downs
- Electrical
- Product Link Cellular
- Reversing Alarm
- Stabilizer Alarm
Optional Equipment
- Cab ROPS and FOPS
- Cab, Deluxe
- Tires/Steering/Brakes
- Tires 28 inch
- Engine/Transmission
- Engine C4.4 74.5 kW
- Battery, 750 CCA, Heavy Duty
- Engine Block Heater
- Transmission, Six Speed Automatic
- Transmission, Six Speed Automatic with LUTC
- Hydraulics
- Hydraulic Quick Disconnects
- Hydraulic Lines, One Way
- Hydraulic Lines, Two Way
- Powered Side Shift
- Ride Control
- Booms, Sticks and Linkages
- Stick Extending, 4.3 m
- Stick Extending, 4.9 m
- Hoe Quick Coupler, Mechanical
- Hoe Quick Coupler, Hydraulic
- Loader Quick Coupler, Hydraulic
- Other Attachments
- Counterweight, 115 kg
- Counterweight, 240 kg
- Counterweight, 460 kg
- Front Fenders
- Street Pads, Stabilizers
- Electrical
- Product Link Satellite
- Beacon, Rotating
- Beacon, Strobe
