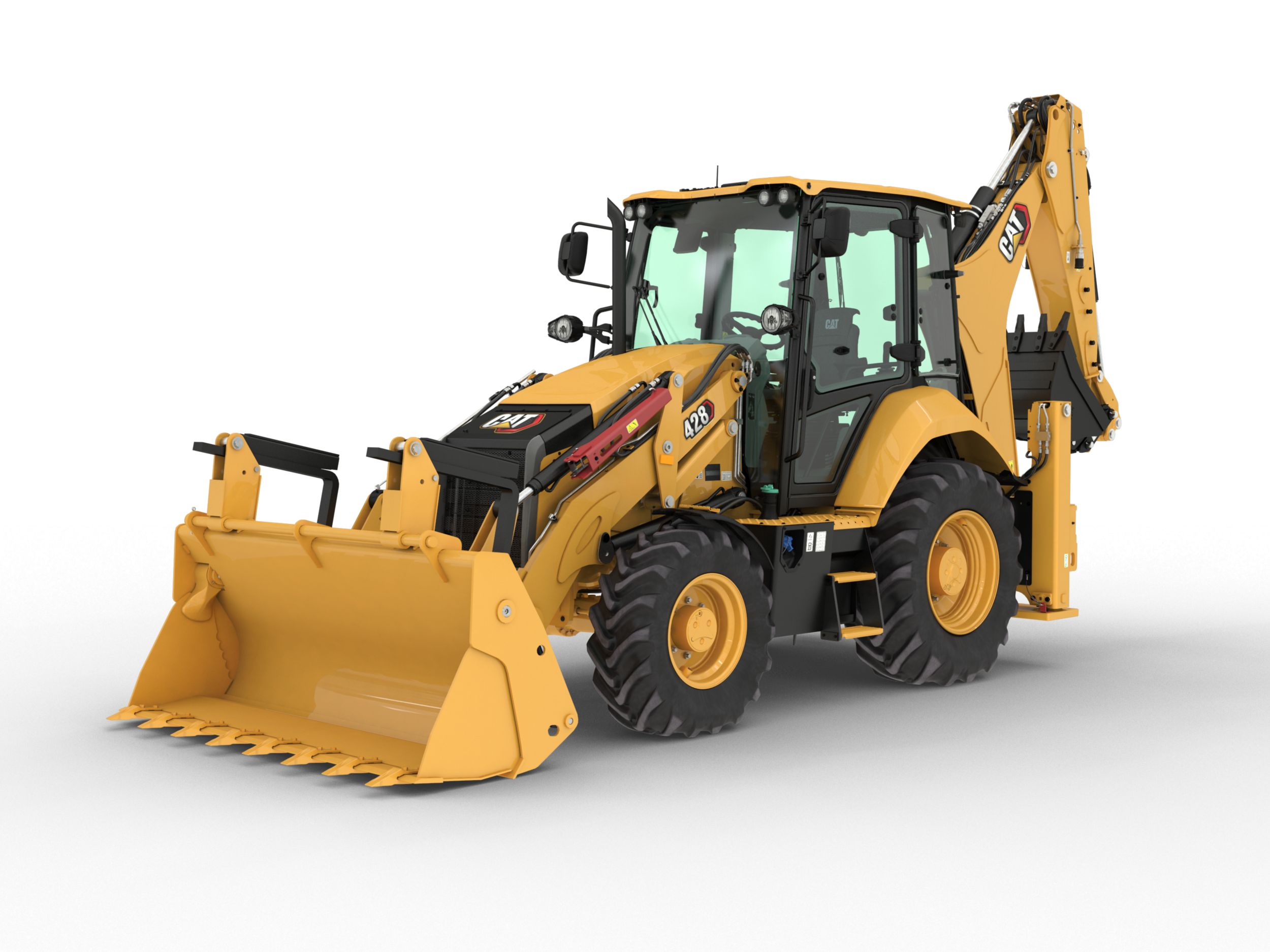

428 Backhoe Loader
Proven Cat® Engine
Powered with a proven and reliable Cat® engine. There are two power rating options for the Tier 2 equivalent Cat 3054C engine: 68.5 kW and 74.5 kW. For those requiring the Tier 3 equivalent C4.4 engine, again there are two power rating options: 70 kW and 74.5 kW. All the options deliver superior performance with best in class fuel efficiency.
Improved Operator Comfort
Pilot hoe controls are an optional upgrade on your 428. These controls mounted on fully adjustable pods offer the operator finer controls whilst giving improved ergonomics and comfort.
Greater Lifting Performance
The option of a larger boom cylinder will give greater lifting performance on the back of the 428 machine.
Powershift Transmission
The 4 speed powershift transmission, improves operator comfort by utilizing the Power Shuttle Lever to shift gears. There is no floor-mounted gear shift lever, improving the already spacious work environment.
Excavator Style Boom
The Excavator Style Boom is iconic to the Cat backhoe loader (BHL). This gives the operator more dig depth and reach when working around obstacles meaning less repositioning of the machine is required.
Powerful and Efficient Hydraulics
The load sensing and closed center hydraulic system actively matches power and flow to the demand and delivers best in class fuel efficiency and better component life. Flow sharing valves provide greater control and precision to the operation.
Product Link™
Product Link™ comes as standard on the Cat BHL depending on local restrictions. Cat Product Link offers data like machine location, Service Meter Units (Hours) (SMU), etc.
| Engine | |
|---|---|
| Power - Net | 64 kW (87 hp) |
| Engine - Standard Offering Tier 2 Equivalent | |
|---|---|
| Stroke | 127 mm (5 in) |
| Power Rating Conditions - No De-Rating Required Up To | 2286 m (7500 ft) |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 68 kW/93 hp |
| Torque Rise (net) - SAE J1349 Net | 384 N·m (283 lbf) |
| Bore | 105 mm (4.1 in) |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Torque Rise (net) | 38% @ 1,400 rpm |
| Displacement | 4.4 l (269 inu00b3) |
| Net Power Rating at 2,200 rpm - SAE J1349 | 64 kW/87 hp |
| Engine | 3054C 68.5 kW Mechanical Turbo |
| Net Power Rating at 2,200 rpm - ISO 9249 | 65 kW/88 hp |
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 69 kW/94 hp |
| Engine - Optional Offering Tier 2 Equivalent | |
|---|---|
| Engine | 3054C 74.5 kW Mechanical Turbo |
| Torque Rise (net) - SAE J1349 Net | 397 N·m (293 lbf) |
| Bore | 105 mm (4.1 in) |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Stroke | 127 mm (5 in) |
| Displacement | 4.4 l (269 inu00b3) |
| Net Power Rating at 2,200 rpm - SAE J1349 | 70 kW/95 hp |
| Power Rating Conditions - No De-Rating Required Up To | 2286 m (7500 ft) |
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 75 kW/102 hp |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 74 kW/101 hp |
| Net Power Rating at 2,200 rpm - ISO 9249 | 71 kW/96 hp |
| Torque Rise (net) | 31% @ 1,400 rpm |
| Engine - Optional Offering Tier 3 Equivalent | |
|---|---|
| Bore | 105 mm (4.1 in) |
| Net Power Rating at 2,200 rpm - ISO 9249 | 65 kW/89 hp |
| Power Rating Conditions - No De-Rating Required Up To | 2286 m (7500 ft) |
| Stroke | 127 mm (5 in) |
| Torque Rise (net) - SAE J1349 Net | 383 N·m (282 lbf) |
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 71 kW/97 hp |
| Torque Rise (net) | 37% @ 1,400 rpm |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Engine | C4.4 70 kW Mechanical Turbo Intercooled |
| Displacement | 4.4 l (269 inu00b3) |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 70 kW/95 hp |
| Net Power Rating at 2,200 rpm - SAE J1349 | 65 kW/88 hp |
| Engine - Optional Offering Tier 3 Equivalent - A | |
|---|---|
| Ratings at 2,200 rpm - Gross Power SAE J1995 | 76 kW/104 hp |
| Displacement | 4.4 l (269 inu00b3) |
| Torque Rise (net) | 32% @ 1,400 rpm |
| Torque Rise (net) - SAE J1349 Net | 398 N·m (294 lbf) |
| Ratings at 2,200 rpm - Gross Power ISO 14396 | 75 kW/101 hp |
| Net Power Rating at 2,200 rpm - ISO 9249 | 70 kW/95 hp |
| Bore | 105 mm (4.1 in) |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Stroke | 127 mm (5 in) |
| Net Power Rating at 2,200 rpm - SAE J1349 | 69 kW/94 hp |
| Power Rating Conditions - No De-Rating Required Up To | 2286 m (7500 ft) |
| Engine | C4.4 74.5 kW Mechanical u2013 Turbo Intercooled |
| Transmission - Power Shuttle Transmission (Standard) | |
|---|---|
| Reverse - 3rd | 21 km/h (13 mile/h) |
| Reverse - 4th | 37 km/h (23 mile/h) |
| Forward - 4th | 37 km/h (23 mile/h) |
| Forward - 3rd | 21 km/h (13 mile/h) |
| Reverse - 2nd | 9.2 km/h (5.7 mile/h) |
| Forward - 2nd | 9.2 km/h (5.7 mile/h) |
| Reverse - 1st | 5.6 km/h (3.5 mile/h) |
| Forward - 1st | 5.6 km/h (3.5 mile/h) |
| Transmission - Powershift Transmission (Optional) | |
|---|---|
| Reverse - 1st | 5.9 km/h (3.7 mile/h) |
| Forward - 2nd | 9.5 km/h (5.9 mile/h) |
| Reverse - 3rd | 27 km/h (16.8 mile/h) |
| Forward - 3rd | 20 km/h (12.4 mile/h) |
| Reverse - 2nd | 12.4 km/h (7.7 mile/h) |
| Forward - 4th | 40 km/h (24.9 mile/h) |
| Forward - 1st | 5.9 km/h (3.7 mile/h) |
| Transmission - Auto-Shift Transmission with Lock-Up Torque Converter (Optional) | |
|---|---|
| Reverse - 2nd | 12 km/h (7.5 mile/h) |
| Forward - 4th | 20 km/h (12.4 mile/h) |
| Forward - 5th | 27 km/h (16.8 mile/h) |
| Forward - 2nd | 9.5 km/h (5.9 mile/h) |
| Reverse - 1st | 5.9 km/h (3.7 mile/h) |
| Forward - 1st | 5.9 km/h (3.7 mile/h) |
| Forward - 3rd | 12 km/h (7.5 mile/h) |
| Reverse - 3rd | 27 km/h (16.8 mile/h) |
| Forward - 6th | 40 km/h (24.9 mile/h) |
| Axle Ratings | |
|---|---|
| Front Axle (AWD) - Dynamic | 9000 kg (19842 lb) |
| Front Axle (AWD) - Static | 23500 kg (51809 lb) |
| Rear Axle - Dynamic | 10000 kg (22046 lb) |
| Rear Axle - Static | 26500 kg (58422 lb) |
| Weights | |
|---|---|
| Operating Weight - Nominal | 8275 kg (18243 lb) |
| Operating Weight - Maximum | 11000 kg (24251 lb) |
| Operating Weight - ROPS Capacity - Maximum | 11000 kg (24251 lb) |
| Loader, IT with Quick Coupler | 185 kg (408 lb) |
| Auto-Shift Transmission | 105 kg (231 lb) |
| Ride Control | 15 kg (33 lb) |
| Counterweights - Base | 115 kg (254 lb) |
| Extendible Stick - Excludes Front Counterweight | 208 kg (459 lb) |
| Counterweights - Maximum | 460 kg (1014 lb) |
| MP Bucket (1.03 mu00b3/1.3 ydu00b3) - with Fold-over Forks | 860 kg (1896 lb) |
| Note | Machine Configuration u2013 standard LRC engine; standard stick hoe; standard cab with A/C; AWD standard shift transmission; 1.03 mu00b3 MP loader bucket; 610 mm standard duty hoe bucket; front 340/80-18 and rear 440/80-28 tires; no counterweight; 80 kg operator; full fuel tank. |
| Cab - ROPS/FOPS | STD |
| Counterweights - Stackable, One | 240 kg (529 lb) |
| MP Bucket (1.03 mu00b3/1.3 ydu00b3) - without Fold-over Forks | 674 kg (1486 lb) |
| Total Gross Weight Not to Exceed | 11000 kg (24251 lb) |
| Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - Parallel Lift - MP | 0 kg (0 lb) |
| Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - Parallel Lift - MP | 0 kg (0 lb) |
| Minimum Counterweight Recommendations - Extendible Stick - Loader Bucket - Parallel Lift - GP | 460 kg (1014 lb) |
| Minimum Counterweight Recommendations - Standard Stick - Loader Bucket - Parallel Lift - GP | 115 kg (254 lb) |
| Air Conditioning | STD |
| Operating Weight (estimated) | 8275 kg (18243 lb) |
| Hydraulic System | |
|---|---|
| System Pressure - Loader | 250 bar (3626 psi) |
| System Pressure - Backhoe | 250 bar (3626 psi) |
| Pump Capacity @ 2,200 rpm | 160 l/min (42.3 gal/min) |
| Type | Closed Center |
| Pump Type | Variable-Flow, Axial Piston |
| Steering | |
|---|---|
| AWD Cylinder, One (1) Double Acting - Bore | 65 mm (2.6 in) |
| AWD Cylinder, One (1) Double Acting - Stroke | 106 mm (4.2 in) |
| Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket | 10.745 m (35.25 ft) |
| AWD Cylinder, One (1) Double Acting - Rod Diameter | 40 mm (1.6 in) |
| AWD Cylinder, One (1) Double Acting - Axle Oscillation | 11 u00b0 (11 u00b0) |
| Turning Circle (inner wheel not braked) - Outside Front Wheels | 8.205 m (26.92 ft) |
| Type | Front Wheel |
| Power Steering | Hydrostatic |
| Service Refill Capacities | |
|---|---|
| Diesel Exhaust Fluid | 19 l (5 gal (US)) |
| Engine Oil - With Filter | 9 l (2.4 gal (US)) |
| Cooling System - A/C | 18 l (4.8 gal (US)) |
| Hydraulic System | 95 l (25.1 gal (US)) |
| Hydraulic Tank | 42 l (11.1 gal (US)) |
| Rear Axle - Planetaries | 1.7 l (0.4 gal (US)) |
| Fuel Tank | 160 l (42.3 gal (US)) |
| Front Axle (AWD) - Planetaries | 0.7 l (0.2 gal (US)) |
| Rear Axle | 16 l (4.2 gal (US)) |
| Front Axle (AWD) | 11 l (2.9 gal (US)) |
| Transmission - Power Shuttle - AWD | 18 l (4.8 gal (US)) |
| Transmission (Powershift) - AWD | 19 l (5 gal (US)) |
| Transmission | |
|---|---|
| Note | Travel speeds of backhoe loader at full throttle, when equipped with 440/80-28 rear tires. |
Standard Equipment
- Cab ROPS and FOPS
- Cab, Standard
- Tires/Steering/Brakes
- All Wheel Drive
- 100% Differential Lock
- Hydraulic Boosted Brakes
- Tires 26 inch
- Engine/Transmission
- Engine Cat 3054C 68.5 kW
- Battery, 750 CCA, Standard
- Hinged Radiator Pack
- Standard Mode
- Diff Lock
- Transmission Neutralizer
- Transmission, Four Speed Manual
- Transmission, Six Speed Automatic with LUTC
- Controls
- Controls, Mechanical Levers
- Power Steering, Hydrostatic
- Hydraulics
- Variable Displacement Piston Pump
- Side Shift Lock
- Hydraulic Oil Cooler
- Loader Kickout, Float
- Loader Kickout, Return to Dig
- Booms, Sticks and Linkages
- Stick Standard, 4.3 m
- Transport Lock, Swing
- Transport Lock, Boom
- Other Attachments
- External Tool Box
- Transport Tie Downs
- Electrical
- Product Link Cellular
- Reversing Alarm
- Stabilizer Alarm
Optional Equipment
- Cab ROPS and FOPS
- Canopy Plus
- Cab, Deluxe
- Tires/Steering/Brakes
- Tires 28 inch
- Engine/Transmission
- Engine Cat 3054C 74.5 kW
- Engine C4.4 70 kW
- Engine C4.4 74.5 kW
- Battery, 750 CCA, Heavy Duty
- Engine Block Heater
- Transmission, Four Speed Powershift
- Transmission, Six Speed Automatic
- Controls
- Controls, Pilot Joysticks
- Pattern Selector (ISO/SAE)
- Hydraulics
- Hydraulic Quick Disconnects
- Hydraulic Lines, One Way
- Hydraulic Lines, Two Way
- Powered Side Shift
- Ride Control
- Continuous Flow
- Programmable Auxiliary Flow
- Booms, Sticks and Linkages
- Stick Extending, 4.3 m
- Hoe Quick Coupler, Mechanical
- Hoe Quick Coupler, Hydraulic
- Loader Quick Coupler, Hydraulic
- Other Attachments
- Counterweight, 115 kg
- Counterweight, 240 kg
- Counterweight, 460 kg
- Front Fenders
- Street Pads, Stabilizers
- Electrical
- Product Link Satellite
- Beacon, Rotating
- Beacon, Strobe
