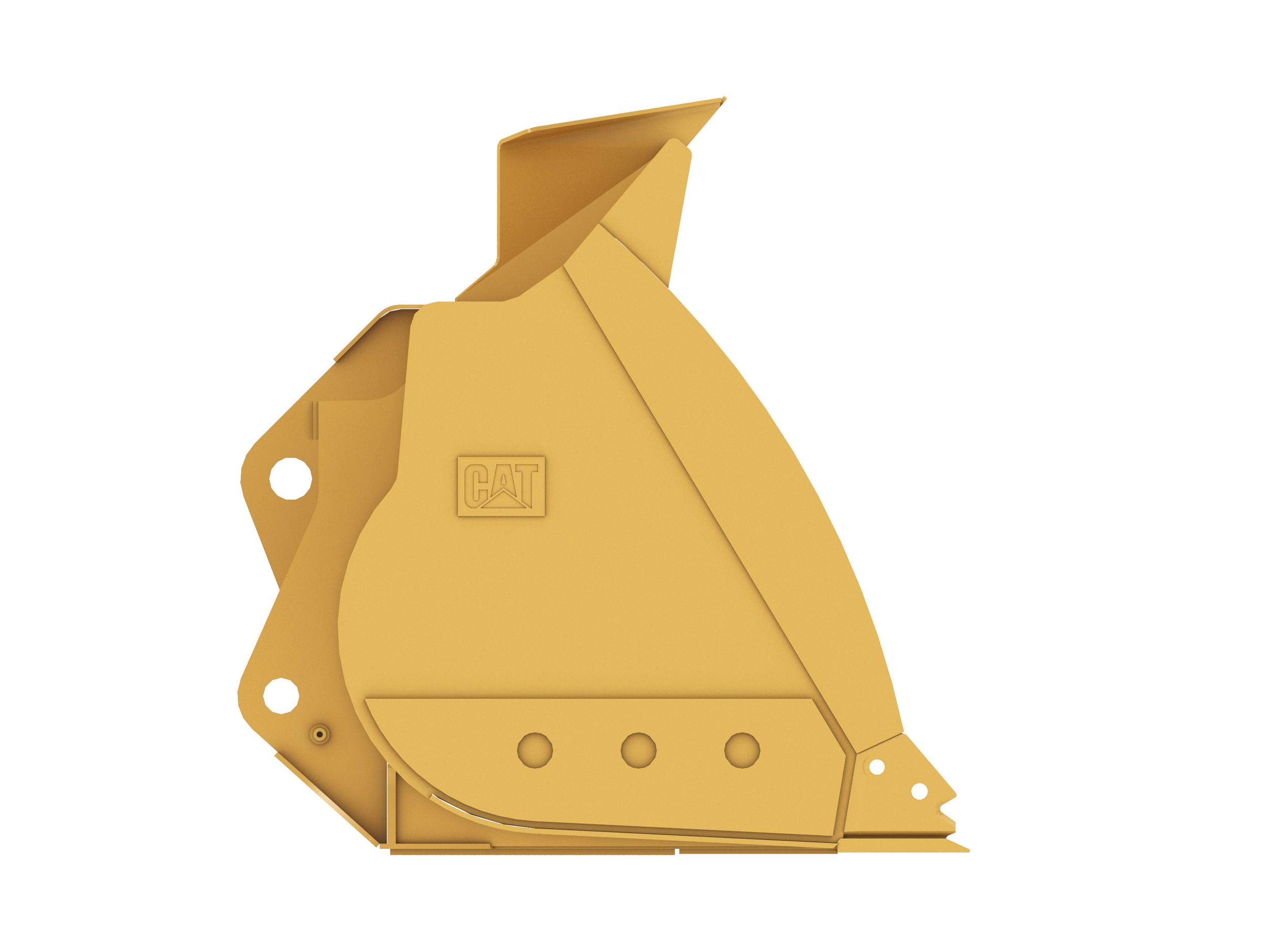

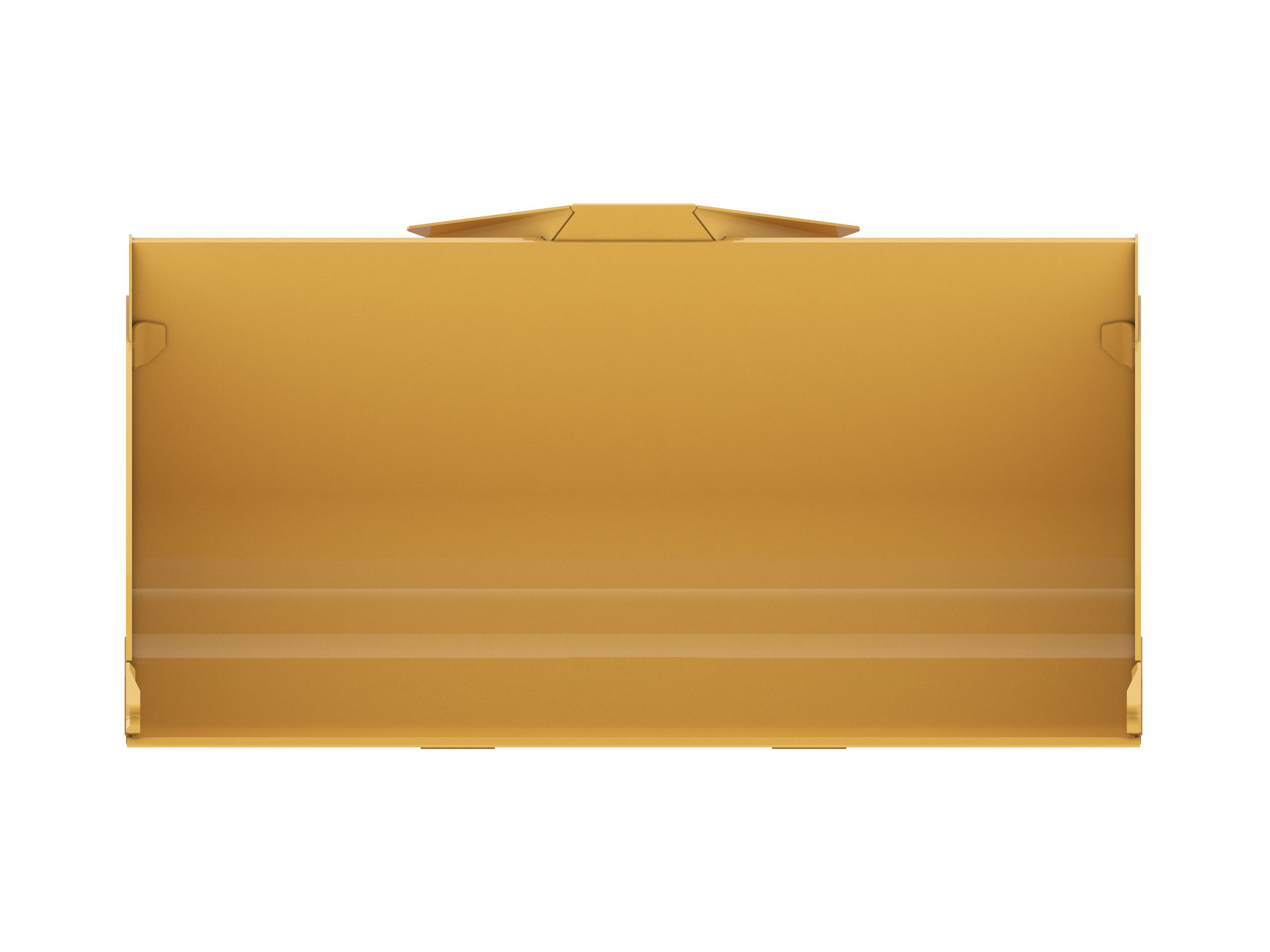

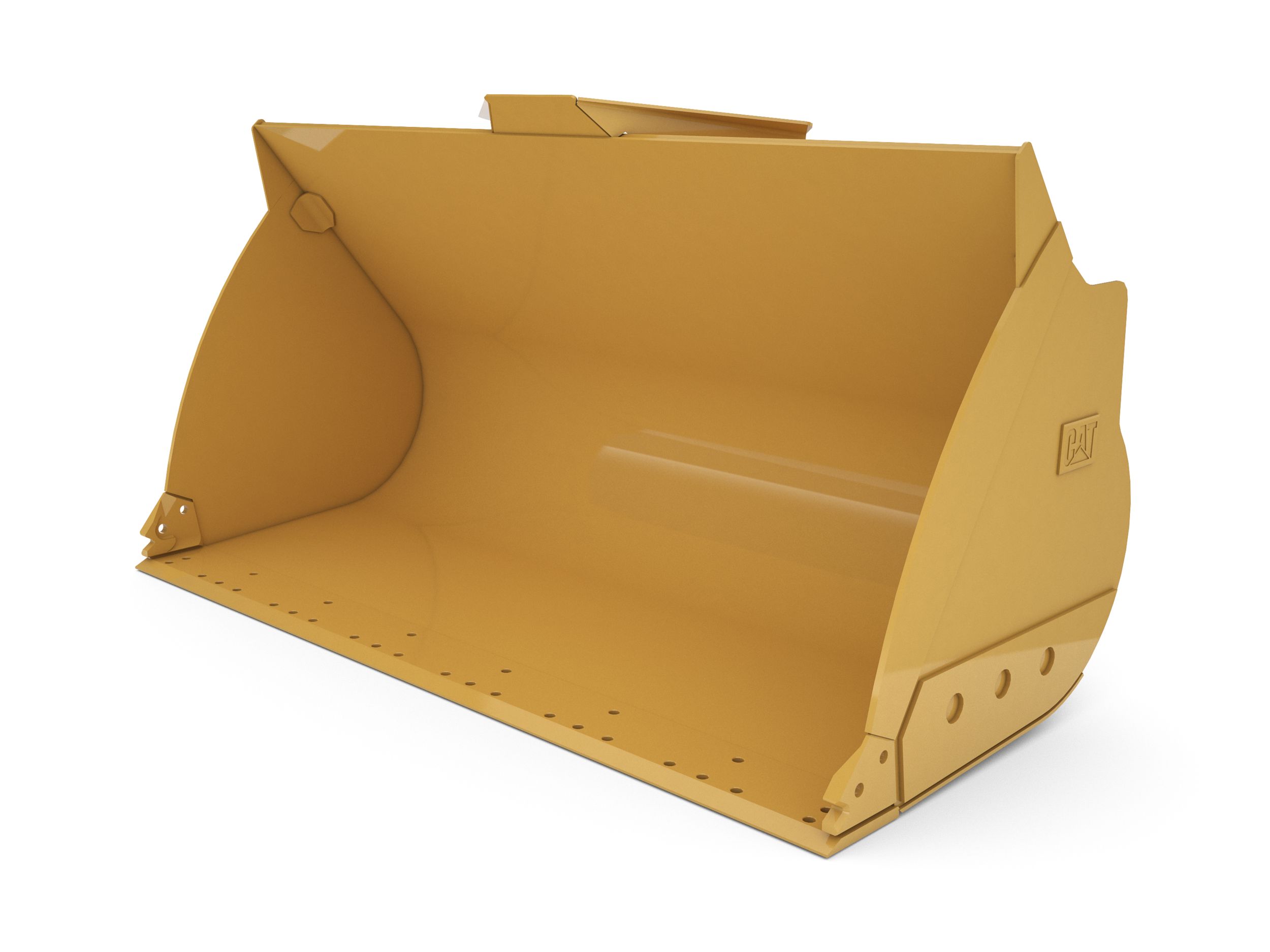

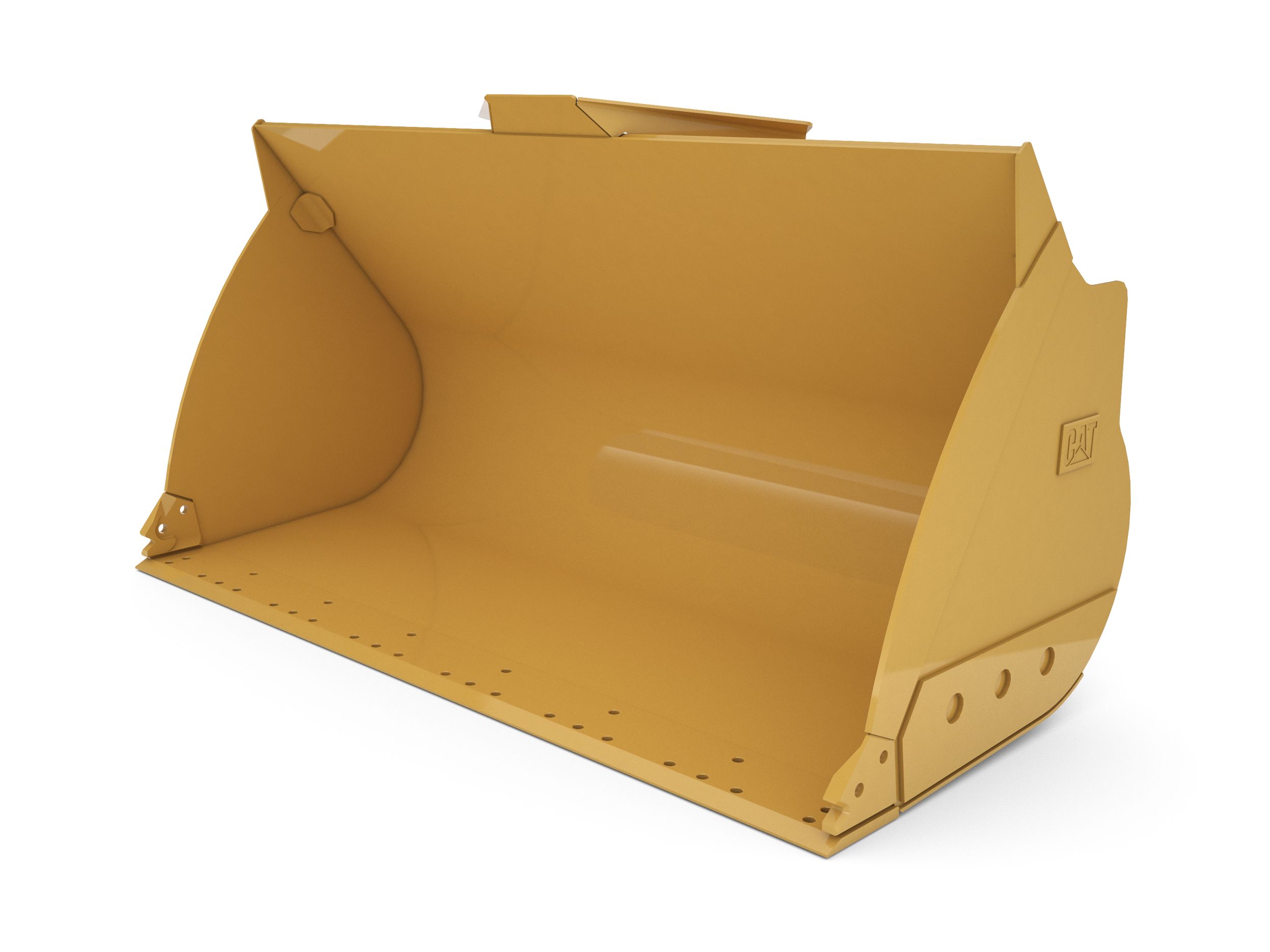

3.2 m3 (4.2 yd3) Pin On Sand and Gravel Bucket
Application
Ideal for aggregate handling in batch plant loader applications.
Rugged Design
Additional wear plates on bottom and sides of the bucket improves life of the bucket in coarse aggregate applications.
Performance Series Technology
Innovations in bucket designs that improve load-ability of buckets, increasing productivity and decreasing fuel costs.
Maximum Machine Usage
Bucket capacity and loading characteristics are matched to machine capabilities to ensure maximum usage and productivity.
Spill Guard
Spill guard prevents rock and other materials from spilling onto coupler interface and hydraulics.
| Product Specifications | |
|---|---|
| Width | 2750 mm (108.3 in) |
| Height | 1465 mm (57.7 in) |
| Weight | 1147 kg (2528.7 lb) |
| Length | 1414 mm (55.7 in) |
| Capacity | 3.2 mu00b3 (4.2 ydu00b3) |
| Base Edge Thickness | 25 mm (1 in) |
| Interface Type | Pin On |
