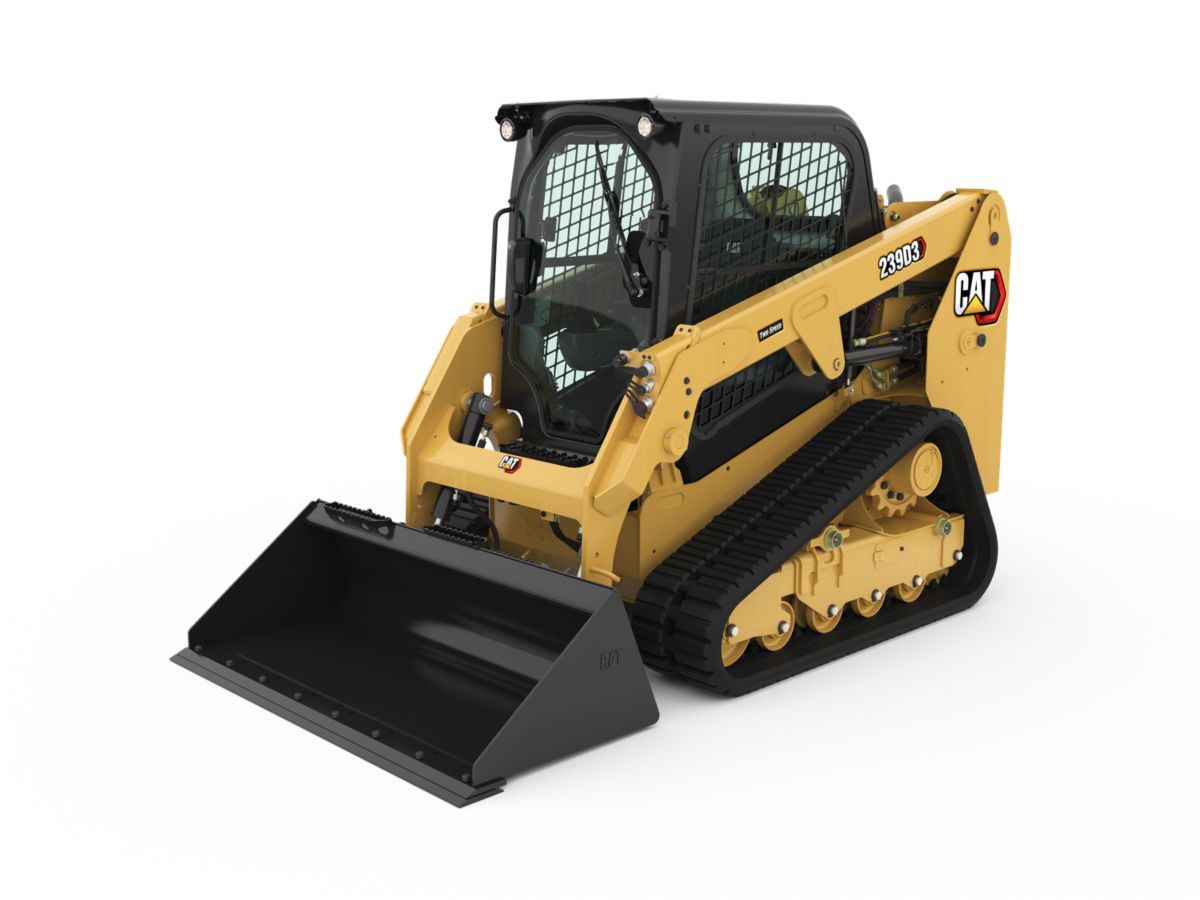

239D3 Compact Track Loader
Quiet and Comfortable
The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.
Maximum Performance
High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Making Your Job Easier
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.
A Smooth Ride
A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.
Optimized Machine Capability
Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
Sustainability
- The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
- Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
- Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.
| Engine | |
|---|---|
| Gross Power - SAE J1995 | 50.1 kW (67.1 hp) |
| Operating Specifications | |
|---|---|
| Rated Operating Capacities - 35% Tipping Load | 695 kg (1530 lb) |
| Weights | |
|---|---|
| Operating Weight | 3372 kg (7434 lb) |
| Dimensions | |
|---|---|
| Vehicle Width (320 mm/12.6 in tracks) | 1676 mm (66 in) |
| Ground Clearance | 195 mm (7.7 in) |
| Length - With Bucket on Ground | 3234 mm (127.3 in) |
| Length - Without Bucket | 2522 mm (99.3 in) |
| Maximum Reach - With Arms Parallel to Ground | 1356 mm (53.4 in) |
| Turning Radius from Center - Bucket | 2069 mm (81.5 in) |
| Overall Length - Track | 1808 mm (71.2 in) |
| Reach - Maximum Lift/Dump | 563 mm (22.2 in) |
| Vehicle Width (400 mm/15.7 in tracks) | 1756 mm (69.1 in) |
| Maximum Overall Height | 3645 mm (143.5 in) |
| Bucket Pin Height - Carry Position | 218 mm (8.6 in) |
| Length - Track on Ground | 1384 mm (54.5 in) |
| Clearance at Maximum Lift and Dump | 2057 mm (81 in) |
| Bucket Pin Height - Maximum Lift | 2825 mm (111.2 in) |
| Departure Angle | 34.5u00b0 |
| Rack Back Angle - Maximum Height | 85.5u00b0 |
| Turning Radius from Center - Coupler | 1159 mm (45.6 in) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
| Height - Top of Cab | 2034 mm (80.1 in) |
| Maximum Dump Angle | 50.3u00b0 |
| Turning Radius from Center - Machine Rear | 1458 mm (57.4 in) |
| Operating Specifications | |
|---|---|
| Tipping Load | 1985 kg (4370 lb) |
| Breakout Force - Tilt Cylinder | 1775 kg (3913 lb) |
| Rated Operating Capacity with Optional Counterweight | 1090 kg (2400 lb) |
| Ground Contact Area - With 320 mm/12.6 in Track | 0.89 mu00b2 (1373 inu00b2) |
| Ground Pressure - With 320 mm/12.6 in Track | 37.3 kPa (5.4 psi) |
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
| Ground Contact Area - With 400 mm/15.7 in Track | 1.11 mu00b2 (1716 inu00b2) |
| Ground Pressure - With 400 mm/15.7 in Track | 30.6 kPa (4.4 psi) |
| Hydraulic System | |
|---|---|
| Hydraulic Flow - High Flow - Loader Hydraulic Flow | 99 l/min (26 gal/min) |
| Hydraulic Flow - Standard - Loader Hydraulic Pressure | 23000 kPa (3336 psi) |
| Hydraulic Flow - Standard - Loader Hydraulic Flow | 69 l/min (18 gal/min) |
| Hydraulic Flow - High Flow - Loader Hydraulic Pressure | 23000 kPa (3336 psi) |
| Hydraulic Flow - High Flow - Hydraulic Power (Calculated) | 38 kW (50.9 hp) |
| Hydraulic Flow - Standard - Hydraulic Power (Calculated) | 26.5 kW (35.5 hp) |
| Cab | |
|---|---|
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level I |
| Power Train | |
|---|---|
| Travel Speed - Forward or Reverse - Two Speed | 12.2 km/h (7.6 mile/h) |
| Travel Speed - Forward or Reverse - One Speed | 8.1 km/h (5 mile/h) |
| Service Refill Capacities | |
|---|---|
| Cooling System | 12 l (3.2 gal (US)) |
| Engine Crankcase | 10 l (2.6 gal (US)) |
| Fuel Tank | 57 l (15.1 gal (US)) |
| Hydraulic System | 45 l (11.9 gal (US)) |
| Hydraulic Tank | 34 l (9 gal (US)) |
| Engine | |
|---|---|
| Displacement | 2.2 l (134.3 inu00b3) |
| Bore | 84 mm (3.3 in) |
| Stroke | 100 mm (3.9 in) |
| Weights | |
|---|---|
| Note | Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted). |
| Operating Specifications | |
|---|---|
| Rated Operating Capacities - 50% Tipping Load | 995 kg (2185 lb) |
| Engine | |
|---|---|
| Peak Torque - 1,500 rpm - SAE J1995 | 208 N·m (153 ft·lbf) |
| Net Power - SAE 1349 | 49.1 kW (65.8 hp) |
| Noise Level | |
|---|---|
| Note (2) | **The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. |
| Engine | |
|---|---|
| Net Power - ISO 9249 | 49.6 kW (66.5 hp) |
| Noise Level | |
|---|---|
| Outside Cab*** | 103 dB(A) (103 dB(A)) |
| Note (3) | ***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC. |
| Note (1) | Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe. |
| Engine | |
|---|---|
| Engine Model | Cat C2.2 CRDI |
| Net Power | 49.1 kW (65.8 hp) |
| Noise Level | |
|---|---|
| Inside Cab** | 83 dB(A) (83 dB(A)) |
| Air Conditioning System (if equipped) | |
|---|---|
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes. |
Standard Equipment
- ELECTRICAL
- 12 volt Electrical System
- 80 ampere Alternator
- Ignition Key Start/Stop Switch
- Lights: Gauge Backlighting, Two Rear Tail Lights, Two Adjustable Front and Rear Halogen Lights, Dome Light
- Backup Alarm
- Heavy Duty Battery, 850 CCA
- OPERATOR ENVIRONMENT
- Gauges: Fuel Level, Hour Meter
- Operator Warning System Indicators: Air Filter Restriction, Alternator Output, Armrest Raised/Operator Out of Seat, Engine Coolant Temperature, Engine Oil Pressure, Glow Plug Activation, Hydraulic Filter Restriction, Hydraulic Oil Temperature, Park Brake Engaged
- Adjustable Vinyl Seat
- Fold In Ergonomic Contoured Armrest
- Control Interlock System, when operator leaves seat or armrest raised: Hydraulic System Disables, Hydrostatic Transmission Disables, Parking Brake Engages
- ROPS Cab, Open, Tilt Up
- FOPS, Level I
- Top and Rear Windows
- Floor Mat
- Interior Rearview Mirror
- 12 volt Electric Socket
- Horn
- Hand (Dial) Throttle, Electronic
- Adjustable Joystick Controls
- Anti-theft Security System with 6-button Keypad
- Storage Compartment with Netting
- POWER TRAIN
- Cat C2.2, Turbo Diesel Engine, Meeting Tier 4 Final and Stage V emission standards
- Air Cleaner, Dual Element, Radial Seal
- S·O·SSM Sampling Valve, Hydraulic Oil
- Filters, Cartridge-type, Hydraulic
- Filters, Canister-type, Fuel and Water Separator
- ATAAC/Radiator/Hydraulic Oil Cooler (side-by-side)
- Spring Applied, Hydraulically Released Parking Brakes
- Hydrostatic Transmission, Two Speed Travel
- Suspension – Independent Torsion Axles (4)
- OTHER
- Engine Enclosure, Lockable
- Extended Life Antifreeze, –36° C (–33° F)
- Machine Tie Down Points (6)
- Support, Lift Arm
- Hydraulic Oil Level Sight Gauge
- Radiator Coolant Level Sight Gauge
- Radiator, Expansion Bottle
- Cat ToughGuard™ Hose
- Auxiliary, Hydraulics, Continuous Flow
- Heavy Duty, Flat Faced Quick Disconnects with Integrated Pressure Release
- Split D-Ring to Route Work Tool Hoses Along Side of Left Lift Arm
- Electrical Outlet, Beacon
- Belly Pan Cleanout
- Variable Speed Demand Fan
- Product Link™ PL240, Cellular
- MANDATORY EQUIPMENT
- Hydraulics, Standard or High Flow
- Quick Coupler, Mechanical or Powered
- High Visibility Seat Belt, 50 mm (2 in) or 75 mm (3 in)
- EU Preparation Package (Europe only)
- Steel Imbed Rubber Track – 320 mm (12.6 in) Block Tread or 400 mm (15.7 in) Bar Tread
- Dual Flange Front Idler/Single Flange Rear Idler
- PERFORMANCE PACKAGES:
– Performance Package H1: Standard Flow Hydraulics (No Self Level)
– Performance Package H2: Standard Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower)
– Performance Package H3: High Flow Hydraulics, Dual Direction Electronic Self Level (Raise and Lower), Work Tool Return to Dig, Work Tool Positioner, and Electronic Snubbing (Raise and Lower) - COMFORT PACKAGES:
– Open ROPS (C0): Static Seat (No Foot Throttle, Headliner, Heater or Door)
– Open ROPS (C1): Foot Throttle, Headliner, Cup Holder, and choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) (No Heater or Door)
– Enclosed ROPS with Heater (C2): Foot Throttle, Headliner, Heater and Defroster, Side Windows, Cup Holder, Radio Ready, choice of Seat (Mechanical Suspension or High Back, Heated, Air Ride Seat) and Door (Glass or Polycarbonate)
– Enclosed ROPS with A/C (C3): C2 + Air Conditioner
Optional Equipment
-
- Hand-Foot Style Controls
- External Counterweights
- Beacon, Rotating
- Engine Block Heater – 120V
- Oil, Hydraulic, Cold Operation
- Paint, Custom
- Product Link PL641, Cellular
- Ride Control
- Advanced Display with Rearview Camera: Full Color, 127 mm (5 in) LCD screen, Advanced Multi-operator Security System, On-screen Adjustments for Implement Response, Hystat Response and Creep Control
- Work Tool Return to Dig and Work Tool Positioner
- Bluetooth® Radio with Microphone (AM/FM/Weather Band Receiver with USB and Auxiliary Input Jack)
