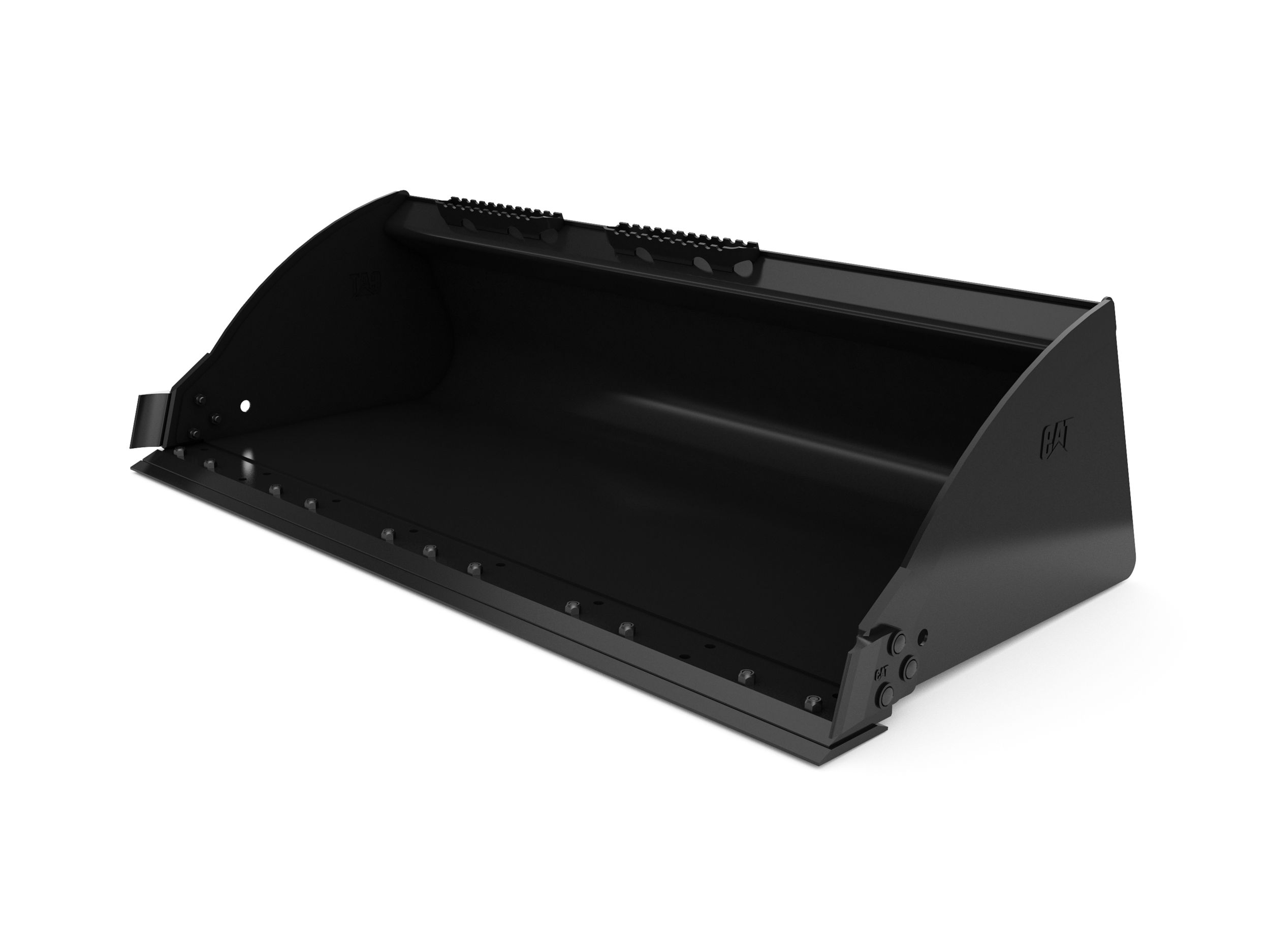

1883 mm (74 in) Industrial Performance Bucket with Bolt-on cutting edge
Application
Designed for loading, carrying and dumping in a variety of applications and materials. These buckets are ideal for construction and industrial applications.
Optimum Bucket Geometry
Low back height profile and long floor length result in excellent visibility to the front cutting edge and front corners, and superior loading and dumping.
Full Length Skid Bars
Full length skid bars provide additional floor rigidity and wear resistance.
Rugged Design
Hardened steel base and side cutting edges provide excellent penetration, durability and wear life.
Integrated Steps
Integrated steps make it easier for the operator to enter/exit the cab.
Ground Engaging Tool Options
Base bucket also available with bolt-on cutting edge, bolt-on teeth and bolt-on tooth bar.
| Product Specifications | |
|---|---|
| Width | 1883 mm (74.1 in) |
| Capacity | 0.57 mu00b3 (0.75 ydu00b3) |
| Weight | 336 kg (740.8 lb) |
| Height | 566 mm (22.3 in) |
| Length | 1022 mm (40.2 in) |
| Base Edge Thickness | 19 mm (0.7 in) |
| Cutting Edge Thickness | 16 mm (0.6 in) |
| Sidewall Thickness | 5 mm (0.2 in) |
| Interface Type | Skid Steer Coupler |
